Hager BB1199 4.5" x 4.5" Heavy Weight Ball Bearing Hinge

Price:

$ 59.16
  2. Shop
  3. Hager BB1199 4.5" x 4.5" Heavy Weight Ball Bearing Hinge
Hager ECBB1101 NRP 4.5" x 4.5" Ball Bearing Hinge
Hager ECBB1101 NRP 4.5" x 4.5" Ball Bearing Hinge
$ 31.42
$ 31.42
Hager BB1199 NRP 4.5" x 4.5" Heavy Weight Ball Bearing Hinge
Hager BB1199 NRP 4.5" x 4.5" Heavy Weight Ball Bearing Hinge
$ 62.04
$ 62.04

Hager BB1199 4.5" x 4.5" Heavy Weight Ball Bearing Hinge

https://www.doorwaysplus.com/web/image/product.template/803/image_1920?unique=2c8e037

Hager BB1199 4 1/2 x 4 1/2 Ball Bearing Hinge, 5 Knuckle, Non Ferrous

$ 59.16 59.160000000000004 USD $ 59.16

$ 59.16

Not Available For Sale

  • General - US Finishes
  • Brand
  • Hinge Height
  • Hinge Width
  • Hinge Grade/Thickness
  • Hinge Type
  • Hinge Options
  • Base Material
  • Base Material
  • Hinge Corners

This combination does not exist.

Contact Us
Share :

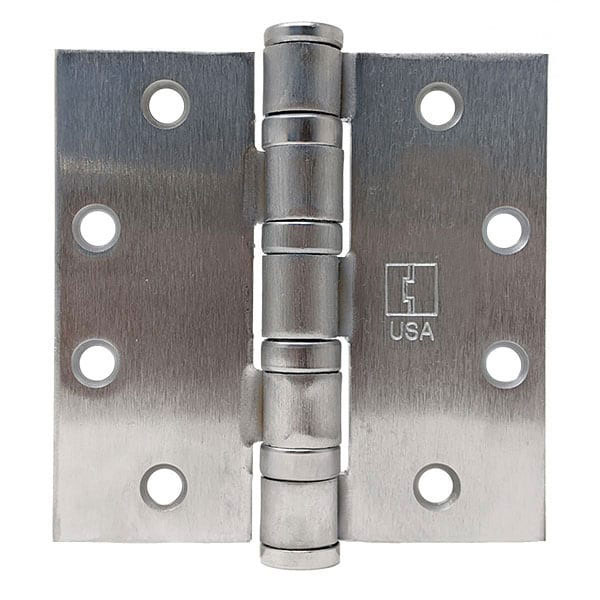

Hager BB1199 4 1/2 x 4 1/2 Full Mortise - Ball Bearing Hinge, Heavy Weight


 **** Non Ferrous Material - Brass with plated finish or Stainless Steel ****


  • Furnished standard with 1/2 wood screws (1 1/4" x 12 FPHW) and All machine screws (1/2" 12-24 FPHM)
  • Hinges are .180 thickness, For 1 3/4" door thickness. For use on heavy weight doors or doors requiring high frequency service.
  • Non-rising removable pin with button tip and plug
  • Four ball bearings

Material:

  • Brass with Stainless Steel pin - ANSI A2111 (US10B, US26D)
  • Stainless Steel with Stainless Steel pin - ANSI A5111

Hager Companies standard grade stainless steel is type 304L


Please Note: Hinges with Brass base material are not allowed on UL Fire Rated Door Openings.


General - US Finishes US26D - Satin Chrome or US32D - Satin Stainless Steel/ 630 or US10B - Oil Rubbed Bronze
Brand Hager
Hinge Height 4.5" Hi
Hinge Width 4.5" Wi
Hinge Grade/Thickness Heavy Wt .180 to .190
Hinge Type Full Mortise
Hinge Options Ball Bearing
Base Material Stainless Steel, Brass
Hinge Corners Square
