Hager EC1100 NRP 4.5" x 4.5" Plain Bearing Hinge

https://www.doorwaysplus.com/web/image/product.template/791/image_1920?unique=2eb7fb8

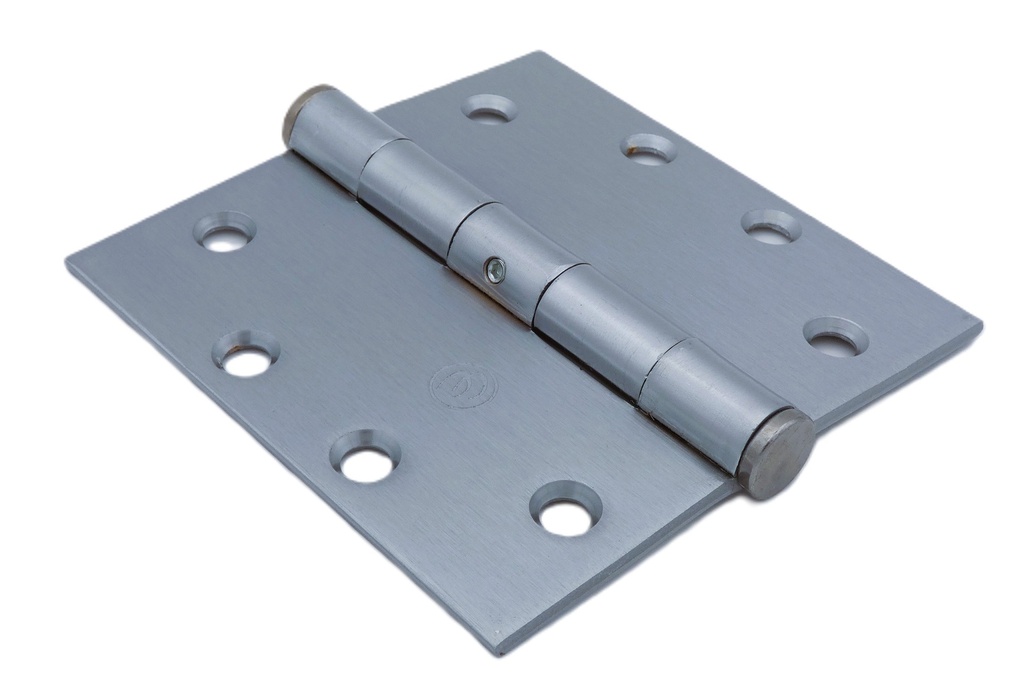

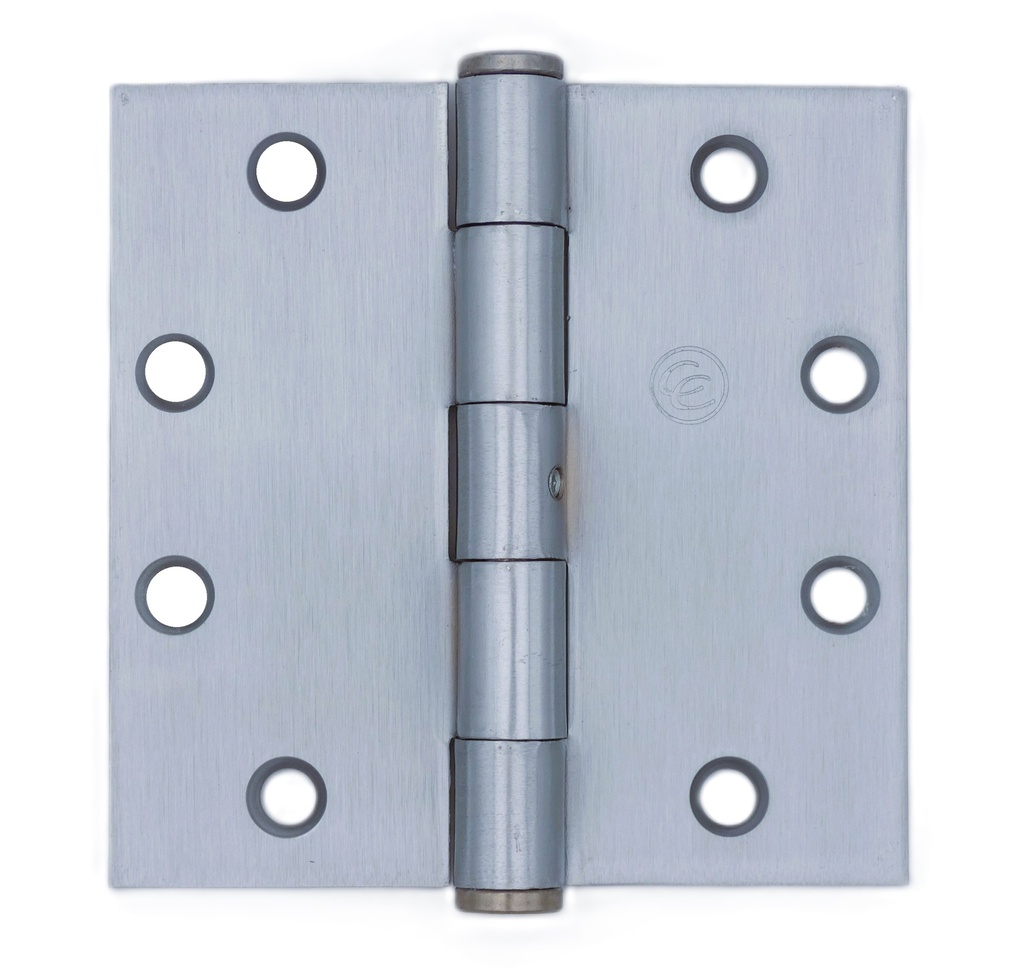

Hager Ecco EC1100 NRP 4 1/2 x 4 1/2 Plain Bearing Hinge, 5 Knuckle, Steel

$ 9.64 9.64 USD $ 9.64

$ 7.14

Not Available For Sale

  • General - US Finishes
  • Brand
  • Hinge Height
  • Hinge Width
  • Hinge Grade/Thickness
  • Hinge Type
  • Hinge Options
  • Hinge Options
  • Base Material
  • Hinge Corners

This combination does not exist.

Contact Us
Share :

Hager Ecco EC1100 NRP 4 1/2 x 4 1/2 Full Mortise - Plain Bearing Hinge, Steel with plated finish


  • Furnished standard with All wood screws (1 1/4" x 12 FPHW) and All machine screws (1/2" 12-24 FPHM)
  • Hinges are .134 thickness, For 1 3/4" door thickness. For use on medium weight doors or doors requiring low frequency service.

Stock finishes include USP (prime for paint) & US26D. Other finishes available by quote include: US3, US4, US10B, US15, & US26.

Material:

  • Steel with Steel pin
  • Non-rising removable pin with button tip and plug
  • Doors with closers should use ball bearing hinges

ANSI A8133

Understanding NRP Hinges

The NRP (Non-Removable Pin) feature is a crucial innovation in the world of door hardware. Here's why it's an essential aspect of secure door installations:

  1. Enhanced Security:
    The primary purpose of the NRP is to prevent unauthorized removal of door hinges from the outside. This is vital for exterior doors or any doors where security is a concern. The non-removable pin ensures that even if someone tries to tamper with the hinges, they can't simply remove the pin and detach the door.
  2. Optimal for Outward Swinging Doors:
    Many commercial and residential doors swing outward, which means the hinge pins are accessible from outside. This makes them vulnerable to intruders. The NRP feature effectively mitigates this risk by securing the hinge pin.
  3. Durability and Peace of Mind:
    With the NRP option, door users can enjoy greater peace of mind. The pin is designed to withstand tampering, offering long-term durability and reliability without compromising on the aesthetics or functionality of the door.

By opting for hinges with an NRP feature, you ensure a higher level of security that safeguards against forced entries through hinge manipulation.

When exploring these options, consider the specific requirements of your project, whether it's for residential or commercial use. Each of these types


General - US Finishes US26D - Satin Chrome or USP - Prime Painted
Brand Hager
Hinge Height 4.5" Hi
Hinge Width 4.5" Wi
Hinge Grade/Thickness Standard Wt .119 to .146
Hinge Type Full Mortise
Hinge Options Plain Bearing, NRP (Non Removable Pin)
Base Material Steel
Hinge Corners Square
