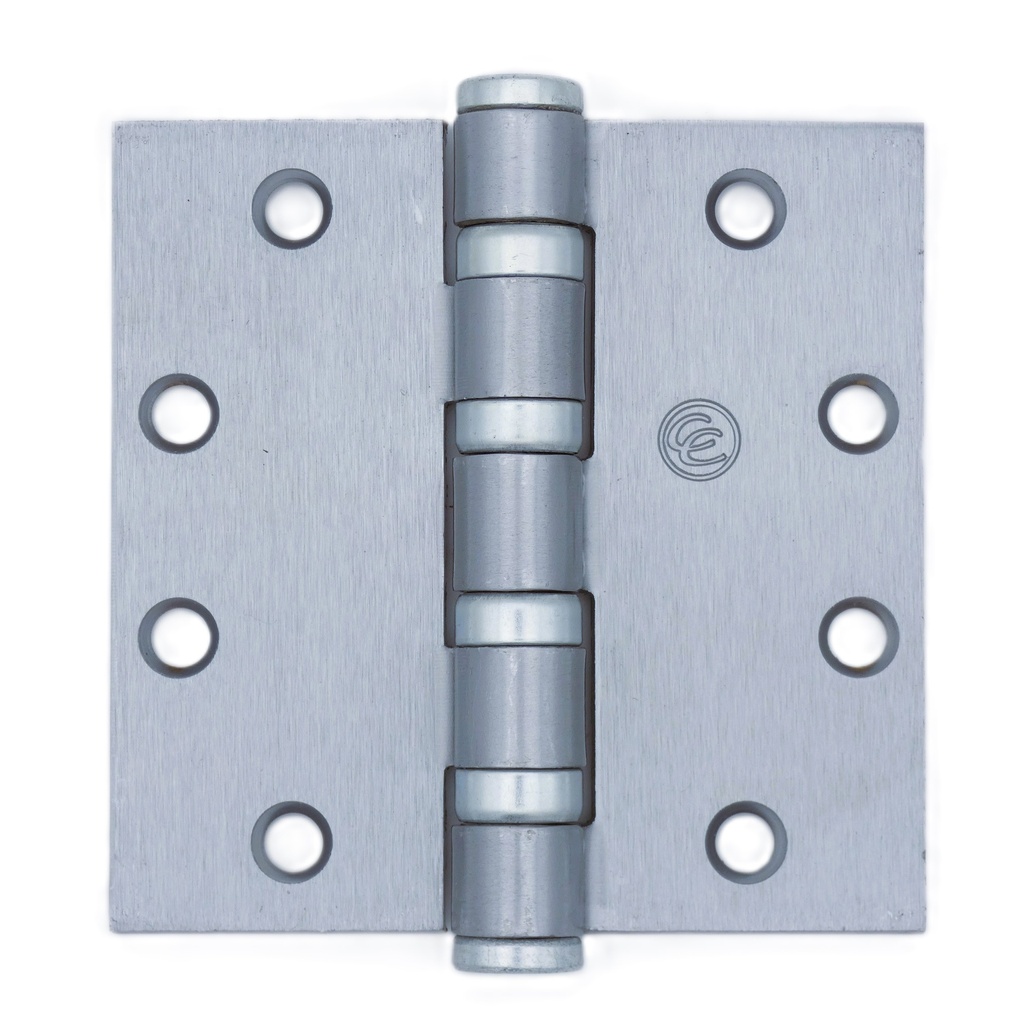

Hager Ecco ECBB1102 4 1/2 x 4 1/2 Full Mortise - Ball Bearing Hinge, Heavy Weight, Steel with plated finish
- Furnished standard with 1/2 wood screws (1 1/4" x 12 FPHW) and All machine screws (1/2" 12-24 FPHM)
- Hinges are .180 thickness, For 1 3/4" door thickness. For use on heavy weight doors or doors requiring high frequency service.
Material:
- Steel with Steel pin
- Non-rising removable pin with button tip and plug
- Four ball bearings
ANSI A8111
| General - US Finishes | US26D - Satin Chrome or USP - Prime Painted |
| Brand | Hager |
| Hinge Height | 4.5" Hi |
| Hinge Width | 4.5" Wi |
| Hinge Grade/Thickness | Heavy Wt .180 to .190 |
| Hinge Type | Full Mortise |
| Hinge Options | Ball Bearing |
| Base Material | Steel |
| Hinge Corners | Square |
