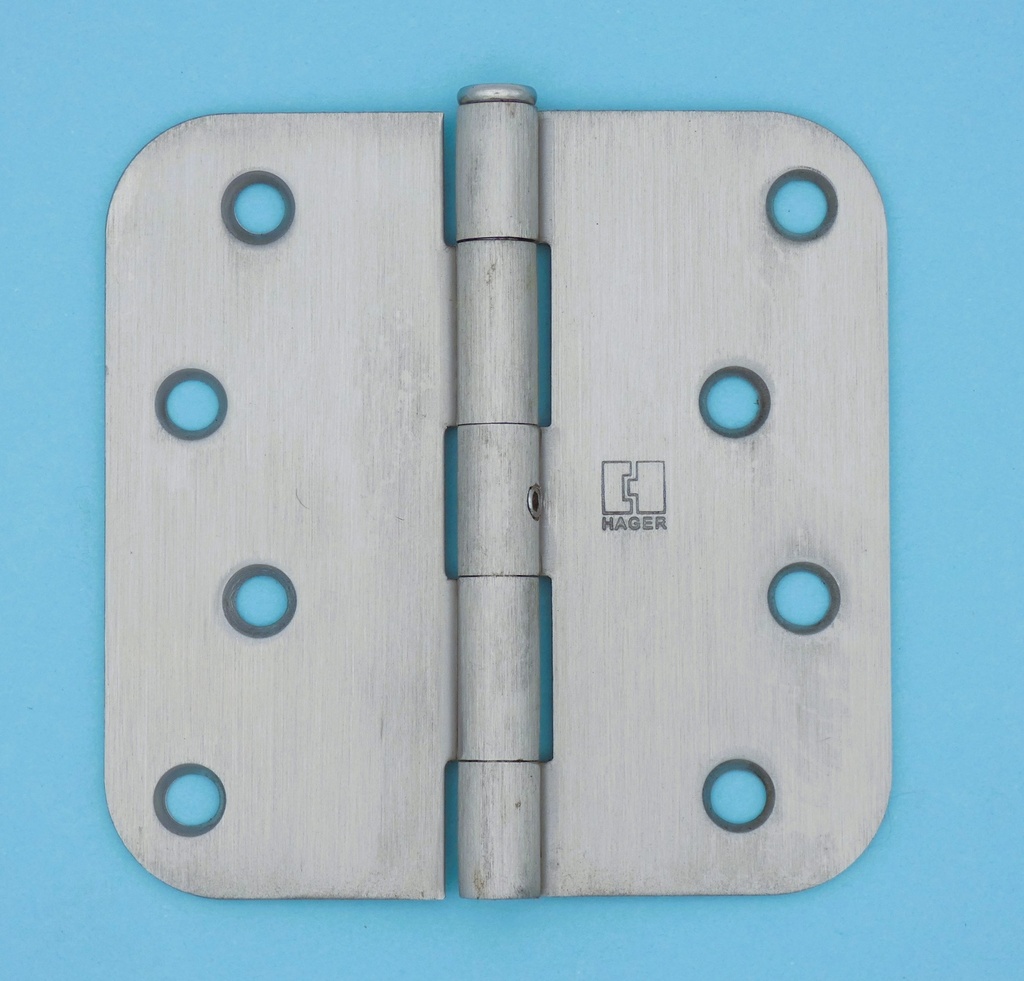

Hager RC1542 4.0" x 4.0" NRP Non-Ferrous Hinge – 5/8" Radius Corner
The Hager RC1542 4.0" x 4.0" is a high-quality residential grade hinge designed for applications where security and environmental resistance are top priorities. Featuring a 5/8" radius corner, this hinge is specifically engineered for doors with rounded mortise pockets.
What sets the RC1542 apart is its Non-Ferrous construction. Depending on the finish, the base material is either Solid Brass or Stainless Steel, making it immune to the rust and corrosion that typically plagues standard steel hinges. This makes it the ideal choice for exterior doors, coastal homes, or high-moisture environments.
Integrated NRP Security for Outswing Doors
This model is equipped with a Non-Removable Pin (NRP), providing an essential layer of security for your home:
- Anti-Tamper Design: The NRP feature prevents the hinge pin from being removed from the outside when the door is closed. This is a critical security requirement for outward-swinging doors where the hinge barrel is exposed.
- Forced Entry Prevention: Even if an intruder attempts to tap out the pin, the internal locking mechanism ensures the door remains securely attached to the frame.
- Reliable Protection: Provides long-term peace of mind without compromising the clean, traditional aesthetic of the residential door.
Technical Specifications
| Feature | Specification |
| Model | Hager RC1542 |
| Dimensions | 4.0" x 4.0" |
| Corner Type | 5/8" Radius Rounded Corners |
| Bearing Type | Plain Bearing |
| Security Feature | Non-Removable Pin (NRP) |
| Material (US3, 10R, 15) | Brass with Brass Pin |
| Material (US32D) | Stainless Steel with Stainless Steel Pin |
| Metal Gauge | .085 Thickness |
| Base Material | Non-Ferrous (Rust Resistant) |
| Pin Style | Removable with Button Tip and Plug |
Fasteners & Maintenance
- Included Hardware: Furnished with 3/4" x 9 FH Wood Screws. (Machine screws are available by request for an additional price).
- Lubrication Note: Hager residential hinges are provided without factory lubrication. DoorwaysPlus.com and Hager recommend applying lubrication (lithium grease is suggested) during or immediately after installation to ensure smooth operation.
| General - US Finishes | US32D - Satin Stainless Steel/ 630 or US3 - Polished Brass or US10R - Antique Bronze |
| Brand | Hager |
| Hinge Height | 4.0" Hi |
| Hinge Width | 4.0" Wi |
| Hinge Grade/Thickness | Residental Wt .085 to .106 |
| Hinge Type | Full Mortise |
| Hinge Options | Plain Bearing, NRP (Non Removable Pin) |
| Base Material | Stainless Steel, Brass |
| Hinge Corners | 5/8" Radius |
