HES Electric Strike 1500 LM 630/ US32D - 12/24VDC - Fail Secure/ Fail Safe

​

​ ​​**** Lock Monitoring Option ****

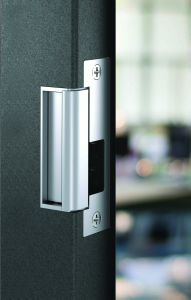

The HES 1500 Series® electric strike is more than a new heavy duty, low profile solution for latchbolt locks. It accommodates every brand of cylindrical or mortise lock designed to work with a 4-7/8” strike plate.

Application

  • Surface Mounting : Cutting required
  • Frame Material : Metal / Wood
  • Adjustability : Horizontal
  • Latchbolt Accommodation : Up to 3/4"

Listings

  • Fire Rated : Yes
  • Grade : Grade 1
  • Windstorm Resistant : Yes

Environmental

  • Maximum Operating Temperature (° F) : NA
  • Minimum Operating Temperature (° F) : NA
  • Operating Humidity : NA

Certifications

  • ANSI/BHMA A156.31, Grade 1
  • ANSI/SDI 250.13 Certified
  • ASTM E152 Fire Door Compliant
  • ASTM E330 Certified
  • CAL FIRE, 3776-1654:0500
  • Florida Building Code Approved FL# 22400
  • NFPA-252 fire door Compliant
  • RoHS Compliant
  • UL 1034 burglary-resistant listed
  • UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies
  • UL294 Listed

Electrical

  • Power Source : Hardwired
  • Voltage : 12/24
  • Monitoring Installation : Factory Configured/ Field Installable
  • Actuator Type : Solenoid
  • Current 12v DC (mA) : 240
  • Current 24v DC (mA) : 120

General Specification

  • Body Material : Stainless Steel
  • Lock Type : Cylindrical Lock/ Mortise Lock
  • Handing : Non-handed
  • Fire Rating ~ Single Door : 3 Hour (Fail Secure Only)
  • Fire Rating ~ Double Door : 1.5 Hour (Fail Secure Only)

Strength & Durability

  • Dynamic Strength (ft-lbs) : 70
  • Endurance (cycles) : 1,000,000

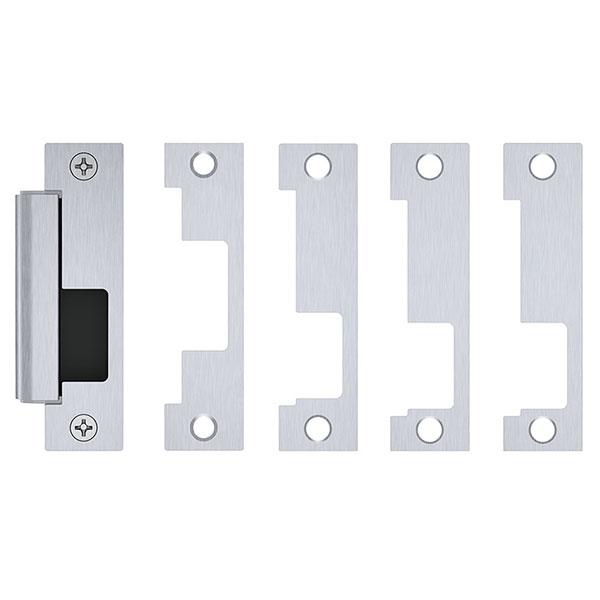

Faceplate Options 1500C-1LB w/ 4 Faceplates or Electric Strike Body Only
Brand HES
Voltage 12 VDC, 24 VDC
Fail Safe/Fail Secure Field Selectable
Electric Strike Options Lock Monitoring
Electric Strike Lock Type Use Cylindrical - 5/8" Throw, Cylindrical - 3/4" Throw, Mortise Lock - 3/4" Throw
