Electric Strike 1006-F Series US32D - 12/24VDC - Fail Safe (Power off = Unlocked)
The 1006 series is the strongest and most versatile electric strike available. The dual interlocking plunger design and heavy duty stainless steel construction, enables it to exceed every standard developed for electric strikes. With multiple faceplate options, the 1006 will fully accommodate every lock designed to work within an ANSI 4-7/8" strike plate. Tested to ex 3,000
lbs. of static strength, 350 ft-lbs. of dynamic strength and factory tested to exceed 1,000,000 cycles of operation, the 1006 is in a class of its own.
Face Plate Options:
- J Option: For use with: Cylindrical locksets up to 3/4" throw and all locksets with center-lined bolts, Compatible locksets: All brands of cylindrical latchbolts
- KD Option: For use with: Mortise locksets up to 3/4" throw latchbolt, Compatible locksets: Dorma 9500, Jackson, Sargent (7700 & 8100), Schlage, Yale (8700)
- KM Option: For use with: Mortise locksets up to 3/4" throw latchbolt, Compatible locksets: Accurate, Arrow, Baldwin, Best, Corbin Russwin, Falcon, Marks, PDQ, Sargent (7800, 8200 & 9200), Yale (8800)
- HM Option: For use with: Mortise locksets with a 1" deadbolt. Strike will not release when deadbolt is extended, Compatible locksets: Accurate, Arrow, Baldwin, Best, Corbin Russwin, Falcon (45H, 47H, 34H & 37H), Marks, Omnia, PDQ, Sargent (7800, 8200 & 9200), Yale (8800)
- NM Option: For use with: Mortise locksets with a deadbolt used for night latch function only, Compatible locksets: Accurate, Arrow, Baldwin, Best, Corbin Russwin, Falcon (45H, 47H, 34H & 37H), Marks, Omnia, PDQ, Sargent (7800, 8200 & 9200), Yale (8800)
HES 1006 Specifications
- UL 10C fire-rated, 3 hour single door (fail secure only) GXAY.R9483
- UL 10C fire-rated, 1-1/2 hour double door (fail secure only)
- CAN4-S104(ULC-S104) fire door conformant, GXAY7.R9483
- ANSI A250.13-2003 windstorm listed, R27043
- UL 1034, burglary resistant listed and suitable for outdoor use, BP7059
- UL 294 (6th Edition) listed, BP7059
- ANSI/BHMA A156.31, Grade 1
- NFPA-252 fire door conformant
- ASTM-E152 fire door conformant
- MEA New York City accepted
- Florida Building Code approved, FL16392-R0
- RoHS compliant
- Patents: 6,021,038 & 6,595,564
Frame Application
- Metal
- Wood
Electrical (continuous duty)
- .45 Amps @ 12VDC
- .25 Amps @ 24VDC
- PoE friendly
Standard Features
- Stainless steel construction
- Tamper resistant
- Static strength 3,070 lbs. (fail secure)
- Dynamic strength 350 ft-lbs. (fail secure)
- Endurance 1,000,000 cycles
- Fail secure (standard)
- Dual voltage 12VDC or 24VDC continuous duty
- Non-handed
- Internally mounted solenoid
- Accommodates up to 1" deadbolt
- Plug-in connector
- Full keeper shims for horizontal adjustment
- Trim enhancer
- Five-year limited warranty
Optional Features
- Fail Safe
- LBM » Latchbolt monitor
- LBSM » Latchbolt strike monitor
- Interchangeable faceplates
Optional Accessories
- 1000-102 » Rain guard
- 1006-103 » Full keeper shims
- 1000-104 » Lip extension trim adapter
- 1006-105 » Trim enhancer BLK (goof plate)
- 1006-109 » Trim adapter
- 1000-110 » Replacement strike plate
- 1000-130 » KD filler plate
- 150 » Strike latch guard
- 154-MT K » Metal template kit
- 2004M » ElectroLynx adapter
- 2005M3 » SMART Pac III
- 2006M » Plug-in buzzer
Optional Finishes
- 630* » Satin stainless steel
- 605 » Bright brass
- 606 » Satin brass
- 612 » Satin bronze
- 613 » Bronze toned
- 629 » Bright stainless steel
- BLK » Black
*Complete Pacs are only available in the 630 Stainless Steel finish. If a different finish is required please request a quote.

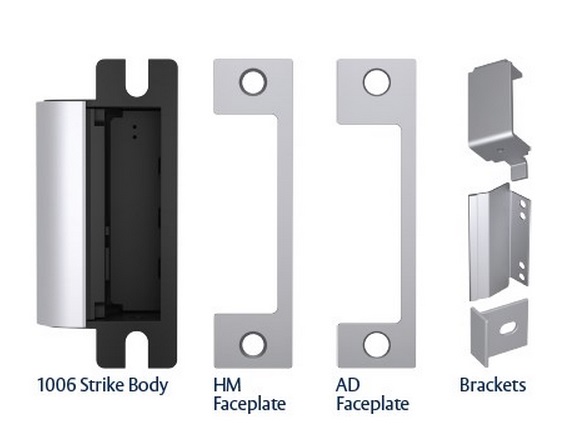

| Faceplate Options | 1006xCDB - 2 Faceplates - Deadbolt Locks or 1006xCLB - 3 Faceplates - Latchbolt Locks or 1006xCS - Smart Pac 3 + 5 Faceplates or Electric Strike Body Only |
| Finish with BHMA code | 630 - US32D Satin Stainless |
| Brand | HES |
| Voltage | 12 VDC, 24 VDC |
| Fail Safe/Fail Secure | Fail Safe |
| Electric Strike Lock Type Use | Cylindrical - 3/4" Throw, Mortise Lock - 1" Deadbolt, Mortise Lock - 3/4" Throw |
| Fire Rated | Fire Rated |
