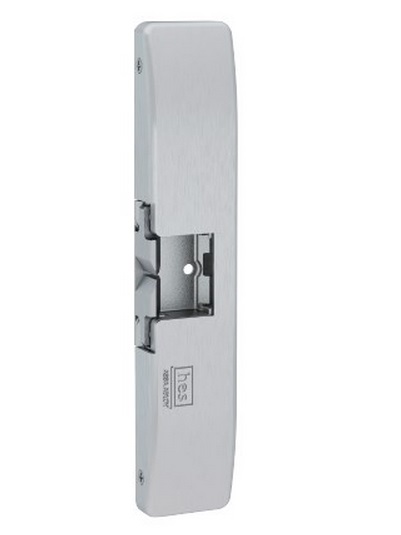

HES Electric Strike 9600 for Rim Panics, 12/24 VDC, Fail Secure or Fail Safe
The 9600 Series is a windstorm rated, surface mounted electric strike designed to accommodate rim exit devices with a 3/4" throw latch. All components are completely encased within its 3/4" thick stainless steel housing, so no cutting on the frame is required for installation. Simply place the electric strike on the surface of the frame, align it with the exit latchbolt and install. It is field selectable for fail secure and fail safe operation, and for 12 or 24VDC.
The 9600 is the only surface mounted electric strike designed with the strength and durability required to exceed the severe forces of ANSI Windstorm testing.
Specifications
- ANSI 250.13-2003 Severe Windstorm listed, R27043
- Florida Building Code Approved, FL14307-R1
- UL 1034 burglary-resistant listed and suitable for outdoor use, BP7059
- UL 294 (6th Edition) Listed, BP7059
- ANSI/BHMA A156.31, Grade 1 (#E09371, #E09372, #E09373)
- NFPA-252 fire door conformant
- RoHS compliant
- Patent #6,390,520
Frame application
- Metal
- Wood
Electrical
- .45 Amps @ 12VDC continuous duty
- .25 Amps @ 24VDC continuous duty
- PoE friendly
Standard Features
- Installs in metal or wood frames
- Separate base and cover for easy adjustments
- Stainless steel construction
- Tamper resistant
- Static strength 2,000 lbs.
- Dynamic strength 120 ft-lbs.
- Endurance 1,000,000 cycles
- Field selectable fail safe/fail secure
- Dual voltage 12 or 24 VDC
- Horizontal adjustability
- Non-handed
- Internally mounted solenoid
- Accommodates up to 3/4" Pullman latch
- Five year limited warranty
Optional Features
- LBM - Latchbolt monitor
- LBSM - Latchbolt strike monitor
Accessories
- 9400/9500/9600-108 » Spacer plate (black or 630 finish)
- SMB » Surface mounting box
- 2001M » Plug-in bridge rectifier
- 2004M » ElectroLynx adapter
- 2005M3 » SMART Pac III
- 2006M » Plug-in buzzer
Finishes
630 » Satin stainless steel
605 » Bright brass
606 » Satin brass
612 » Satin bronze
613 » Bronze toned
613E » Dark Oxidize Satin Bronze (NEW)
629 » Bright stainless steel
Tech Tip
When installing surface-mounted door hardware, establishing mounting threads in thin-gauge metal frames can be a challenge - often requiring the installation of blind nuts to establish an adequate thread. Because of their design, blind nuts can cause surface-mounted door hardware to not fit flush to the frame.
Recognizing this real life issue, the design of the 9600 electric strike has been enhanced to provide a flush mount even when used with blind nuts. If interested in purchasing blind-nuts and blind nut installation tools, seek out the Securitron BN-250 blind nut and accessories pack.
| Finish with BHMA code | 630 - US32D Satin Stainless or 613 - US10B Oil Rubbed Bronze |
| Brand | HES |
| Voltage | 12 VDC, 24 VDC |
| Fail Safe/Fail Secure | Field Selectable |
| Electric Strike Lock Type Use | SVR or Rim Exit Device |
| Fire Rated | Non-Rated |
