ABH Pin and Barrel Full Surface Hinge, A502 83-1/8" x US32D - Stainless Steel

https://www.doorwaysplus.com/web/image/product.template/1714/image_1920?unique=7570ac5

ABH Pin and Barrel Full Surface Hinge, A502 83-1/8" x US32D
Lead Time: 3-4 Days

315.21 315.21 USD 315.21

315.21

Not Available For Sale


  • Brand
  • General - US Finishes
  • Continuous Hinge Height
  • Hinge Type
  • Hinge Type
  • Continuous Hinge Grade

This combination does not exist.


Share :

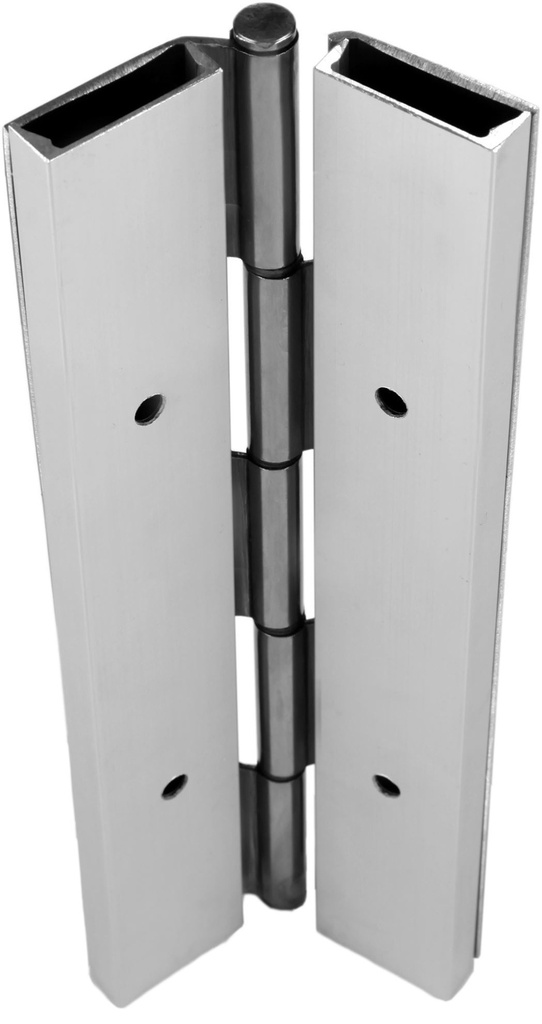

ABH Mfg. Full Surface Pin & Barrel Continuous Hinge, A502 x 83-1/8" - Stainless Steel

  • Full Surface Application
  • 1-3/4" Minimum frame mounting space needed
  • For beveled or square edged doors
  • For 1-3/4” doors
  • For high traffic, high abuse doors
  • Heavy-duty 14 Gauge 304 Stainless Steel
  • US32D Satin Stainless Steel
  • No exposed fasteners when door is closed
  • Self drilling screws
  • Supports door weights up to 600 lbs.
  • 4’0” Maximum door width
  • Decorative Fastener Covers
  • Fire Rating - UL and ULC fire Listed: 3 hours hollow metal door; 90 min hollow metal and composite core wood fire door; 20 min. wood door

Standard Options available by quote include Hospital Tips,, Dutch Door, Torx Screws, Welded End Pins, Lead Lined and power coated finishes.

ABH A502 Details

Brand ABH Mfg
General - US Finishes 630 - Satin Stainless Steel/ US32D
Continuous Hinge Height 83 Inch (7/0 Dr)
Hinge Type Full Surface, Continuous Hinge
Continuous Hinge Grade Heavy Duty
ABH Stainless Steel Pin Barrel Hinges Catalog
Download
