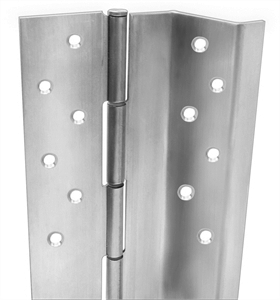

ABH A511-83-1/8" Stainless Steel Swing Clear Hinge with Edge Guard
The ABH A511 is a heavy-duty concealed pin and barrel continuous hinge designed to swing the door completely out of the opening. This "Swing Clear" action provides the maximum possible clearance, making it an essential hardware component for meeting ADA requirements in hospital corridors and narrow entryways. Constructed from 14-gauge 304 stainless steel, it includes an integrated edge guard on the stop side to protect the door from impact damage while supporting weights up to 600 lbs.
Key Features & Benefits
- Swing Clear Geometry: Engineered to move the door out of the way when opened at 90 degrees, ensuring full-width access for wheelchairs, gurneys, and carts.
- Integrated Edge Guard: Features a protective lip on the stop side of the door to shield the edge from costly damage in high-abuse environments.
- Exceptional Weight Capacity: Built to handle heavy-duty commercial doors up to 4’0” wide and 600 lbs, far exceeding the performance of standard hinges.
- Superior Fire Rating: UL and ULC listed for up to 3 hours on hollow metal doors and 90 minutes on wood fire doors.
- Clean Architectural Profile: A flush-mount design with no exposed fasteners when the door is closed, finished in a durable US32D Satin Stainless Steel.
| Feature | Specification |
| Material | Heavy-Duty 14 Gauge 304 Stainless Steel |
| Hinge Action | Swing Clear (ADA Compliant) |
| Application | 1-3/4” Thick Square Edged Doors |
| Max Door Weight | 600 lbs |
| Max Door Width | 48" (4'0") |
| Fire Rating | 3-Hour (Metal) / 90-Min (Wood) |
Why Choose the A511 for Your Facility?
The ABH A511 is specifically designed for high-traffic environments where every inch of opening width matters. Its stainless steel pin-and-barrel construction is naturally resistant to corrosion and physical impact, ensuring a lifetime of smooth operation. For specialized medical or high-security needs, this model is available with Hospital Tips, Security Torx Screws, or Custom Powder Coated Finishes via custom quote.
| Brand | ABH Mfg |
| General - US Finishes | US32D - Satin Stainless Steel/ 630 |
| Hinge Type | Continuous Hinge, Full Mortise |
| Continuous Hinges Options | Swing Clear, Door Edge Guard |
| Continuous Hinge Height | 83 Inch (7/0 Dr) |
| Continuous Hinge Grade | Heavy Duty |
| Base Material | Stainless Steel |
