ABH Swing Clear Hinge with Edge Guard A511 83-1/8" x US32D

Price:

323.86


ABH Pin and Barrel Hinge with Edge Guard A505-83-1/8" x US32D - Stainless Steel
ABH Pin and Barrel Hinge with Edge Guard A505-83-1/8" x US32D - Stainless Steel
369.74
369.74
ABH Pin and Barrel Hinge with Edge Guard A515 83-1/8" x US32D - Stainless Steel
ABH Pin and Barrel Hinge with Edge Guard A515 83-1/8" x US32D - Stainless Steel
329.84
329.84

ABH Swing Clear Hinge with Edge Guard A511 83-1/8" x US32D

https://doorways.cloudpepper.site/web/image/product.template/1712/image_1920?unique=f798b89

ABH Swing Clear Hinge with Edge Guard A511 83-1/8" x US32D
Lead Time: 3-4 Days

323.86 323.86 USD 323.86

323.86

Not Available For Sale


  • Brand
  • Hinge Type
  • Hinge Type
  • Continuous Hinges Options
  • Continuous Hinges Options
  • Continuous Hinge Height
  • General - US Finishes
  • Continuous Hinge Grade

This combination does not exist.


Share :

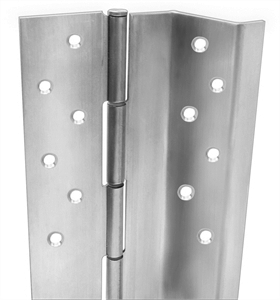

ABH Mfg. Swing Clear Pin & Barrel Continuous Hinge with Edge Guard A511-83-1/8" - Stainless Steel

  • Concealed
  • Flush mount
  • For square edged doors
  • For 1-3/4” doors
  • For high traffic, high abuse doors
  • Heavy-Duty 14 Gauge 304 Stainless Steel
  • US32D Satin Stainless Steel finish
  • Door edge lip on stop side only
  • Self-drilling machine screws and wood screws provided
  • Supports door weights up to 600 lbs.
  • 4’0” maximum door width
  • No exposed fasteners when door is closed
  • Meets ADA requirements
  • Fire Rating - UL and ULC fire Listed: 3 hours hollow metal door; 90 min hollow metal and composite core wood fire door; 20 min. wood door

Standard Options available by quote include Hospital Tips, Dutch Door, Torx Screws, Welded End Pins, Custom Powder Coated Finishes

ABH A511 Details




Brand ABH Mfg
Hinge Type Full Mortise, Continuous Hinge
Continuous Hinges Options Swing Clear, Door Edge Guard
Continuous Hinge Height 83 Inch (7/0 Dr)
General - US Finishes 630 - Satin Stainless Steel/ US32D
Continuous Hinge Grade Heavy Duty
ABH Stainless Steel Pin Barrel Hinges Catalog
Download
