Hager ECBB1103 NRP 5 x 4 1/2 US32D Ball Bearing Hinge

Price:

92.65


Hager ECBB1103 NRP 4 1/2 x 4 1/2 Ball Bearing Hinge
Hager ECBB1103 NRP 4 1/2 x 4 1/2 Ball Bearing Hinge
72.75
72.75
Hager BB1173 NRP 4 1/2 Ball Bearing Half Surface Hinge
Hager BB1173 NRP 4 1/2 Ball Bearing Half Surface Hinge
39.15
39.15

Hager ECBB1103 NRP 5 x 4 1/2 US32D Ball Bearing Hinge

https://www.doorwaysplus.com/web/image/product.template/807/image_1920?unique=5c627d0

Hager Ecco ECBB1103 NRP 5 x 4 1/2 Ball Bearing Hinge, 5 Knuckle, US32D Stainless Steel

92.65 92.65 USD 92.65

92.65

Not Available For Sale


  • Brand
  • Hinge Height
  • Hinge Width
  • Hinge Grade/Thickness
  • Hinge Type
  • Hinge Options
  • Hinge Options
  • Base Material
  • Hinge Corners

This combination does not exist.


Share :

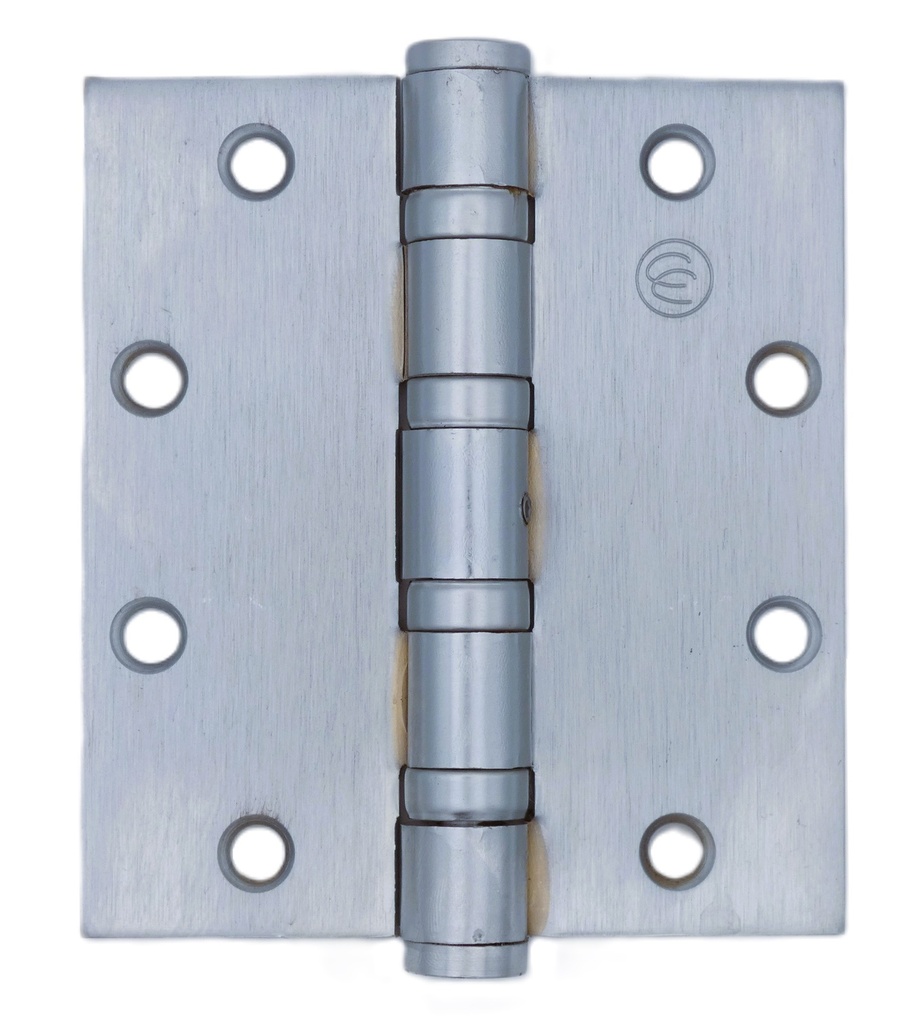

Hager Ecco ECBB1103 NRP 5 x 4 1/2 Full Mortise - Ball Bearing Hinge, Heavy Weight , US32D Stainless Steel Type 304L.

5" height x 4 1/2" width

Furnished standard with 1/2 wood screws (1 1/4" x 12 FPHW) and All machine screws (1/2" 12-24 FPHM)

Hinges are .190 thickness, For 1 3/4" door thickness. For use on heavy weight doors or doors requiring high frequency service.

- Non-rising removable pin with button tip and plug

- Four ball bearings

Material:

-Stainless Steel with Stainless Steel pin ANSI A5112

Non-Removable Pin (NRP) for Medium Security

The Non-Removable pin has a small set screw in the body of the barrel. This set screw is tightened down against the pin. The pin has a groove in the position where the set screw makes contact, allowing the set screw to seat. The set screw is positioned so it cannot be reached unless the door is opened. If pin removal is necessary, the set screw is merely removed and the pin tapped from the bottom in the usual manner.




Brand Hager
Hinge Height 5.0" Hi
Hinge Width 4.5" Wi
Hinge Grade/Thickness Heavy Wt .180 to .190
Hinge Type Full Mortise
Hinge Options Ball Bearing, NRP (Non Removable Pin)
Base Material Stainless Steel
Hinge Corners Square
