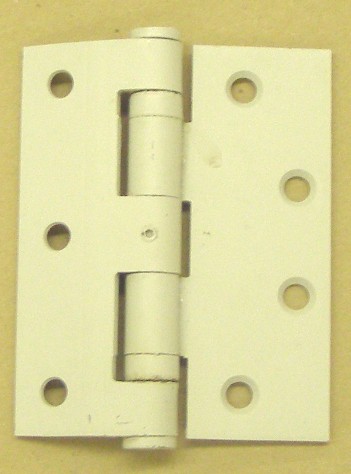

Hager BB1129 NRP 4 1/2 Ball Bearing Half Mortise Hinge, 5 Knuckle, Steel - USP Prime Painted
**** Note: Half Mortise Hinges are Mortised in the edge of the door, Surface Mounted on face of frame ****
- Screws furnished standard are 1/2" 12-24 FPHM
- Hinges are .134 thickness, For 1 3/4" door thickness. For use on medium weight hollow metal doors with channel iron frames requiring medium frequency service
ANSI A8212
- Two Ball Bearings
- Non-rising removable pin with button tip and plug
- Beveled surface leaf
- Reversible
- Steel with steel pin
Understanding NRP Hinges
The NRP (Non-Removable Pin) feature is a crucial innovation in the world of door hardware. Here's why it's an essential aspect of secure door installations:
-
Enhanced Security:
The primary purpose of the NRP is to prevent unauthorized removal of door hinges from the outside. This is vital for exterior doors or any doors where security is a concern. The non-removable pin ensures that even if someone tries to tamper with the hinges, they can't simply remove the pin and detach the door. -
Optimal for Outward Swinging Doors:
Many commercial and residential doors swing outward, which means the hinge pins are accessible from outside. This makes them vulnerable to intruders. The NRP feature effectively mitigates this risk by securing the hinge pin. -
Durability and Peace of Mind:
With the NRP option, door users can enjoy greater peace of mind. The pin is designed to withstand tampering, offering long-term durability and reliability without compromising on the aesthetics or functionality of the door.
By opting for hinges with an NRP feature, you ensure a higher level of security that safeguards against forced entries through hinge manipulation.
When exploring these options, consider the specific requirements of your project, whether it's for residential or commercial use. Each of these types
| General - US Finishes | USP - Prime Painted |
| Brand | Hager |
| Hinge Height | 4.5" Hi |
| Hinge Grade/Thickness | Standard Wt .119 to .146 |
| Hinge Type | Half Mortise |
| Hinge Options | Ball Bearing, NRP (Non Removable Pin) |
| Base Material | Steel |
| Hinge Corners | Square |
