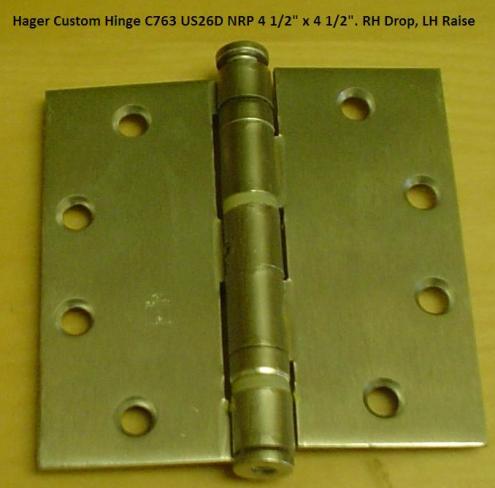

Hager BB1279 RHDROP C763 Hinge NRP US26D - Satin Chrome
RH Swing door Drops, LH Swing Door Raises. Standard Weight, Steel with Steel Pin
- Drop leaf applied to door will lower the door away from the head 1/8"
- Adaptable to 1/16" drop by repositioning and removing one of the 1/16" spacers
- Two ball bearings
- Includes NRP - Non Removable Pin feature
- Non-rising removable pin with button tip and plug
- For use on medium weight doors or doors requiring medium frequency service
- Handed. Must specify RH or LH. Non-reversible
- Handing based on the door leaf in the drop position
- Complies with NFPA80 requirements for use on fire rated door assemblies
Note: For these hinges to work correctly, all hinges on the door leaf must be changed
| General - US Finishes | US26D - Satin Chrome |
| Brand | Hager |
| Hinge Height | 4.5" Hi |
| Hinge Width | 4.5" Wi |
| Hinge Grade/Thickness | Standard Wt .119 to .146 |
| Hinge Type | Drop Leaf |
| Hinge Options | Ball Bearing, NRP (Non Removable Pin) |
| Base Material | Steel |
| Hinge Corners | Square |
