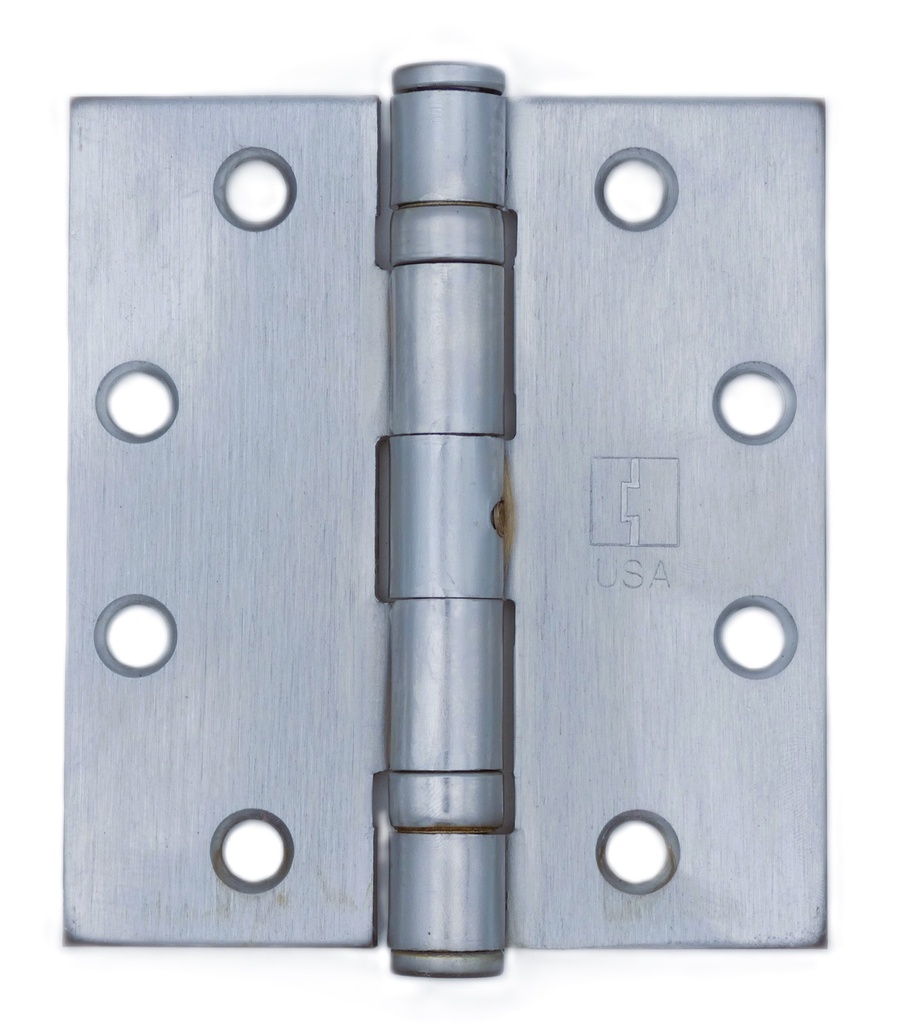

Hager BB1279 NRP 4-1/2" x 4" Ball Bearing Security Hinge | US26D
The Hager BB1279 is a professional-grade full mortise ball bearing hinge designed for 1-3/4" thick doors in medium-weight or low-frequency service applications. This specific model features the Non-Removable Pin (NRP) security upgrade, making it the industry standard for outward-swinging exterior doors where security is paramount. Crafted from high-strength steel with a US26D Satin Chrome plated finish, the BB1279 combines architectural aesthetics with robust mechanical performance.
Engineered for Security and Durability
The Hager BB1279 NRP is vital for any entry where the hinge barrel is exposed to the "attack side" of the opening. The NRP (Non-Removable Pin) feature utilizes a hidden set screw in the barrel that prevents the hinge pin from being driven out by unauthorized individuals, effectively thwarting attempts to remove the door from the frame. Equipped with two ball bearings, this hinge ensures a smooth, silent swing while preventing the metal-on-metal wear common in standard plain bearing hinges.
Professional Grade Specifications
Compliant with ANSI A8112 standards, this hinge is built to rigorous industry benchmarks. It features a .134 metal gauge thickness, providing the necessary structural integrity for standard commercial wood or hollow metal doors. The US26D Satin Chrome finish offers excellent corrosion resistance and coordinates seamlessly with modern commercial locksets and exit devices.
Technical Specifications
| Feature | Specification |
| Model Number | Hager BB1279 NRP |
| Dimensions | 4-1/2" Height x 4" Width |
| Hinge Type | Full Mortise, Ball Bearing (2 Bearings) |
| Security Feature | NRP (Non-Removable Pin) |
| Material | Steel with Steel Pin |
| Metal Gauge | .134 Thickness |
| Door Thickness | Optimized for 1-3/4" Doors |
| Standard Finish | US26D (Satin Chrome) |
| Standards | ANSI A8112 Compliant |
| Pin Type | Non-rising removable pin with button tip and plug |
Installation and Hardware
The Hager BB1279 is a "universal" pack hinge, furnished with a complete set of fasteners for any frame type:
- Wood Screws: All wood screws (1-1/4" x 12 FPHW) included.
- Machine Screws: All machine screws (1/2" 12-24 FPHM) included for metal frame preps.
Custom Options Available by Quote
While US26D is the stock finish, we can provide quotes for specialized project requirements, including:
- Alternative Finishes: US3, US4, US10, US10A, US10B, US15, and US26.
| General - US Finishes | US26D - Satin Chrome |
| Brand | Hager |
| Hinge Height | 4.5" Hi |
| Hinge Width | 4.0" Wi |
| Hinge Grade/Thickness | Standard Wt .119 to .146 |
| Hinge Type | Full Mortise |
| Hinge Options | Ball Bearing, NRP (Non Removable Pin) |
| Base Material | Steel |
| Hinge Corners | Square |
