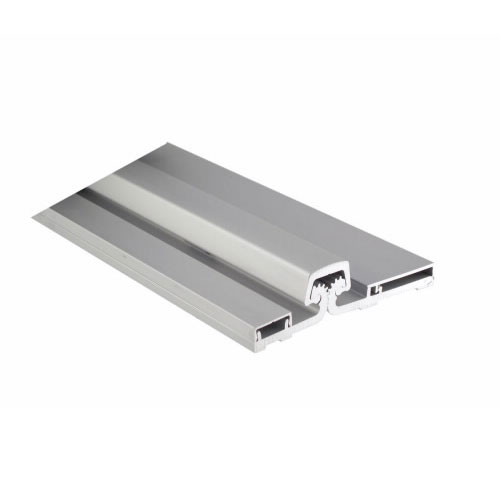

Pemko CFS83 Full-Surface Continuous Geared Hinge - 83" Clear Anodized
The Pemko CFS83 is a high-performance Standard Duty Continuous Geared Hinge specifically engineered for retrofit construction. Unlike mortise hinges, this full-surface unit is applied directly to the exposed faces of the door and frame, making it the ideal solution for repairing sagging doors or upgrading existing openings. The 83" length is standard for 7'0" doors, providing a seamless, full-height gear mechanism that ensures smooth operation and eliminates the binding common with traditional butt hinges.
High-Performance & Security Features
- Uniform Weight Distribution: By distributing the door's load along the entire length of the frame, the CFS83 eliminates stress points and prevents the "pulling" that causes doors to sag over time.
- Low Operating Force: The precision-engineered geared design allows even heavy commercial doors to open with minimal effort, making this hinge a preferred choice for ADA-compliant accessibility.
- Enhanced Door Security: The full-length channel cap seals the gap between the door and the frame, acting as a powerful deterrent against prying and tampering on exterior openings.
- Fire & Safety Certified: Fully tested to UL 10C Positive Pressure fire standards and ANSI/BHMA A156.26 certified, ensuring your facility remains up to code.
- Clean Retrofit Aesthetic: The Clear Anodized Aluminum finish provides a modern, professional look that resists corrosion and hides mounting hardware with a removable cover plate.
Technical Specifications
- Manufacturer: Pemko (ASSA ABLOY)
- Model Number: CFS83 (Standard Duty)
- Mounting Type: Full Surface (Applied to exposed face of door and frame)
- Length: 83" (For 7-foot door openings)
- Weight Capacity: Supports doors up to 280 lbs
- Finish: Clear Anodized Aluminum (C)
- Fasteners: Includes #12-24 x 7/16" thread-forming screws (no tapping required)
- Cycle Rating: Conforms to BHMA Grade 3 standards for long-term reliability.
| Brand | Pemko |
| Hinge Type | Continuous Hinge, Full Surface |
| Continuous Hinge Height | 83 Inch (7/0 Dr) |
| Continuous Hinge Grade | Standard Duty |
| General - US Finishes | US28 - 628/ Anodized Aluminum |
| Length | 83 Inch |
