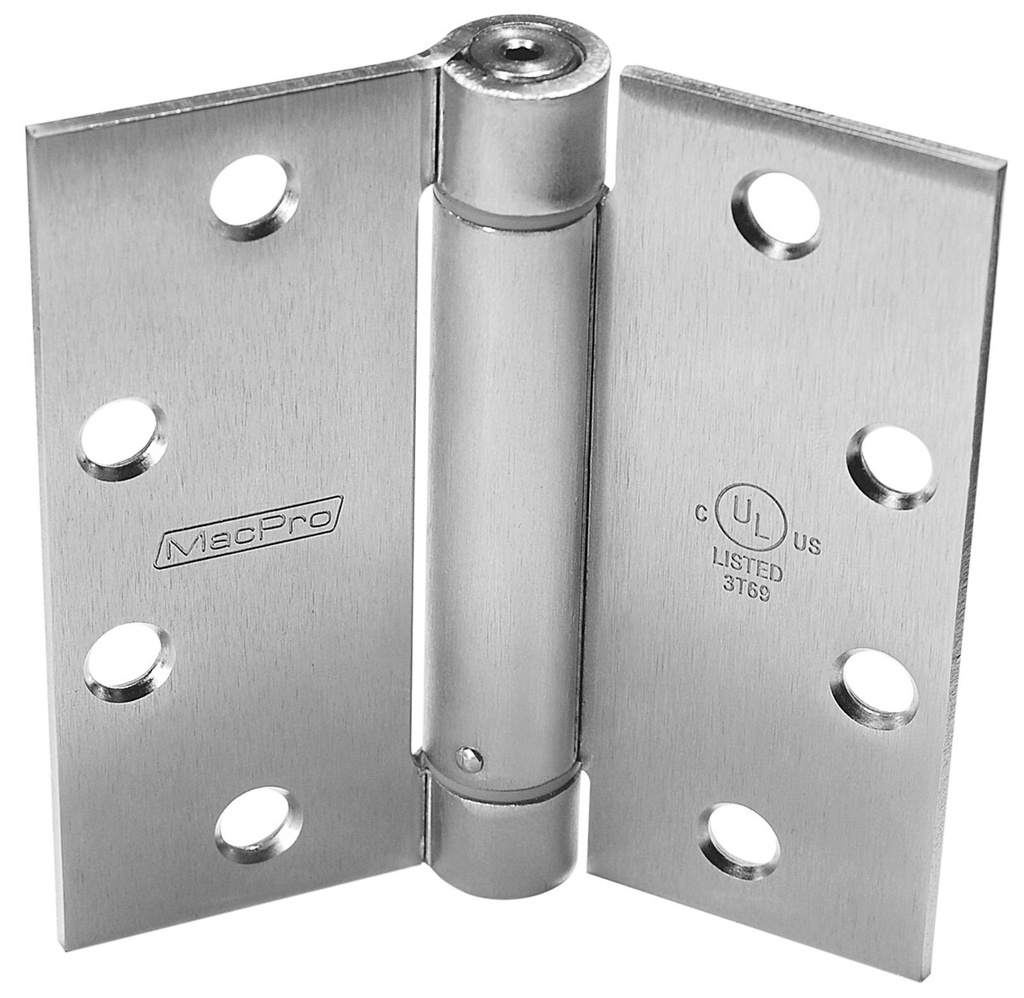

McKinney MPS679 4-1/2x4-1/2 MacPro Adjustable Spring Hinge Set | Self-Closing 3-Hinge Kit
McKinney MPS679 4-1/2 x 4-1/2 macpro adjustable spring hinge set (2 mps60 + 1 mpb79).
Lead time: Normally ships in 2-3 business days via McKinney QuickShip; current lead time confirmed at order acknowledgment.
Tags :
McKinney MPS679 4-1/2 x 4-1/2 MacPro Adjustable Spring Hinge Set | Standard Weight Self-Closing Hinge Kit
The McKinney MPS679 is a standard weight MacPro adjustable spring hinge set designed to provide reliable, self-closing performance for a single door opening. Supplied as a complete three-hinge kit, the MPS679 includes two MPS60 adjustable spring hinges and one MPB79 ball bearing butt hinge — everything needed to outfit one self-closing opening in a single package. The adjustable spring tension in the MPS60 hinges allows field adjustment of closing force without removing the hinges from the door, making this kit a practical, installer-friendly solution for commercial and institutional applications requiring consistent self-closing door operation. Each leaf is manufactured to a steel thickness of 0.134 in., reflecting the robust, standard weight construction characteristic of McKinney's MacPro hinge line. The MPS679 is sized at 4-1/2 in. x 4-1/2 in., a widely specified dimension suitable for standard commercial door and frame preparations.
Institutional Grade Features & Benefits
- Complete Self-Closing Kit: The MPS679 is supplied as a ready-to-install set of three hinges — two MPS60 adjustable spring hinges and one MPB79 ball bearing butt hinge — covering all hinge positions for a single self-closing opening without separate ordering of components.
- Field-Adjustable Spring Tension: The included MPS60 spring hinges feature McKinney's MacPro adjustable spring mechanism, allowing installers and facilities personnel to fine-tune door closing force on-site to meet operational requirements.
- Standard Weight Steel Construction: Each hinge leaf is manufactured at 0.134 in. steel thickness, delivering the durability and load capacity expected for standard weight commercial door applications.
- 4-1/2 x 4-1/2 In. Industry-Standard Size: The full-mortise 4-1/2 in. x 4-1/2 in. footprint aligns with common commercial door and frame hinge preparations, simplifying specification and replacement.
- Balanced Hinge Set Configuration: Pairing two spring hinges with one ball bearing butt hinge distributes closing force efficiently while maintaining smooth door operation, a proven configuration for self-closing openings.
- McKinney MacPro Line Quality: Engineered under McKinney's MacPro hinge program, the MPS679 reflects consistent manufacturing tolerances and materials associated with the brand's commercial hardware portfolio.
Technical Details
| Feature | Details |
|---|---|
| Brand | McKinney |
| Part Number | MPS679 |
| Part Type | Hinge — Adjustable Spring Hinge Set |
| Series / Line | MacPro |
| Hinge Size | 4-1/2 in. x 4-1/2 in. |
| Weight Class | Standard Weight |
| Gauge / Leaf Thickness | 0.134 in. steel leaf thickness |
| Kit Contents | Two (2) MPS60 Adjustable Spring Hinges + One (1) MPB79 Ball Bearing Butt Hinge |
| Application | Single self-closing door opening |
Documentation
| Brand | McKinney |
| General - US Finishes | US26D - Satin Chrome |
| Hinge Type | Spring Hinge |
| Hinge Mounting | Full Mortise |
| Door Handing | Field Reversible |
| Hinge Height | 4.5" Hi |
| Hinge Width | 4.5" Wi |
| Hinge Grade/Thickness | Standard Wt .119 to .146 |
| Hinge Corners | Square |
| Base Material | Steel |
| Spring Hinge Type | Single Acting |
| Part Type | Hinge |
