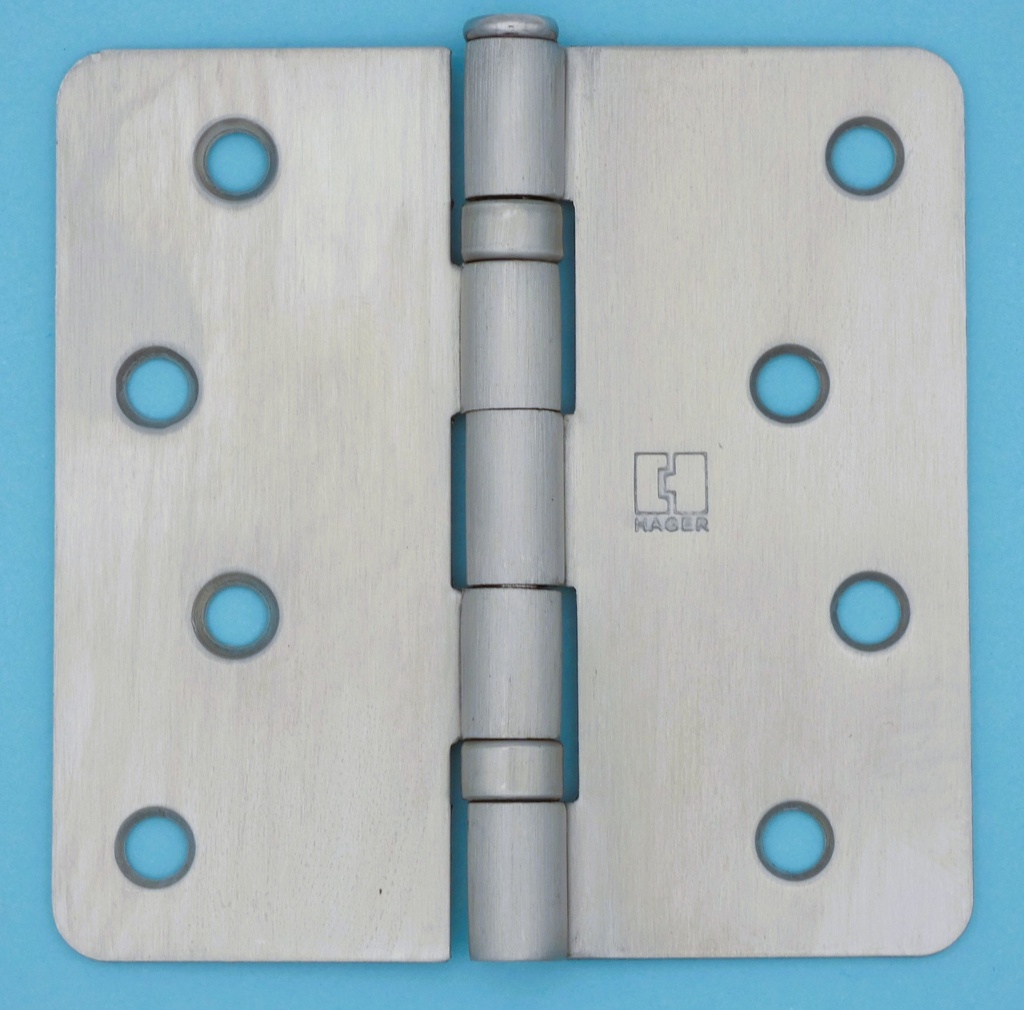

Hager RCBB1541 4" x 4" US32D Stainless Steel Ball Bearing Hinge
The Hager RCBB1541 is the pinnacle of residential door hardware, combining the smooth operation of ball bearings with the unmatched durability of non-ferrous stainless steel. Specifically designed for 1/4" radius door preps, this hinge is the ideal solution for coastal properties, high-humidity bathrooms, and heavy solid-core entry doors. The US32D Satin Stainless Steel finish provides a modern, clean aesthetic that is guaranteed to resist rust and corrosion for the life of your home.
High-Performance Ball Bearing Technology
Unlike standard residential hinges, the RCBB1541 features integrated ball bearings that significantly reduce friction and prevent the "metal-on-metal" wear that leads to sagging doors and squeaky hinges. This technology ensures a silent, effortless swing, making it a preferred choice for high-end residential projects where performance and luxury are paramount.
Built for Coastal and Harsh Environments
Crafted entirely from stainless steel with a matching stainless steel pin, this hinge is strictly non-ferrous. This makes it impervious to the salt air and moisture that typically destroy standard steel hinges. Whether you are building a beachfront estate or simply want the highest quality hardware for a master suite, the Hager RCBB1541 delivers industrial-strength protection in a refined residential profile.
Technical Specifications
| Feature | Specification |
| Model Number | Hager RCBB1541 |
| Dimensions | 4.0" x 4.0" (102mm x 102mm) |
| Hinge Type | Ball Bearing |
| Corner Radius | 1/4" Radius (Rounded Corners) |
| Material | Stainless Steel with Stainless Steel Pin |
| Finish | US32D (Satin Stainless Steel) |
| Gauge (Thickness) | 0.085" (Standard Residential) |
| Non-Ferrous | Yes (Corrosion Proof) |
| Packaging | 2 Hinges per box (Pricing is Per Hinge) |
Installation and Maintenance
- Fasteners: Each hinge is furnished standard with matching 3/4 x 9 FH wood screws. Machine screws for metal frame applications are available for an additional price.
- Lubrication: Hager residential hinges are shipped without factory lubrication. For the best long-term performance, Hager recommends lubricating the hinges with lithium grease during or immediately after installation.
- Special Orders: Specialized 3.5" x 3.5" sizes are available by quote for smaller door applications.
How to tell the difference between Residential Hinge and Commercial Hinge
| General - US Finishes | US32D - Satin Stainless Steel/ 630 |
| Brand | Hager |
| Hinge Height | 4.0" Hi |
| Hinge Width | 4.0" Wi |
| Hinge Grade/Thickness | Residental Wt .085 to .106 |
| Hinge Type | Full Mortise |
| Hinge Options | Ball Bearing |
| Base Material | Stainless Steel |
| Hinge Corners | 1/4" Radius |
