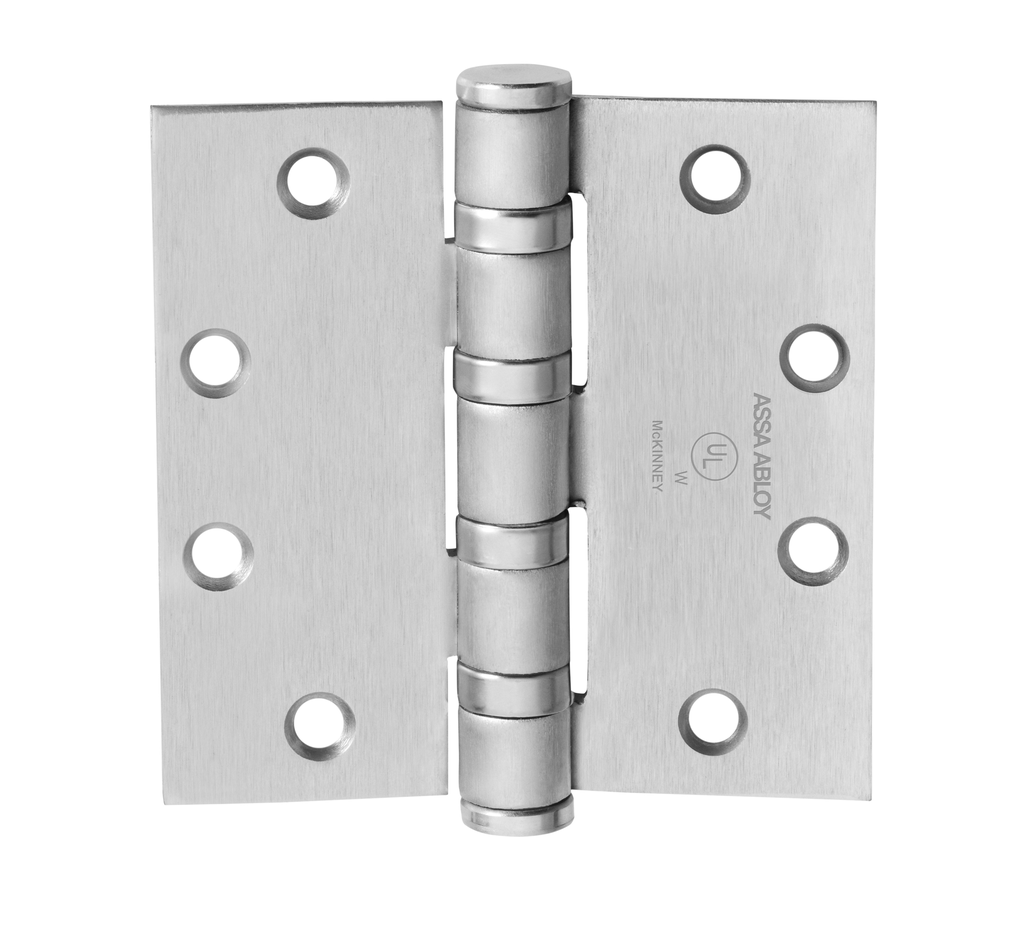

McKinney T4A3786 Heavy Weight Hinge | 5" x 4-1/2" US32D Satin Stainless Steel
The McKinney T4A3786 is a heavy-duty, industrial-grade architectural hinge designed for high-traffic commercial environments. This heavy weight, stainless steel 5-knuckle hinge is engineered to support the immense physical stress of oversized or extra-heavy doors. With a robust .190 gauge thickness, it serves as a premier solution for door restoration in facilities where long-term durability is mandatory, such as hospitals, schools, and high-security public buildings.
Advanced Security & Performance
- Integrated Security NRP (Non-Removable Pin): This hinge features an NRP set screw hidden within the barrel that is inaccessible when the door is closed. This provides a vital solution for commercial door security, preventing unauthorized door removal on outward-swinging exterior doors.
- Corrosion-Resistant Stainless Steel: Constructed from high-grade stainless steel (ANSI A5111), this hinge provides a permanent solution for door edge reinforcement in environments prone to moisture or harsh weather.
- Oil-Impregnated Bearings: The TA Prefix denotes self-lubricating, non-ferrous bearings. These ensure a maintenance-free, silent operation while providing maximum resistance to clogging, corrosion, and premature hinge failure.
- Fire-Rated Approved: Unlike brass-based alternatives, the US32D Satin Stainless Steel construction is UL-listed and approved for use on fire-rated door assemblies (up to 3 hours).
Technical Details & Specifications
- Brand: McKinney (ASSA ABLOY)
- Model Number: T4A3786
- Dimensions: 5" Height x 4-1/2" Width (Heavy Weight .190 Thickness)
- Finish: US32D (630) Satin Stainless Steel
- Bearing Type: Ball Bearing (Oil Impregnated)
- Pin Type: Non-Rising Stainless Steel Pin with Button Tips and NRP Set Screw.
- Standard Fasteners: Furnished with All Wood Screws (1-1/4" x 12) and All Machine Screws (1/2" x 12-24).
Why Choose the McKinney T4A3786?
The McKinney T4A3786 is the professional's choice for high-frequency openings that require absolute reliability. Whether you are performing a solution for door surface repair or securing a high-security perimeter, the heavy-weight stainless steel body ensures your hardware remains functional and aesthetically polished for the life of the building. It offers a permanent and cost-effective solution for door security that meets the most rigorous architectural and life-safety standards.
| General - US Finishes | US32D - Satin Stainless Steel/ 630 |
| Brand | McKinney |
| Hinge Height | 5.0" Hi |
| Hinge Width | 4.5" Wi |
| Hinge Grade/Thickness | Heavy Wt .180 to .190 |
| Hinge Type | Full Mortise |
| Hinge Options | Ball Bearing |
| Base Material | Stainless Steel |
| Hinge Corners | Square |
