McKinney T4A3786 NRP 5" x 5" 626 Heavy Weight Ball Bearing Hinge

https://www.doorwaysplus.com/web/image/product.template/4547/image_1920?unique=df05470

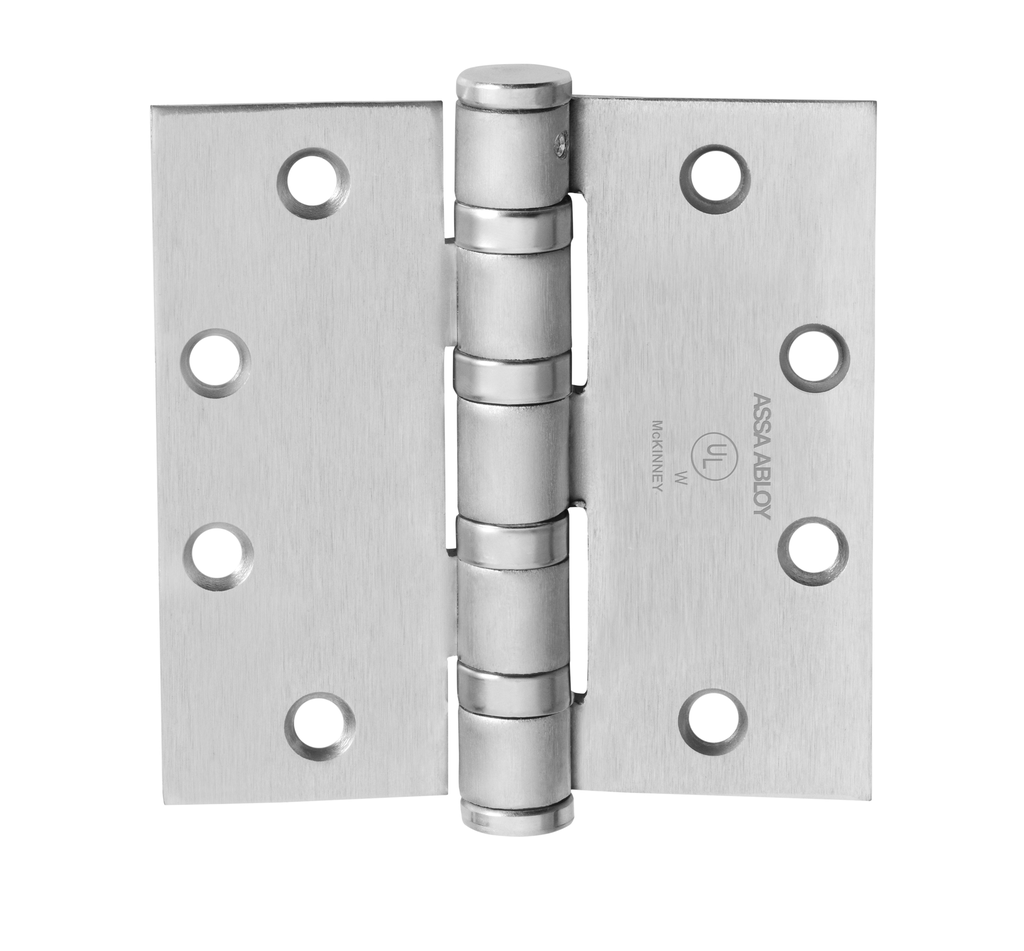

McKinney T4A3786 NRP 5" x 5" Bearing Steel Hinge, 5 Knuckle, Full Mortise with US26D Satin Chrome plated finish. Hinges are priced as Each.
Lead Time: 1-4 Days

37.89 37.89 USD 37.89

37.89

Not Available For Sale


  • General - US Finishes
  • Brand
  • Hinge Height
  • Hinge Width
  • Hinge Grade/Thickness
  • Hinge Type
  • Hinge Options
  • Hinge Options
  • Base Material
  • Hinge Corners

This combination does not exist.


Share :

McKinney T4A3786 NRP 5" x 5" Bearing Steel Hinge, 5 Knuckle, Full Mortise with US26D Satin Chrome plated finish

Oil Impregnated Bearing (TA Prefix)
One piece, non-ferrous, and self-lubricating bearings ensure even longer-lasting wear and resistance to clogging, corrosion, and hinge failure.

Hinges are for use on high traffic in commercial construction. Hinges are furnished with All Wood Screws (1 1/4" x 12 FPHW) and All Machine Screws (1/2" x 12-24 FPHM) Non Rising Steel Pin with Button Tips. Commercial Grade Hinges are .190 thickness with template screw hole pattern. NRP (Non Removable Pin) is a set screw driven into the barrel of the hinge that is inaccessible when the door is in the closed position.

Hinges are sold as Each
ANSI Number:  A8111

Understanding NRP Hinges

The NRP (Non-Removable Pin) feature is a crucial innovation in the world of door hardware. Here's why it's an essential aspect of secure door installations:

  1. Enhanced Security:
    The primary purpose of the NRP is to prevent unauthorized removal of door hinges from the outside. This is vital for exterior doors or any doors where security is a concern. The non-removable pin ensures that even if someone tries to tamper with the hinges, they can't simply remove the pin and detach the door.
  2. Optimal for Outward Swinging Doors:
    Many commercial and residential doors swing outward, which means the hinge pins are accessible from outside. This makes them vulnerable to intruders. The NRP feature effectively mitigates this risk by securing the hinge pin.
  3. Durability and Peace of Mind:
    With the NRP option, door users can enjoy greater peace of mind. The pin is designed to withstand tampering, offering long-term durability and reliability without compromising on the aesthetics or functionality of the door.

By opting for hinges with an NRP feature, you ensure a higher level of security that safeguards against forced entries through hinge manipulation.

When exploring these options, consider the specific requirements of your project, whether it's for residential or commercial use. Each of these types

General - US Finishes US26D - Satin Chrome
Brand McKinney
Hinge Height 5.0" Hi
Hinge Width 5.0" Wi
Hinge Grade/Thickness Heavy Wt .180 to .190
Hinge Type Full Mortise
Hinge Options Ball Bearing, NRP (Non Removable Pin)
Base Material Steel
Hinge Corners Square
