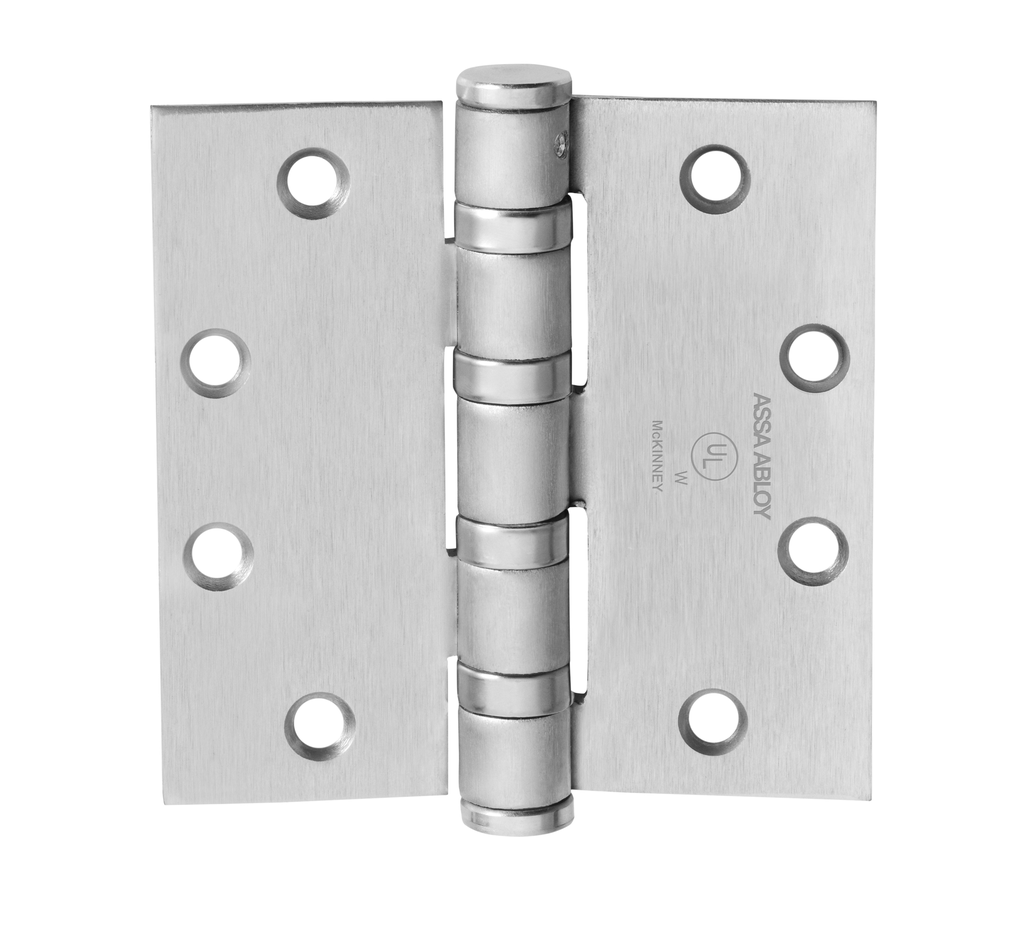

McKinney T4A3786 NRP 5" x 5" Bearing Hinge - US26D
McKinney T4A3786 NRP 5" x 5" Bearing Steel Hinge, 5 Knuckle, Full Mortise with US26D Satin Chrome plated finish. Hinges are priced as Each.
Lead Time: 1-4 Days
McKinney T4A3786 NRP 5" x 5" Bearing Steel Hinge, 5 Knuckle, Full Mortise with US26D Satin Chrome plated finish
Oil Impregnated Bearing (TA Prefix)
One piece, non-ferrous, and self-lubricating bearings ensure even longer-lasting wear and resistance to clogging, corrosion, and hinge failure.
Hinges are for use on high traffic in commercial construction. Hinges are furnished with All Wood Screws (1 1/4" x 12 FPHW) and All Machine Screws (1/2" x 12-24 FPHM) Non Rising Steel Pin with Button Tips. Commercial Grade Hinges are .190 thickness with template screw hole pattern. NRP (Non Removable Pin) is a set screw driven into the barrel of the hinge that is inaccessible when the door is in the closed position.
Hinges are sold as Each
ANSI Number: A8111
| General - US Finishes | US26D - Satin Chrome |
| Brand | McKinney |
| Hinge Height | 5.0" Hi |
| Hinge Width | 5.0" Wi |
| Hinge Grade/Thickness | Heavy Wt .180 to .190 |
| Hinge Type | Full Mortise |
| Hinge Options | Ball Bearing, NRP (Non Removable Pin) |
| Base Material | Steel |
| Hinge Corners | Square |
