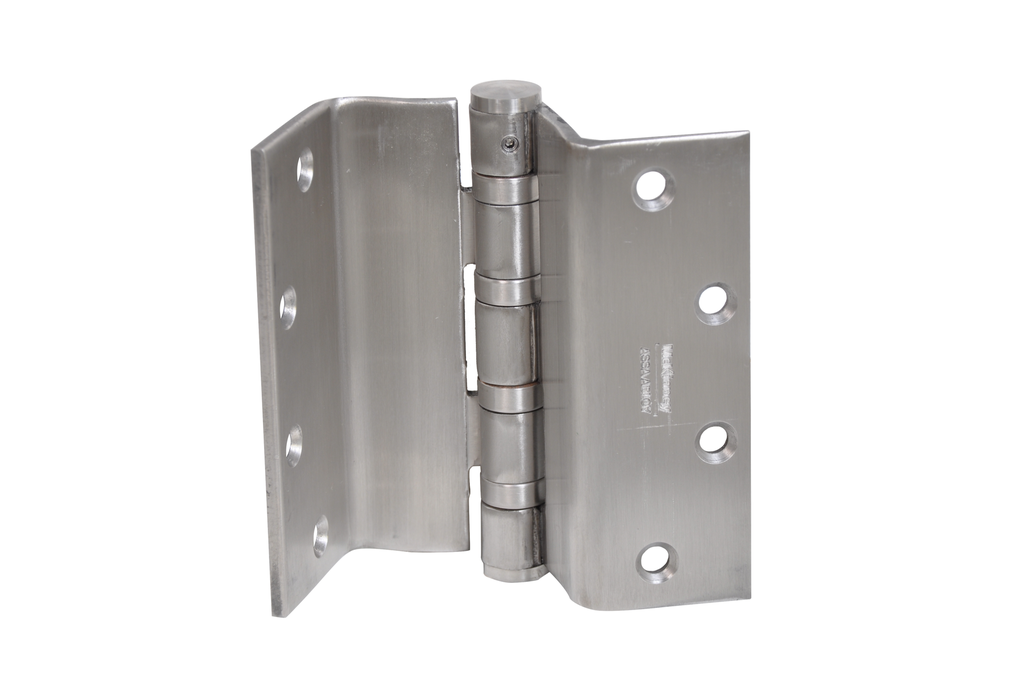

McKinney T4A3795 Heavy Weight Swing Clear Hinge | 4-1/2" US26D Satin Chrome
The McKinney T4A3795 Swing Clear Hinge is the premier industrial-strength solution for creating barrier-free architectural openings. Engineered specifically for high-frequency and heavy-duty wood or metal doors, this hinge moves the door edge and hinge barrel completely out of the clear opening when opened to 95 degrees. It is an indispensable solution for door restoration in hospitals, schools, and high-traffic public buildings, ensuring full compliance with ADA Requirements and ANSI A117.1 standards for accessibility.
Constructed with a massive .180 gauge thickness, the T4A3795 is built to withstand the rigors of institutional use, providing maximum clearance for the passage of hospital beds, equipment tables, and wheelchairs. The inclusion of a Non-Removable Pin (NRP) set screw ensures the hinge is fully reversible and provides a critical solution for commercial door security by preventing unauthorized pin removal on out-swinging doors. This heavy-weight hinge is the ultimate solution for door surface repair when updating existing frames for modern accessibility codes.
Key Features & Performance
- Barrier-Free Accessibility: Engineered to swing the door leaf entirely clear of the frame, providing an unobstructed passage that meets all ADA life-safety codes.
- Heavy Weight Durability: The .180 gauge steel construction is designed for high-frequency doors, acting as a permanent solution for door edge reinforcement.
- NRP High-Security Locking: Equipped with an NRP set screw, this hinge offers a vital solution for door security, making it ideal for exterior-facing corridors and high-security zones.
- Satin Chrome (US26D) Finish: The professional plated finish resists heavy physical wear while acting as a remodeling scar plate to cover old hardware footprints.
- Versatile Application: Designed for square-edged doors and compatible with pressed steel jambs without the need for additional specialized reinforcing.
Technical Details & Specifications
- Brand: McKinney (ASSA ABLOY)
- Model Number: T4A3795
- Dimensions: 4-1/2" Height (Full Mortise)
- Hinge Type: 5-Knuckle Swing Clear Bearing Hinge
- Thickness: Heavy Weight .180 Gauge
- Finish: US26D (626) Satin Chrome Plated Steel
- ANSI Number: A8121
- Fasteners Included: Furnished with All Wood Screws (1-1/4" x 12) and All Machine Screws (1/2" x 12-24).
Important Installation Notes
The McKinney T4A3795 alters the normal pivoting point of the door. If your project requires the use of overhead door closers, friction stays, or door holders, please consult the hardware manufacturer to ensure the device is compatible with a swing-clear application. For doors with a beveled hinge stile, the T4A4795 is the recommended alternative.
Why Choose the McKinney T4A3795?
The McKinney T4A3795 is the contractor's choice for heavy-duty institutional retrofitting. By utilizing swing clear technology, you can achieve a wider clear opening without the astronomical cost of structural frame widening. It offers a permanent and cost-effective solution for door security and accessibility, delivering the industrial-grade reliability and polished appearance required for modern healthcare and educational facilities.
| General - US Finishes | US26D - Satin Chrome |
| Brand | McKinney |
| Hinge Height | 4.5" Hi |
| Hinge Grade/Thickness | Heavy Wt .180 to .190 |
| Hinge Type | Swing Clear |
| Hinge Options | Swing Clear - Sq. Edge Dr, Ball Bearing, NRP (Non Removable Pin) |
| Base Material | Steel |
| Hinge Corners | Square |
