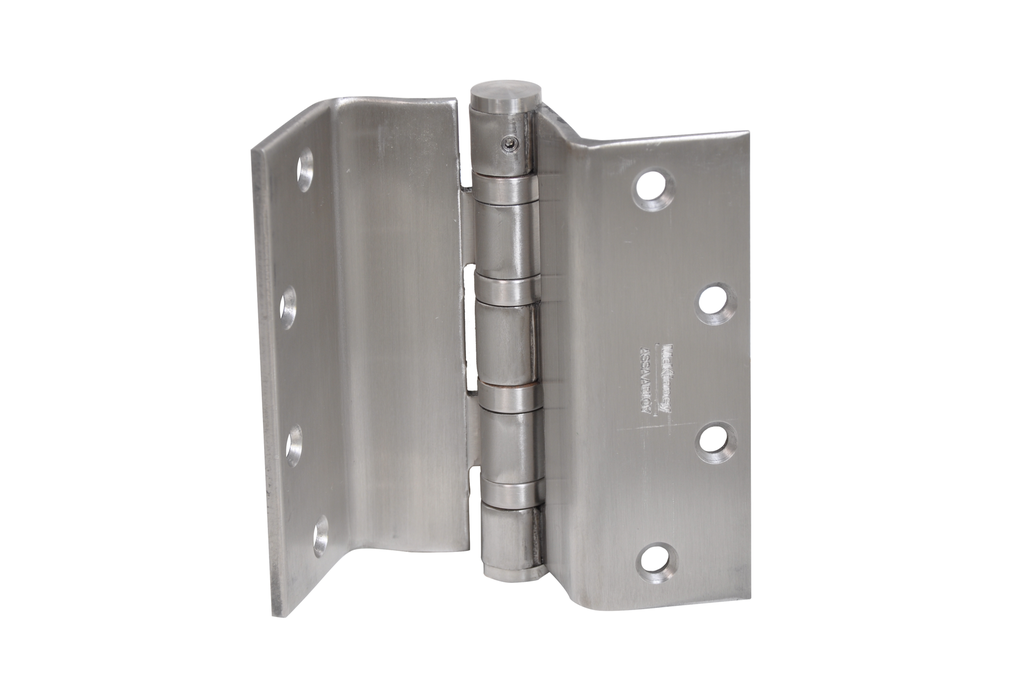

McKinney T4A4795 Heavy Weight Swing Clear Hinge | 4-1/2" US26D Satin Chrome for Beveled Doors
The McKinney T4A4795 Swing Clear Hinge is the premier industrial-strength solution for achieving barrier-free accessibility in high-traffic environments. Specifically engineered for beveled edged doors, this heavy-duty hinge moves the door leaf and hinge barrel completely out of the clear opening when opened to 95 degrees. It is a critical solution for door restoration in hospitals, surgery centers, and schools where maximizing passage width for beds, equipment tables, and wheelchairs is mandatory for ADA Requirements and ANSI A117.1 compliance.
Constructed with a robust .180 gauge thickness, the T4A4795 is designed to support high-frequency heavy wood or metal doors without sagging. The integrated Non-Removable Pin (NRP) set screw ensures the hinge is fully reversible and provides an essential solution for commercial door security by preventing unauthorized pin removal on outward-swinging doors. This hinge serves as a permanent solution for door surface repair when retrofitting existing frames to meet modern life-safety and accessibility codes.
Key Features & Performance
- Specialized Beveled Leaf: Precision-designed for doors with a beveled hinge stile, ensuring a flush, professional fit where square-edged hinges are not applicable.
- Barrier-Free Passage: Moves the door edge entirely clear of the frame, providing an unobstructed opening that protects the door from impact damage by carts and medical equipment.
- Industrial Heavy Weight Build: The .180 gauge steel construction offers superior structural integrity, acting as a permanent solution for door edge reinforcement.
- NRP Security Locking: Equipped with an NRP set screw, this hinge is a vital solution for door security in high-security zones and exterior-facing corridors.
- Satin Chrome (US26D) Finish: The high-quality plated finish resists physical wear and functions as a remodeling scar plate to cover old hardware footprints.
Technical Details & Specifications
- Brand: McKinney (ASSA ABLOY)
- Model Number: T4A4795 (For Beveled Edged Doors)
- Dimensions: 4-1/2" Height (Full Mortise)
- Hinge Type: 5-Knuckle Heavy Weight Swing Clear Bearing Hinge
- Thickness: .180 Gauge
- Finish: US26D (626) Satin Chrome Plated Steel
- ANSI Number: A8121
- Fasteners Included: Furnished with All Wood Screws (1-1/4" x 12) and All Machine Screws (1/2" x 12-24).
Important Installation Notes
The McKinney T4A4795 alters the normal pivoting point of the door. If your project requires overhead door closers, friction stays, or door holders, please consult the hardware manufacturer for specific application details to ensure proper arm geometry. For doors with square hinge stiles, the T4A3795 is the recommended alternative.
Why Choose the McKinney T4A4795?
The McKinney T4A4795 is the professional’s choice for institutional retrofitting. By utilizing swing clear technology, you can achieve a wider clear opening without the astronomical cost of structural frame widening or wall reconstruction. It offers a permanent and cost-effective solution for door security and accessibility, delivering the industrial-grade reliability and polished appearance required for modern healthcare and educational facilities.
| General - US Finishes | US26D - Satin Chrome |
| Brand | McKinney |
| Hinge Height | 4.5" Hi |
| Hinge Grade/Thickness | Heavy Wt .180 to .190 |
| Hinge Type | Swing Clear |
| Hinge Options | Swing Clear - Bev. Edge Dr, Ball Bearing, NRP (Non Removable Pin) |
| Base Material | Steel |
| Hinge Corners | Square |
