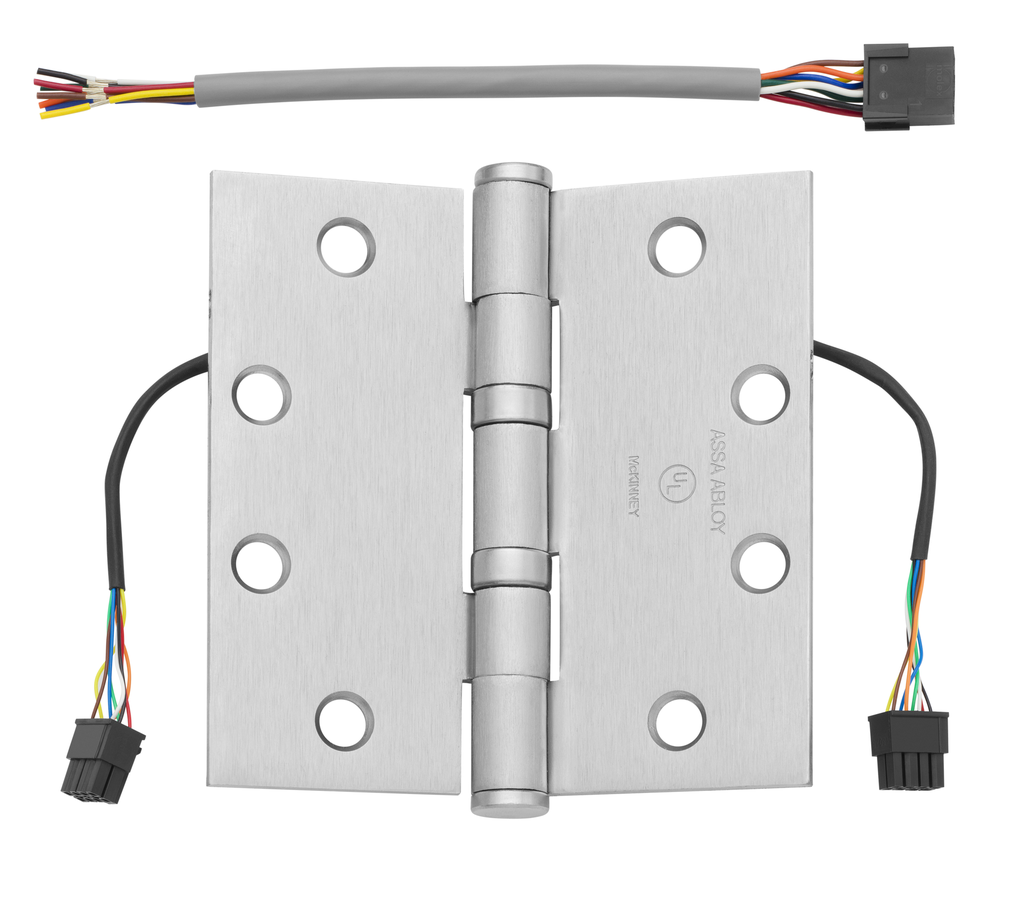

McKinney TA2714 QC8 ElectroLynx Electric Hinge | 4-1/2" x 4-1/2" US26D Finish
The McKinney TA2714 QC8 ElectroLynx Electric Hinge is the industry-leading "plug-and-play" solution for powering electrified door hardware. Featuring the patented ElectroLynx® Quick Connect system, this 8-wire, 4-circuit hinge is specifically engineered to transfer power from the source to ASSA ABLOY brand mortise locks. It serves as a definitive solution for door restoration when upgrading to electronic access control, providing a clean, concealed wiring path that eliminates the risk of pinched or exposed wires.
Constructed with a standard .134 gauge thickness, the TA2714 is a vital solution for door security in commercial office buildings, clinics, and schools. The Oil Impregnated Bearings (TA Prefix) utilize a one-piece, non-ferrous, self-lubricating design that ensures smooth operation while resisting corrosion and clogging. This hinge is an essential component for any solution for door surface repair or hardware retrofit, as it maintains the door's fire rating and structural integrity while enabling advanced security features.
Key Features & Performance
- ElectroLynx® Quick Connect: Utilizes an installer-friendly 8-position connector to provide a "no-guesswork" solution for door restoration and rapid wiring.
- 8-Wire (4-Circuit) Capacity: Features 28-gauge multi-strand wires rated for 4 amp continuous @ 24 volts AC/DC, ideal for electrified mortise locks and card readers.
- 3-Hour Fire Rating: This UL Listed hinge is certified for use on fire-rated door assemblies for up to 3 hours, ensuring full safety code compliance.
- Satin Chrome Finish (US26D): The professional plated finish provides a durable remodeling scar plate effect, matching standard commercial hardware while resisting wear.
- Self-Lubricating Bearings: The TA-series bearings act as a permanent solution for door edge reinforcement, preventing hinge failure even in high-use environments.
Technical Details & Specifications
- Brand: McKinney (ASSA ABLOY)
- Model Number: TA2714 QC8
- Dimensions: 4-1/2" x 4-1/2" (Full Mortise)
- Finish: US26D (Satin Chrome)
- Wire Count: 8 Wires / 4 Circuits
- Bearing Type: Oil Impregnated (TA) - 5 Knuckle
- Thickness: .134 Standard Weight
- ANSI Number: A8112
- Fasteners: Furnished with All Wood Screws (1-1/4" x 12 FPHW) and All Machine Screws (1/2" x 12-24 FPHM).
Why Choose the McKinney TA2714 QC8?
The McKinney TA2714 QC8 is the professional’s choice for reliable power transfer to ASSA ABLOY hardware. By concealing the electrical connection within the hinge leaves and using brass eyelets for wire protection, it provides a much more durable solution for door security than traditional loops or power transfers. It delivers the industrial-grade performance, ease of installation, and polished architectural look required for modern corporate and institutional facilities.
| General - US Finishes | US26D - Satin Chrome |
| Brand | McKinney |
| Hinge Height | 4.5" Hi |
| Hinge Width | 4.5" Wi |
| Hinge Grade/Thickness | Standard Wt .119 to .146 |
| Hinge Type | Full Mortise, Electric Hinge |
| Hinge Options | Ball Bearing |
| Electric Hinge Options | QC8 - Electrolynx, 8 Wire, Power Transfer |
| Base Material | Steel |
| Hinge Corners | Square |
