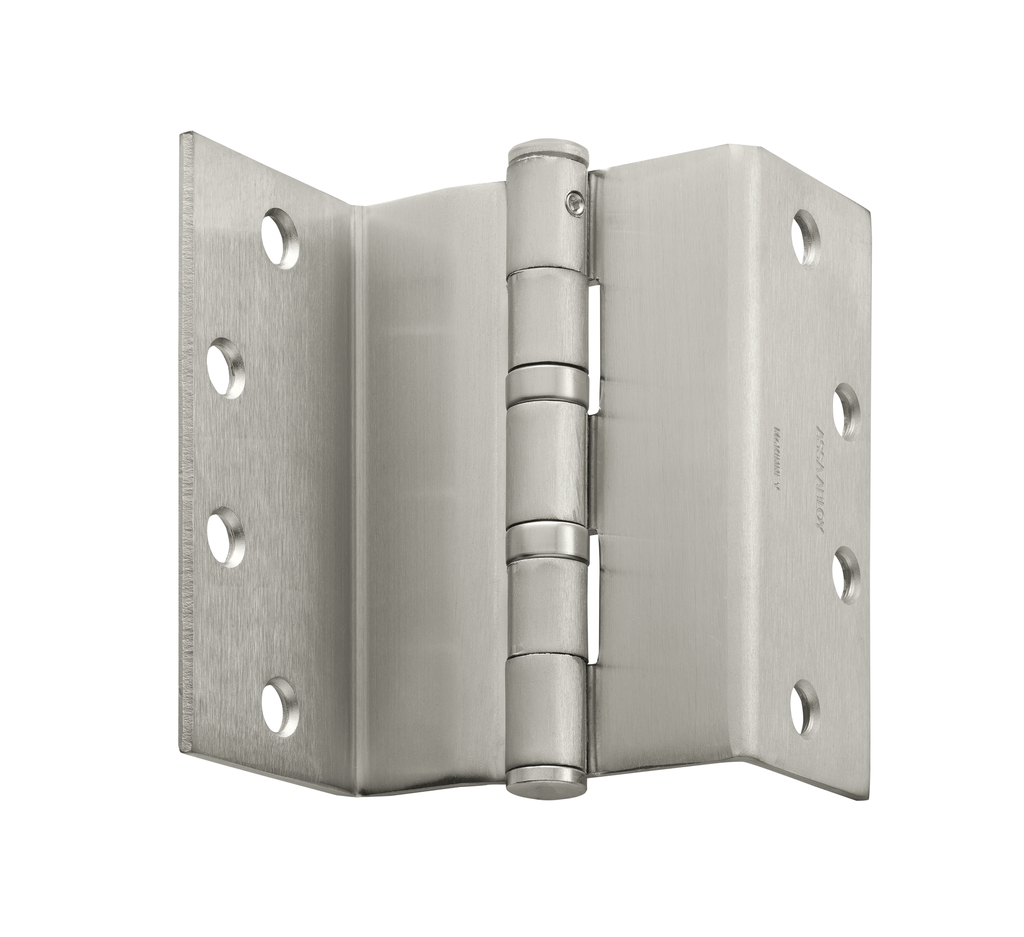

McKinney TA2895 Swing Clear Bearing Hinge | 4-1/2" US26D Satin Chrome
The McKinney TA2895 Swing Clear Hinge is the definitive architectural solution for creating barrier-free environments. Engineered to swing the door completely out of the clear opening when opened at just 95°, this hinge is a critical solution for door restoration in healthcare facilities, schools, and public buildings. By moving the door edge and hinge barrel away from the frame, it provides maximum clearance for the passage of hospital beds, wheelchairs, and industrial equipment, ensuring full compliance with ADA Requirements and ANSI A117.1 standards.
Constructed from high-quality steel with a US26D Satin Chrome finish, the TA2895 is designed for standard-weight, medium-frequency doors. It features a 5-knuckle design with a Non-Removable Pin (NRP) as standard, which not only makes the hinge reversible for left- or right-hand applications but also serves as a robust solution for commercial door security. This hinge is an essential solution for door surface repair when widening an existing doorway for accessibility without the need for expensive structural frame alterations.
Key Features & Performance
- Barrier-Free Swing Clear Design: Moves the door leaf and hinge barrel out of the way, providing a permanent solution for door edge reinforcement and protecting doors from damage caused by carts and equipment.
- ADA & ANSI Compliant: Specifically engineered to meet life-safety and accessibility codes for unobstructed passage in institutional settings.
- NRP Security Pin: The Non-Removable Pin set screw prevents unauthorized removal of the door, offering an integrated solution for door security on outward-swinging corridor doors.
- Versatile Standard Weight: With a .134 gauge thickness, it integrates seamlessly into pressed steel jambs without the need for specialized reinforcement.
- Maintenance-Free Bearings: Features high-performance bearings for smooth, silent operation in high-traffic public hallways.
Technical Details & Specifications
- Brand: McKinney (ASSA OBLOY)
- Model Number: TA2895 (For Square Edged Doors)
- Dimensions: 4-1/2" Height (Full Mortise)
- Finish: US26D (626) Satin Chrome
- Gauge: .134 Standard Weight
- Security Feature: NRP (Non-Removable Pin) Set Screw
- Standards: ANSI A8122; Meets ADA Requirements
- Fasteners Included: Furnished with All Wood Screws (1-1/4" x 12) and All Machine Screws (1/2" x 12-24).
Important Installation Notes
The McKinney TA2895 alters the normal pivoting point of the door. When installing this hinge in conjunction with overhead door closers, friction stays, or door holders, please consult the hardware manufacturer to ensure proper arm geometry and application details. For doors with a beveled hinge stile, the TA4895 is the recommended alternative.
Why Choose the McKinney TA2895?
The McKinney TA2895 is the professional’s choice for healthcare and institutional retrofits. Rather than widening a masonry opening, replacing standard hinges with swing clear technology is a cost-effective and permanent solution for door security and accessibility. It delivers industrial-grade reliability while maintaining a clean, modern aesthetic that stands up to the rigors of hospital and school environments.
| General - US Finishes | US26D - Satin Chrome |
| Brand | McKinney |
| Hinge Height | 4.5" Hi |
| Hinge Grade/Thickness | Standard Wt .119 to .146 |
| Hinge Type | Swing Clear |
| Hinge Options | Swing Clear - Sq. Edge Dr, Ball Bearing, NRP (Non Removable Pin) |
| Base Material | Steel |
| Hinge Corners | Square |
