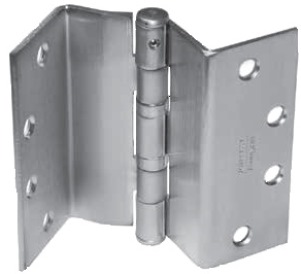

McKinney TA4895 Swing Clear Bearing Hinge | 4-1/2" US26D Satin Chrome for Beveled Doors
The McKinney TA4895 Swing Clear Hinge is a specialized architectural solution designed to create barrier-free openings in high-standard commercial environments. Specifically engineered for beveled edged doors, this hinge moves the door edge and hinge barrel completely out of the clear opening when opened at 95 degrees. It is a critical solution for door restoration in hospitals, schools, and public buildings where maximizing clear width is required for the passage of beds, carts, and wheelchairs, ensuring full compliance with ADA Requirements and ANSI A117.1 standards.
Constructed from durable steel with a professional US26D Satin Chrome finish, the TA4895 is designed for standard-weight, medium-frequency applications. It features a 5-knuckle design and a Non-Removable Pin (NRP) as standard, which not only makes the hinge reversible but also serves as a robust solution for commercial door security. By providing maximum clearance without structural frame modifications, this hinge is an essential solution for door surface repair and accessibility retrofitting.
Key Features & Performance
- Specialized Beveled Leaf: Designed specifically for doors with a beveled hinge stile, providing a precise fit where square hinges like the TA2895 are not applicable.
- Barrier-Free Accessibility: Swings the door leaf entirely clear of the frame, providing an unobstructed passage that meets all ADA and ANSI life-safety codes.
- NRP High-Security Locking: The integrated Non-Removable Pin set screw prevents the door from being removed from the frame, offering an essential solution for door security on out-swinging doors.
- Standard Weight Durability: With a .134 gauge thickness, this hinge is compatible with pressed steel jambs without requiring specialized reinforcing.
- Satin Chrome (US26D) Finish: The high-quality plated finish resists physical wear and acts as a professional remodeling scar plate to cover old hardware footprints.
Technical Details & Specifications
- Brand: McKinney (ASSA ABLOY)
- Model Number: TA4895 (For Beveled Edged Doors)
- Dimensions: 4-1/2" Height (Full Mortise)
- Finish: US26D (626) Satin Chrome Plated Steel
- Thickness: .134 Standard Weight
- ANSI Number: A8122
- Fasteners Included: Furnished with All Wood Screws (1-1/4" x 12) and All Machine Screws (1/2" x 12-24).
Important Installation Notes
The McKinney TA4895 alters the normal pivoting point of the door. When using this hinge in conjunction with overhead door closers, friction stays, or door holders, please consult the hardware manufacturer for specific application details to ensure proper arm geometry. For doors with a square hinge stile, please use the TA2895.
Why Choose the McKinney TA4895?
The McKinney TA4895 is the professional’s choice for healthcare and institutional projects requiring compliance for beveled door profiles. Rather than undertaking expensive structural widening, utilizing swing clear technology provides a permanent and cost-effective solution for door security and accessibility. It delivers industrial-grade reliability and a polished appearance that meets the rigorous demands of modern public facilities.
| General - US Finishes | US26D - Satin Chrome |
| Brand | McKinney |
| Hinge Height | 4.5" Hi |
| Hinge Grade/Thickness | Standard Wt .119 to .146 |
| Hinge Type | Swing Clear |
| Hinge Options | Swing Clear - Bev. Edge Dr, Ball Bearing, NRP (Non Removable Pin) |
| Base Material | Steel |
| Hinge Corners | Square |
