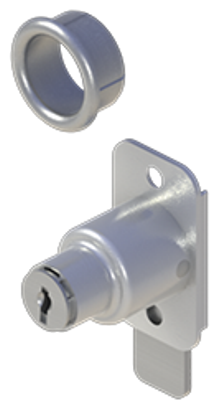

Hager 9268 By-pass Sliding Door Lock – US2C
This item is discontinued - limited quantity on hand
The Hager 9268 is a specialized, compact sliding door lock designed specifically for by-pass door configurations. This push-bolt style lock provides a secure and discreet locking mechanism for sliding panels in residential or light-commercial settings. As a discontinued product with limited quantity on hand, the 9268 is a critical find for maintaining existing installations or completing hardware sets in buildings where this specific Hager model was originally specified.
Versatile and Low-Profile Security
The Hager 9268 is engineered for versatility, accommodating a wide range of door thicknesses from 3/4" to 1-3/4". This makes it an ideal solution for everything from thin cabinet and wardrobe sliders to standard-thickness commercial by-pass doors. The lock cylinder is designed to fit into a simple 1-inch (25mm) hole, allowing for a quick and clean installation without extensive door preparation.
Durable Design and Keying Options
Finished in US26C (Zinc Plated), this lock provides reliable corrosion resistance and a neutral aesthetic that blends with most commercial hardware. We currently have limited stock available in Keyed Different (KD) configurations. Because this is a legacy product, it is a high-value item for maintenance professionals needing an exact match for Hager By-pass Lock replacements.
Technical Specifications
| Feature | Specification |
| Model Number | Hager 9268 |
| Lock Type | By-pass / Sliding Door Push Lock |
| Bore Hole Size | 1" (25mm) Diameter |
| Door Thickness Range | 3/4" (19mm) to 1-3/4" (44mm) |
| Finish | US2C (Zinc Plated) |
| Keying Status | Keyed Different (KD) - 2 units remaining |
| Availability | Discontinued - Limited Stock |
| Material | Steel/Zinc Components |
Installation Requirements
- Standard Prep: Requires a single 1-inch diameter hole through the front door panel.
- Compatibility: Works effectively on bypass doors where the lock body can intercept the secondary door panel to prevent sliding.
Please Note: This item is factory discontinued. Once our current stock of Keyed Different units is sold, this item will no longer be available.
| Keying | Keyed Random/Different (Standard) |
| Brand | Hager |
| Trackset Type | Bypass, Bypass w/ Fascia |
