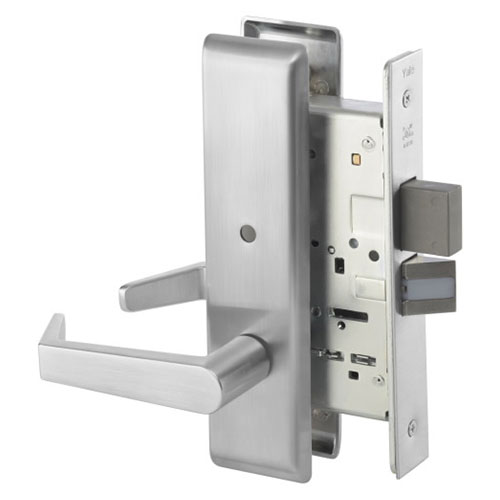

Accentra AUCN 8802FL Mortise Lockset Privacy Function - Yale
Accentra Mortise Lockset AUCN 8802FL US26D Privacy Function
Lead Time: 2-3 Days
Accentra Mortise Lockset AU CN 8802FL Privacy Function, 626/US26D (Satin Chrome)
All Locks are furnished as RH (Right Hand) and can be re-handed in the field
Function Info:
| • Latchbolt retracted by knob/lever either side. • Deadbolt operated by thumbturn inside. • When the deadbolt is projected, outside knob/lever is automatically locked. • Anti-panic operation. Operating inside knob/lever retracts the latchbolt and deadbolt simultaneously, automatically unlocking outside knob/lever. • In emergency, deadbolt may be unlocked from outside by E203 emergency key, supplied. |
Features:
• Heavy-duty trim for resistance against damage and vandalism
• Functions available for any industrial or commercial application
• Field adjustable lever handing and latchbolt
• ANSI/BHMA Certified Grade 1 for long-life and durability
• UL/cUL listed for 3 hour fire rated doors
• 10 year mechanical warranty
• Available in a variety of attractive trims and finishes
Yale 8800FL Specifications:
Armor Front: 8" x 1-1/4"
Backset: 2-3/4" only
Case: Wrought steel, zinc dichromate
Deadbolt: 1" throw, cast stainless steel
Door Thickness: 1-3/4" standard
Handing: Field reversible
Hubs: 3/8" solid steel, fine-blanked and heat treated for additional strength
Latchbolt: 3/4" throw, stainless steel one-piece anti-friction
Strike: 4-7/8" ASA strike standard
| Finish with BHMA code | 626 - US26D Satin Chrome |
| Brand | Accentra (formally Yale Security) |
| ANSI Mortise Lock Function | F22 - Privacy |

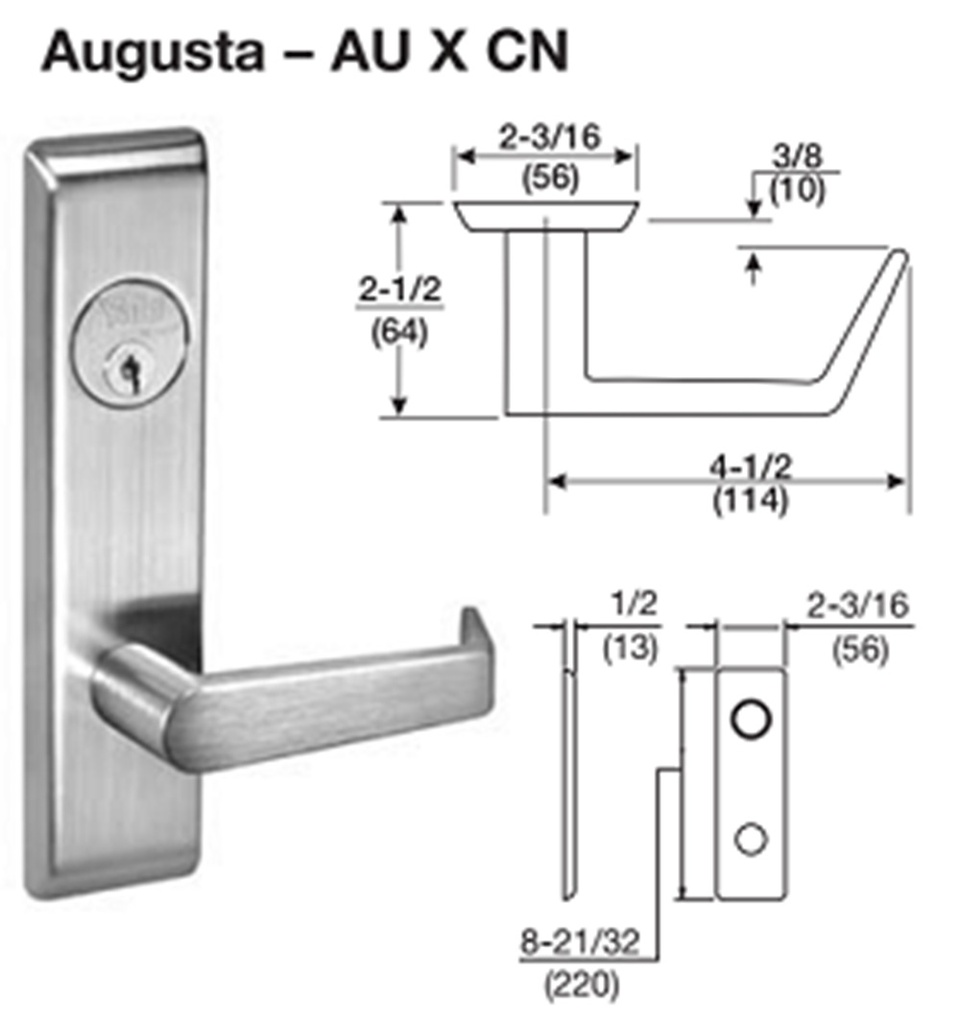

| Trim Design | AUCN |
| Series | Accentra - 8800 Series |
| Occupancy Indicator | No |
