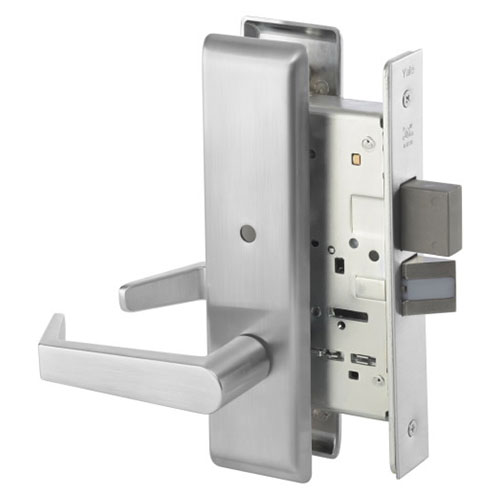

Accentra AUCN 8802FL Mortise Lockset – Privacy Function
Function Info:
| • Latchbolt retracted by knob/lever either side. • Deadbolt operated by thumbturn inside. • When the deadbolt is projected, outside knob/lever is automatically locked. • Anti-panic operation. Operating inside knob/lever retracts the latchbolt and deadbolt simultaneously, automatically unlocking outside knob/lever. • In emergency, deadbolt may be unlocked from outside by E203 emergency key, supplied. |
The Accentra AUCN 8802FL Mortise Lockset (formerly Yale) is a high-performance, Grade 1 commercial lock designed for environments where privacy is paramount, such as restrooms, changing areas, and private offices. Featuring the professional AU Augusta Lever and CN Escutcheon trim in a sleek 626/US26D Satin Chrome finish, this lockset offers a perfect blend of architectural style and industrial-strength security.
Built to exceed industry standards, the 8802 Privacy Function provides occupants with reliable privacy control while ensuring facility managers have emergency access capabilities and life-safety compliance through its anti-panic egress design.
Functional Performance: Privacy (8802)
- User-Controlled Privacy: The latchbolt is retracted by the lever from either side unless the 1" stainless steel deadbolt is projected via the interior thumbturn.
- Automatic Lockdown: Projecting the deadbolt automatically locks the exterior lever, providing a clear visual and physical indicator that the room is occupied.
- Anti-Panic Egress: For maximum safety, operating the inside lever retracts both the latchbolt and the deadbolt simultaneously, automatically unlocking the outside lever for immediate exit.
- Emergency Access: In the event of an emergency, the deadbolt can be retracted from the exterior using the included E203 emergency key, ensuring safety without compromising security.
Key Features & Certifications
- ANSI/BHMA Grade 1 Certified: The highest rating for commercial hardware, ensuring the lockset can withstand millions of cycles in the most demanding environments.
- 3-Hour Fire Rating: UL/cUL listed for use on fire-rated door assemblies to meet strict building and safety codes.
- Vandal-Resistant Construction: The AUCN heavy-duty trim is engineered to resist wear, high-traffic abuse, and intentional vandalism.
- Field Reversible: Furnished as Right Hand (RH) but easily re-handed in the field to accommodate any door swing.
- 10-Year Mechanical Warranty: A decade of manufacturer-backed protection on all mechanical components.
Technical Specifications
| Feature | Specification |
| Model | Accentra (Yale) AUCN 8802FL |
| Function | 8802 Privacy |
| Trim Design | Augusta Lever (AU) with CN Escutcheon |
| Finish | 626/US26D (Satin Chrome) |
| Backset | 2-3/4" Only |
| Armor Front | 8" x 1-1/4" |
| Deadbolt | 1" Throw, Cast Stainless Steel |
| Latchbolt | 3/4" Throw, Stainless Steel Anti-Friction |
| Door Thickness | 1-3/4" Standard |
| Case Material | Wrought Steel, Zinc Dichromate |
| Strike | 4-7/8" ASA Strike Standard |
| Finish with BHMA code | 626 - US26D Satin Chrome |
| Brand | Accentra (formally Yale Security) |
| ANSI Mortise Lock Function | F22 - Privacy |
| Trim Design | AUCN |
| Series | Accentra - 8800 Series |
| Occupancy Indicator | No |
