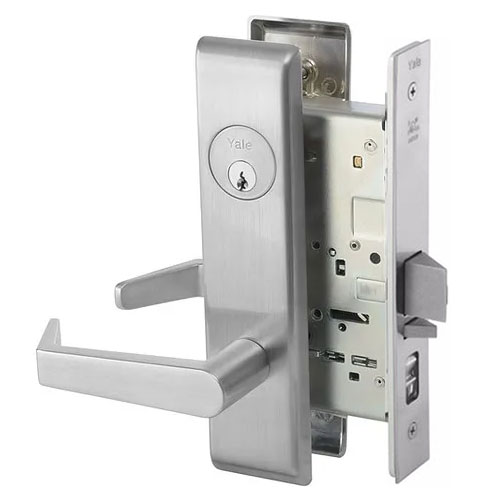

Accentra AUCN 8807FL Mortise Lockset – Entry/Office Function (Less Cylinder)
Function Info:
| • For office doors where locking is required. • Latchbolt retracted by knob/lever either side, except when outside knob/lever is locked by stopwork activator (toggle). • When outside knob/lever is locked, latchbolt is operated by key outside and knob/lever inside. • Deadlocking latchbolt |
The Accentra AUCN 8807FL Mortise Lockset (formerly Yale) is a premium, Grade 1 commercial lock designed for office environments and entryways where flexible security is required. Featuring the popular AU Augusta Lever paired with the CN Escutcheon trim, this hardware comes in a professional 626/US26D Satin Chrome finish that resists fingerprints and heavy wear.
As a centerpiece of the 8800 series, the 8807 Entry Function allows for a "passage" mode via a manual toggle, making it the perfect solution for offices that need to remain unlocked during business hours and strictly secured after-hours.
Functional Performance: Entry/Office (8807)
- Toggle Stopwork Control: The latchbolt is retracted by the lever from either side, unless the outside lever is locked using the stopwork activator (toggle) located on the armor front.
- Keyed Entry: Once the exterior lever is locked via the toggle, entry is only possible by using a key to retract the latchbolt.
- Constant Egress: The inside lever is always active, allowing occupants to exit at any time for maximum safety.
- Deadlocking Latchbolt: This security feature prevents the latch from being "jimimmied" or retracted with a credit card, ensuring the door remains secure against forced entry.
Key Features & Certifications
- ANSI/BHMA Grade 1 Certified: The highest industry rating for durability, ensuring this lock can handle millions of cycles in high-traffic commercial buildings.
- 3-Hour Fire Rating: UL/cUL listed for use on fire-rated door assemblies, maintaining life-safety standards in any facility.
- Vandal-Resistant Trim: The AUCN heavy-duty escutcheon provides a reinforced footprint that resists damage and tampering.
- Field Reversible: While furnished as Right Hand (RH), the handing can be easily reversed in the field to accommodate any door swing.
- 10-Year Mechanical Warranty: Backed by the long-standing reliability of the Accentra/Yale heritage.
Technical Specifications
This lockset is sold less cylinder. It is compatible with standard 1-1/8" Mortise Cylinders (such as the 2153 or 2553) with a 2160 cam.
| Feature | Specification |
| Series | Accentra (Yale) 8800FL |
| Function | 8807 Entry / Office |

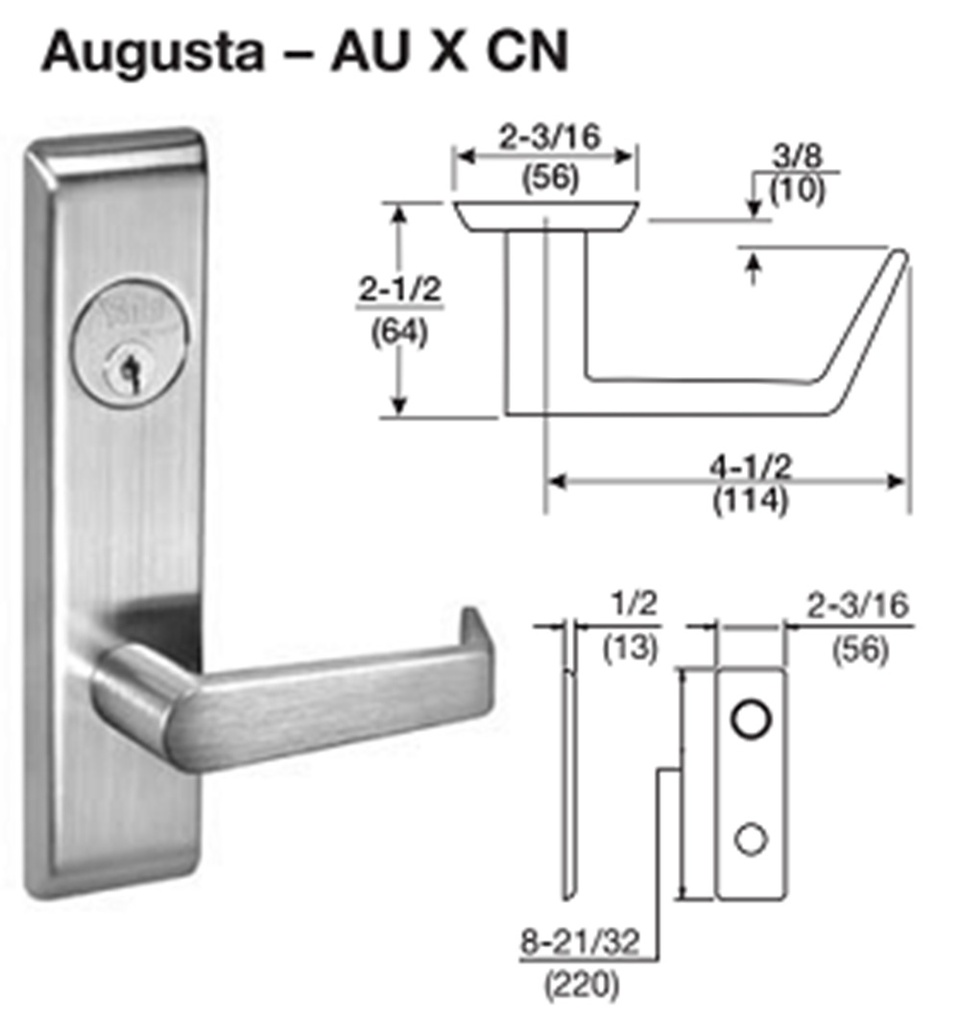

| Trim Design | Augusta Lever (AU) with CN Escutcheon |
| Finish | 626/US26D (Satin Chrome) |
| Backset | 2-3/4" Only |
| Armor Front | 8" x 1-1/4" |
| Latchbolt | 3/4" Throw, Stainless Steel Anti-Friction |
| Door Thickness | 1-3/4" Standard |
| Case Material | Wrought Steel, Zinc Dichromated |
| Hubs | 3/8" Solid Steel, Heat Treated |
| Strike | 4-7/8" ASA Strike Standard |
| Finish with BHMA code | 626 - US26D Satin Chrome |
| Brand | Accentra (formally Yale Security) |
| ANSI Mortise Lock Function | F04 - Office Entry |
| Trim Design | AUCN |
| Series | Accentra - 8800 Series |
