Accentra AUR 8807FL Entry Mortise Lock – Grade 1 Security (Less Mortise Cylinder)

Function Info:

• For use on office and entry doors where locking control is required.
• Latchbolt retracted by lever on either side, unless outside lever is locked by the toggle (stopwork).
• When outside lever is locked, latchbolt is operated by key outside and lever inside.
• Inside lever is always active for immediate egress.
• Deadlocking latchbolt prevents unauthorized manipulation.

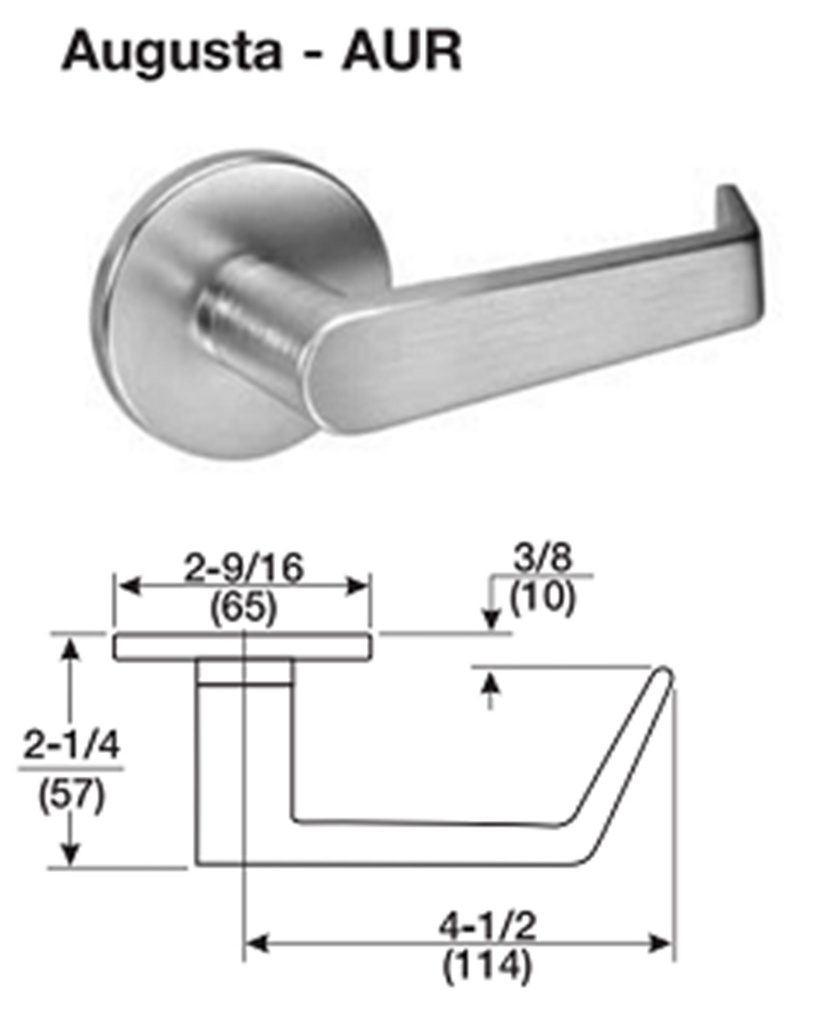

The Entry Function (ANSI F04) is the versatile standard for office environments and commercial suites. On the Accentra AUR 8807FL, the user has the flexibility to keep the door unlocked for free passage or to engage the stopwork activator (toggle) to lock the exterior lever. Once locked, entry is only permitted via a mechanical key, while the interior Augusta (AUR) lever remains active at all times, ensuring that occupants are never locked inside. This configuration provides a perfect balance between daytime accessibility and after-hours security.

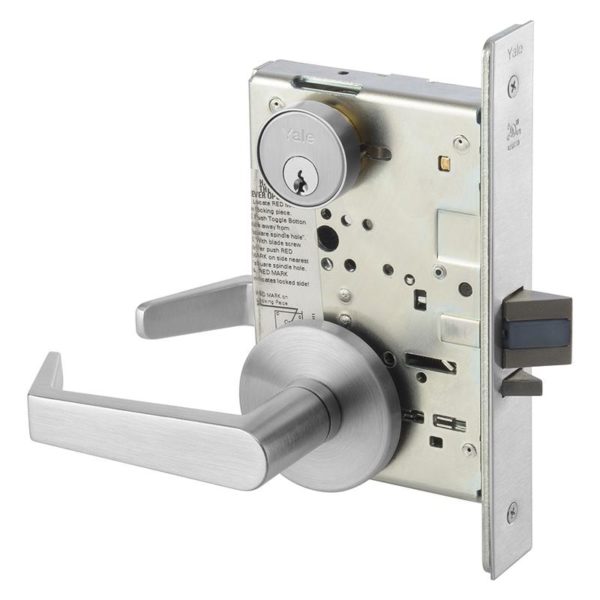

The Accentra AUR 8807FL (formerly Yale 8800 series) is built upon a heavy-duty Grade 1 chassis, designed to withstand the rigors of high-traffic institutional settings. The lock is housed in a wrought steel, zinc-dichromate plated case and features a 3/4" anti-friction latchbolt for smooth operation. With a 3-hour fire rating and a 10-year mechanical warranty, this lockset is a cornerstone of reliable Commercial Door Hardware.

Function Details: Entry/Office (ANSI F04)

The Entry Function is specifically engineered for professional spaces such as private offices and suite entrances where the locking status needs to be toggled manually. This mechanical configuration provides the following operational features:

• Manual Locking Control: The outside lever can be manually locked or unlocked using the stopwork activator (toggle) located on the armor front.
• Keyed Access: When the exterior lever is set to the locked position, a mechanical key must be used to retract the latchbolt for entry.
• Safe Egress: The inside lever is always active, ensuring that occupants can exit the room at any time without the use of a key, meeting critical life-safety codes.
• Deadlocking Security: Equipped with a deadlocking latchbolt that prevents "shimming" or unauthorized manipulation of the latch when the door is closed.

• Application: Ideal for office doors that require the ability to stay unlocked during business hours and remain securely keyed afterward.

Key Performance Features

• Toggle Locking Versatility: Allows the door to function as a passage set during the day or a keyed entry set when security is required.
• Grade 1 Certified Excellence: Independently certified to ANSI/BHMA A156.13 Series 1000 Grade 1 standards for maximum durability and resistance to vandalism.

• Life-Safety Compliance: Inside lever always allows for immediate exit, ensuring the lock meets all ADA and fire code egress requirements.
• Fire-Rated Integrity: UL / cUL Listed for use on fire doors up to 3 hours, providing essential protection for commercial facilities.

• Heavy-Duty Construction: Features 3/8" heat-treated solid steel hubs and a stainless steel one-piece anti-friction latchbolt for superior mechanical life.

Technical Specifications & Compliance

This lockset is sold less cylinder. It is compatible with a standard 1-1/8" Mortise Cylinder (such as the 2153) with a 2160 cam and a 1/4" trim ring.
