Accentra 8808FL PBR Mortise Lockset Classroom Function less Cylinder - Yale
Accentra Mortise Lockset PBR 8808FL Classroom Function less Cylinder, 626/US26D (Satin Chrome)
Accentra Mortise Lockset PBR 8808FL Classroom Function, Less Cylinder, 626/US26D (Satin Chrome)
All Locks are furnished as RH (Right Hand) and can be re-handed in the field

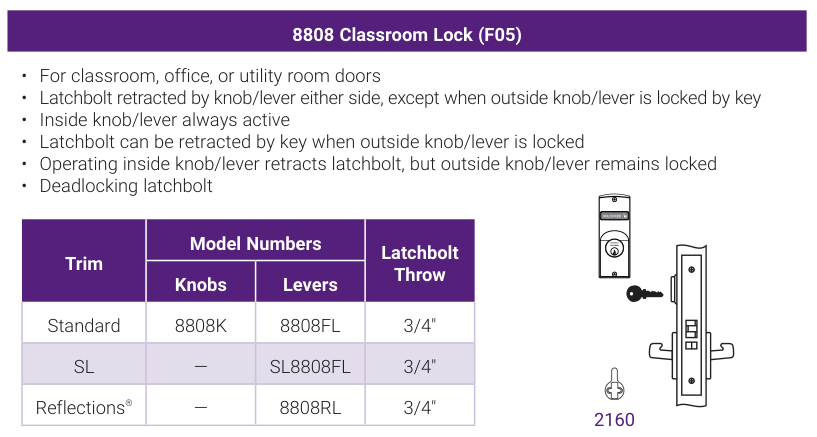

Function Info:
| • For classroom, office, or utility room doors. • Latchbolt retracted by knob/lever either side, except when outside knob/lever is locked by key outside. • Inside knob/lever always active. • Deadlocking latchbolt |
Features:
• Heavy-duty trim for resistance against damage and vandalism
• Functions available for any industrial or commercial application
• Field adjustable lever handing and latchbolt
• ANSI/BHMA Certified Grade 1 for long-life and durability
• UL/cUL listed for 3 hour fire rated doors
• 10 year mechanical warranty
• Available in a variety of attractive trims and finishes
Yale 8800FL Specifications:
Armor Front: 8" x 1-1/4"
Backset: 2-3/4" only
Case: Wrought steel, zinc dichromated
Deadbolt: 1" throw, cast stainless steel
Door Thickness: 1-3/4" standard
Handing: Field reversible
Hubs: 3/8" solid steel, fne-blanked and heat treated for additional strength
Latchbolt: 3/4" throw, stainless steel one-piece anti-friction
Strike: 4-7/8" ASA strike standard
Cylinder: 1-1/8" Length x 1/4" Trim Ring (#2153 Mortise Cylinder), Not Included with Lockset
| Finish with BHMA code | 626 - US26D Satin Chrome |
| Brand | Accentra (formally Yale Security) |
| ANSI Mortise Lock Function | F05 - Classroom |
| Trim Design | PBR |
| Series | Accentra - 8800 Series |
