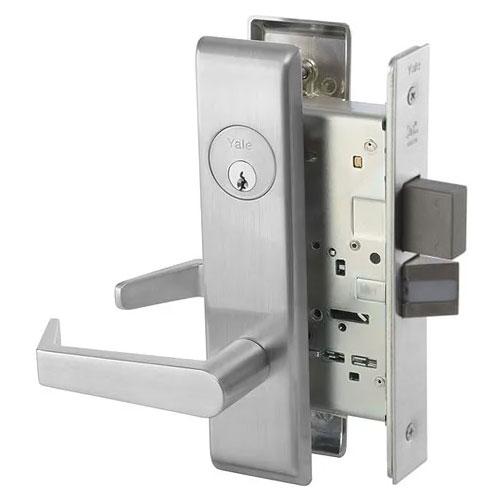

Accentra AUCN 8822FL Dormitory & Exit Mortise Lockset (Less Mortise Cylinder) – Grade 1 Architectural Security
Function Info:
| • Latchbolt retracted by knob/lever either side. • Deadbolt operated by key outside and thumbturn inside. • When the deadbolt is projected, outside knob/lever is automatically locked. • Anti-panic operation. Operating inside knob/lever retracts the latchbolt and deadbolt simultaneously, automatically unlocking outside knob/lever. |
The Accentra AUCN 8822FL (formerly Yale 8800 series) is a heavy-duty Dormitory/Exit Function Mortise Lock designed for multi-family housing, student dormitories, and commercial suites where high-frequency use and life safety are critical. This ANSI/BHMA Grade 1 certified lockset features the professional Augusta (AU) lever and CN Escutcheon trim, providing a robust mechanical solution for the most demanding institutional environments.
The Accentra 8822FL is engineered for superior safety, featuring an anti-panic operation that ensures immediate egress even when the deadbolt is engaged. With its 626/US26D Satin Chrome finish and wrought steel construction, this lockset is the definitive choice for Commercial Door Hardware projects requiring both architectural elegance and industrial strength.
Function Info: Dormitory/Exit (8822)
- Latchbolt Operation: Retracted by the knob/lever from either side.
- Deadbolt Control: The 1" cast stainless steel deadbolt is operated by a key from the outside and a thumbturn from the inside.
- Automatic Locking: When the deadbolt is projected, the outside knob/lever is automatically locked to prevent unauthorized entry.
- Anti-Panic Operation: Operating the inside knob/lever retracts the latchbolt and deadbolt simultaneously, automatically unlocking the outside knob/lever for a single-motion exit.
- Security & Safety: Combines the physical protection of a deadbolt with the safety requirements of life-safety codes.
Key Features & Performance
- ANSI/BHMA Grade 1 Certified: Independently tested for long-life and durability in the most demanding industrial or commercial applications.
- 3-Hour Fire Rating: UL/cUL listed for use on fire-rated doors, ensuring building code compliance.
- Field Reversible: All locks are furnished as Right Hand (RH) but can be easily re-handed in the field to suit any door swing.
- Smooth Operation: Equipped with a 3/4" throw stainless steel one-piece anti-friction latchbolt for quiet and effortless closure.
- 10-Year Warranty: Backed by a premier mechanical warranty for decade-long reliability.
Technical Specifications
This lockset is sold less cylinder. It is compatible with standard 1-1/8" Mortise Cylinders (such as the 2153 or 2553) with a 2160 cam.
| Feature | Specification |
| Model Number | AUCN 8822FL (Dormitory/Exit) |

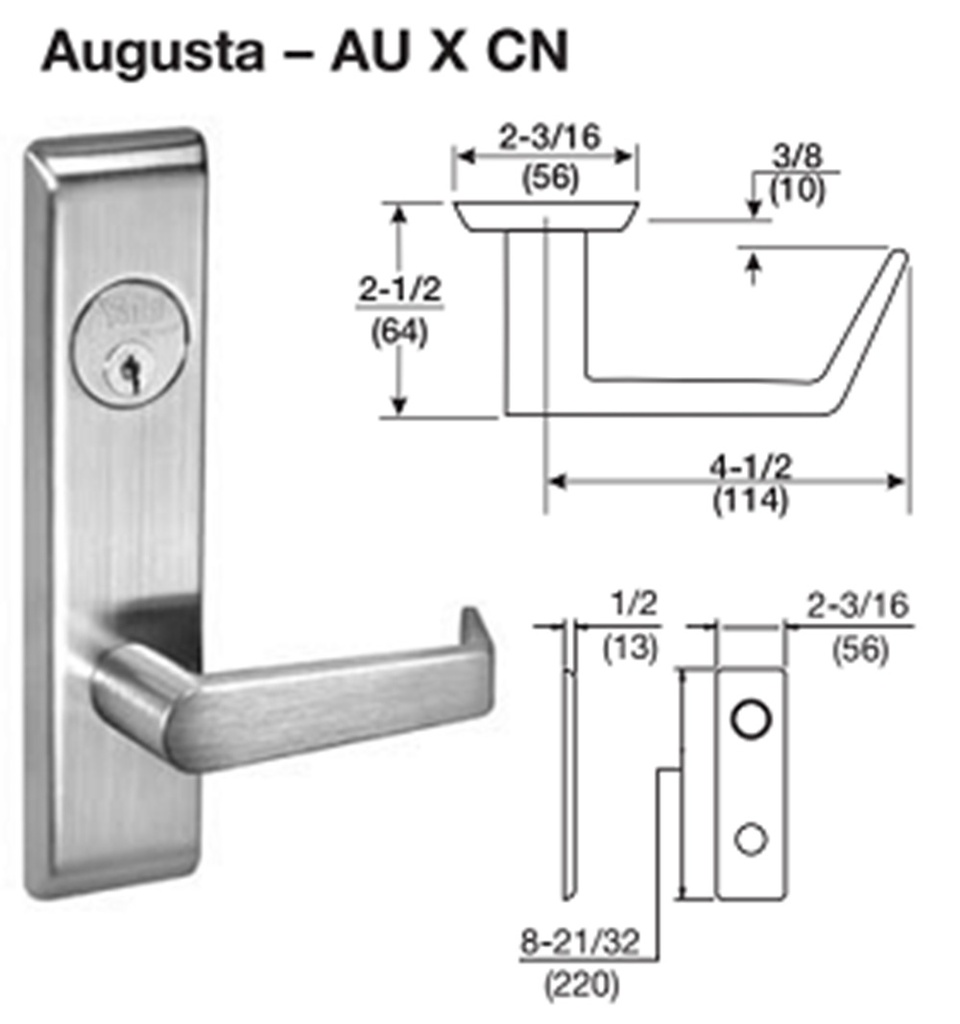

| Lever Design | Augusta (AU) with CN Escutcheon |
| Finish | 626 / US26D Satin Chrome |
| Backset | 2-3/4" Only |
| Deadbolt | 1" Throw, Cast Stainless Steel |
| Latchbolt | 3/4" Throw, Stainless Steel Anti-Friction |
| Door Thickness | 1-3/4" Standard |
| Armor Front | 8" x 1-1/4" |
| Case | Wrought steel, zinc dichromate |
| Hubs | 3/8" solid steel, fine-blanked and heat treated |
| Strike | 4-7/8" ASA Strike Standard |
| Finish with BHMA code | 626 - US26D Satin Chrome |
| Brand | Accentra (formally Yale Security) |
| ANSI Mortise Lock Function | F13 - Dormitory |
| Trim Design | AUCN |
| Series | Accentra - 8800 Series |
