Accentra AUR 8822FL Mortise Lockset – Dormitory & Exit Function
Function Info:
| • Latchbolt retracted by knob/lever either side. • Deadbolt operated by key outside and thumbturn inside. • When the deadbolt is projected, outside knob/lever is automatically locked. • Anti-panic operation. Operating inside knob/lever retracts the latchbolt and deadbolt simultaneously, automatically unlocking outside knob/lever |

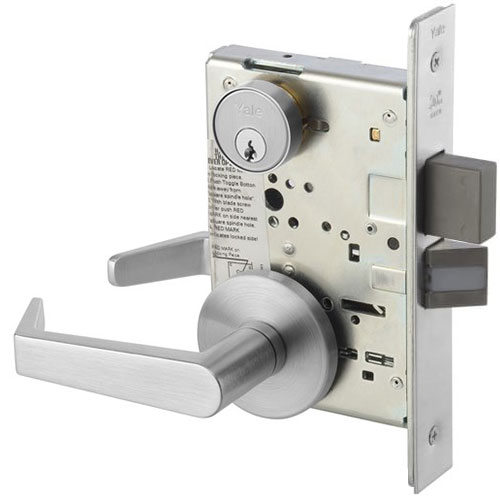

The Accentra AUR 8822FL Mortise Lockset (formerly Yale) is a premium Grade 1 commercial lock specifically designed for environments requiring both high security and emergency ease of use. This Dormitory/Exit Function lockset features the popular AUR Augusta Lever in a professional 626/US26D Satin Chrome finish, making it an ideal choice for multi-family housing, dormitories, and high-end commercial offices.
Engineered for maximum life safety, the 8822FL combines a rugged deadbolt for privacy with an anti-panic operation that ensures a swift exit during emergencies.
Functional Performance: Dormitory/Exit (8822)
- Standard Operation: The latchbolt is retracted by the lever from either side.
- Deadbolt Security: The 1" stainless steel deadbolt is projected by a key on the exterior or a thumbturn on the interior.
- Automatic Locking: Projecting the deadbolt automatically locks the outside lever to prevent unauthorized entry.
- Anti-Panic Egress: A critical safety feature where operating the inside lever retracts both the latchbolt and the deadbolt simultaneously, automatically unlocking the exterior lever for seamless re-entry if desired.
Superior Features & Durability
- ANSI/BHMA Grade 1 Certified: Architecturally graded for extreme durability and long-term performance in high-frequency use areas.
- 3-Hour Fire Rating: UL/cUL listed for use on fire-rated door assemblies, ensuring compliance with strict building codes.
- Field Reversible: Furnished as Right Hand (RH) but easily re-handed in the field to accommodate any door swing.
- 10-Year Mechanical Warranty: A testament to the Accentra 8800 Series' robust construction and reliability.
Technical Specifications & Compliance
This lockset is sold less cylinder. It is compatible with a standard 1-1/8" Mortise Cylinder (such as the 2153) with a 2160 cam and a 1/4" trim ring.
| Feature | Specification |
| Model | Accentra (Yale) AUR 8822FL |
| Function | Dormitory / Exit Function |
| Finish | 626/US26D (Satin Chrome) |
| Backset | 2-3/4" Only |
| Armor Front | 8" x 1-1/4" |
| Latchbolt | 3/4" Throw, Stainless Steel Anti-Friction |
| Deadbolt | 1" Throw, Cast Stainless Steel |
| Case Material | Wrought Steel, Zinc Dichromate |
| Door Thickness | 1-3/4" Standard |
| Hubs | 3/8" Solid Steel, Heat Treated |
| Strike | 4-7/8" ASA Strike Standard |
| Finish with BHMA code | 626 - US26D Satin Chrome |
| Brand | Accentra (formally Yale Security) |
| ANSI Mortise Lock Function | F12 - Dormitory |
| Trim Design | AUR |
| Series | Accentra - 8800 Series |
