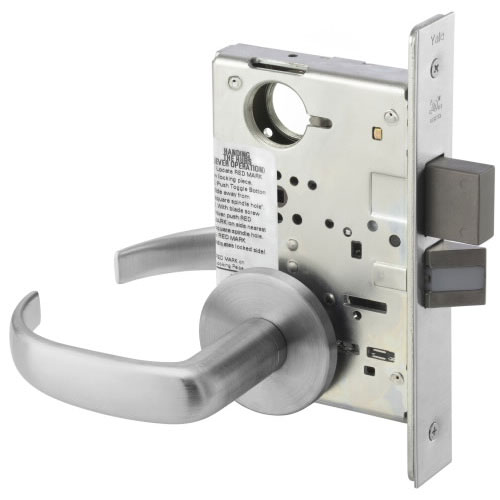

Accentra PBR 8822FL Mortise Lockset – Dormitory & Exit Function
Function Info:
| • Latchbolt retracted by knob/lever either side. • Deadbolt operated by key outside and thumbturn inside. • When the deadbolt is projected, outside knob/lever is automatically locked. • Anti-panic operation. Operating inside knob/lever retracts the latchbolt and deadbolt simultaneously, automatically unlocking outside knob/lever |
The Accentra PBR 8822FL Mortise Lockset (formerly Yale) is a high-performance, Grade 1 commercial lock designed for environments where security and rapid egress are equally critical. Featuring the heavy-duty PBR Pacific Beach Lever and a professional 626/US26D Satin Chrome finish, this lockset is the gold standard for dormitories, residential complexes, and upscale office suites.
Built for life-safety compliance and long-term durability, the 8822FL offers a sophisticated Dormitory/Exit Function that integrates a deadbolt for privacy with a specialized anti-panic operation for emergency situations.
Functional Performance: Dormitory/Exit (8822)
- Versatile Operation: The latchbolt is retracted by the lever from either side for standard entry/exit.
- Deadbolt Privacy: A 1" cast stainless steel deadbolt is operated by a key from the exterior or a thumbturn from the interior.
- Automatic Locking: When the deadbolt is projected, the outside lever is automatically locked to ensure occupant privacy.
- Anti-Panic Egress: Operating the inside lever retracts both the latchbolt and deadbolt simultaneously, instantly unlocking the outside lever—providing a safe, one-motion exit during emergencies.
Key Features & Certifications
- ANSI/BHMA Grade 1 Certified: Rigorously tested for maximum durability in high-traffic industrial and commercial applications.
- 3-Hour Fire Rating: UL/cUL listed for use on fire-rated door assemblies.
- Vandal-Resistant Trim: The PBR Pacific Beach design provides extra resistance against damage in public spaces.
- Field Reversible: Furnished as Right Hand (RH) but fully adjustable in the field to match any door swing.
- 10-Year Warranty: Includes a decade-long mechanical warranty, reflecting the quality of the Accentra 8800 Series.
Technical Specifications & Compliance
This lockset is sold less cylinder. It is compatible with a standard 1-1/8" Mortise Cylinder (such as the 2153) with a 2160 cam and a 1/4" trim ring.
| Feature | Specification |
| Series | Accentra (Yale) 8800FL |
| Function | 8822 Dormitory / Exit |

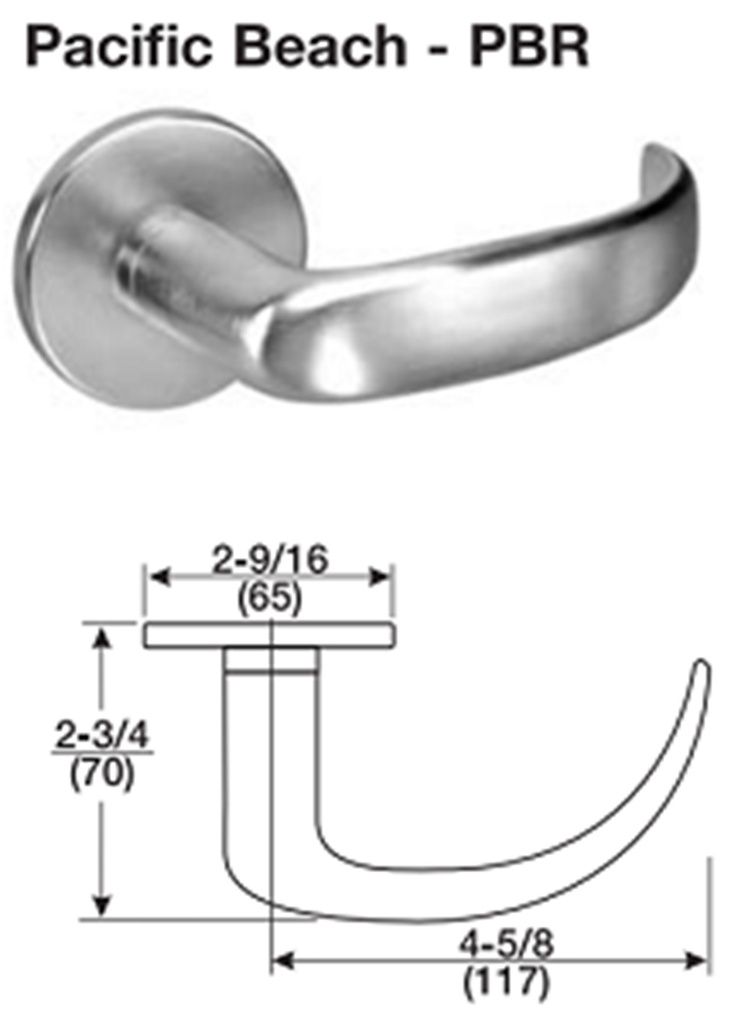

| Trim Design | PBR Pacific Beach Lever |
| Finish | 626/US26D (Satin Chrome) |
| Backset | 2-3/4" Only |
| Armor Front | 8" x 1-1/4" |
| Deadbolt | 1" Throw, Cast Stainless Steel |
| Latchbolt | 3/4" Throw, Stainless Steel Anti-Friction |
| Door Thickness | 1-3/4" Standard |
| Case Material | Wrought Steel, Zinc Dichromate |
| Strike | 4-7/8" ASA Strike Standard |
| Finish with BHMA code | 626 - US26D Satin Chrome |
| Brand | Accentra (formally Yale Security) |
| ANSI Mortise Lock Function | F12 - Dormitory |
| Trim Design | PBR |
| Series | Accentra - 8800 Series |
