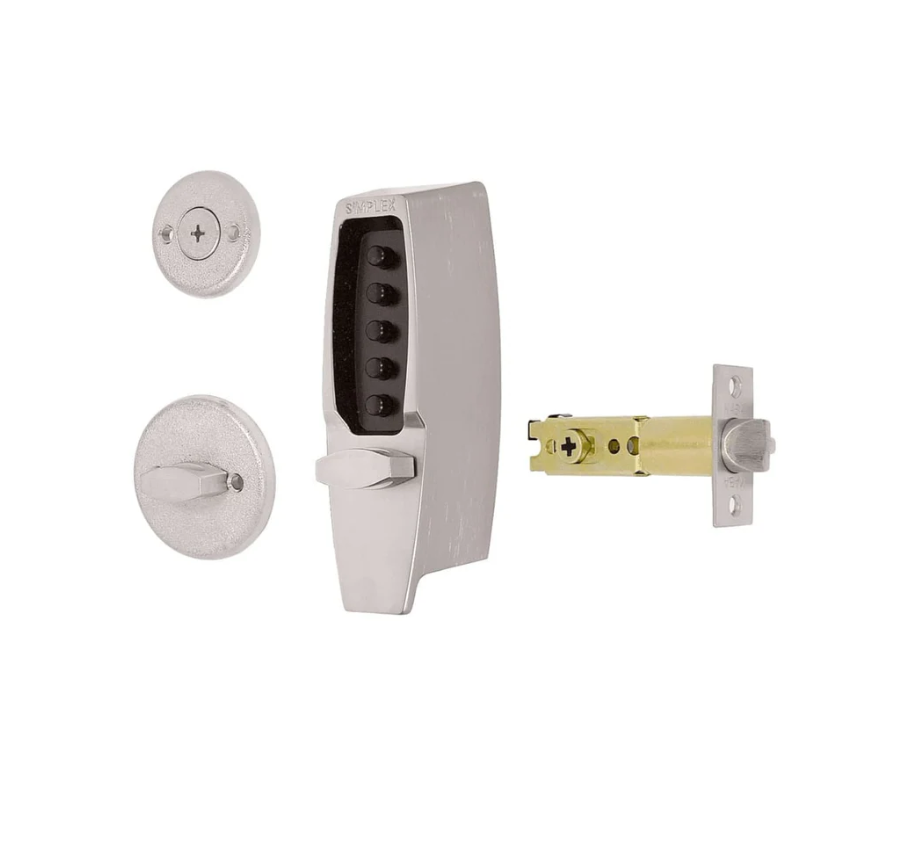

Simplex 7100 Series Combination Deadbolt (7104-26D-41)
- Combination Deadbolt
- Adjustable 2-3/8 in. to 2-3/4 in. Backset
- Satin Chrome (626/US26D)
The Simplex 7100 Series provides fully mechanical primary or auxiliary pushbutton access control by exterior combination.
- Construction: All metal cast front housing; force-resistant, clutch-protected exterior thumbturn
- Numeric Keypad: Vandal resistant, solid metal pushbuttons
- Handing: Field reversible
- Door Thickness: 1⅜" (35 mm) to 2¼" (57 mm), wood or metal
- Durability: Weather resistant
- Warranty: 1-year warranty
- Backset: 2¾" (70 mm) or 2⅜" (60 mm) backset
| Brand | DormaKaba |
| Lock Type | Deadlatch |
| Cylinder Options | No Cylinder Override |
| Door Hand | Non Handed |
| Backset | 2-3/4" Backset, 2-3/8" Backset |
| Series | DormaKaba - 7100 Series |
| General - US Finishes | 626 - Satin Chrome |
