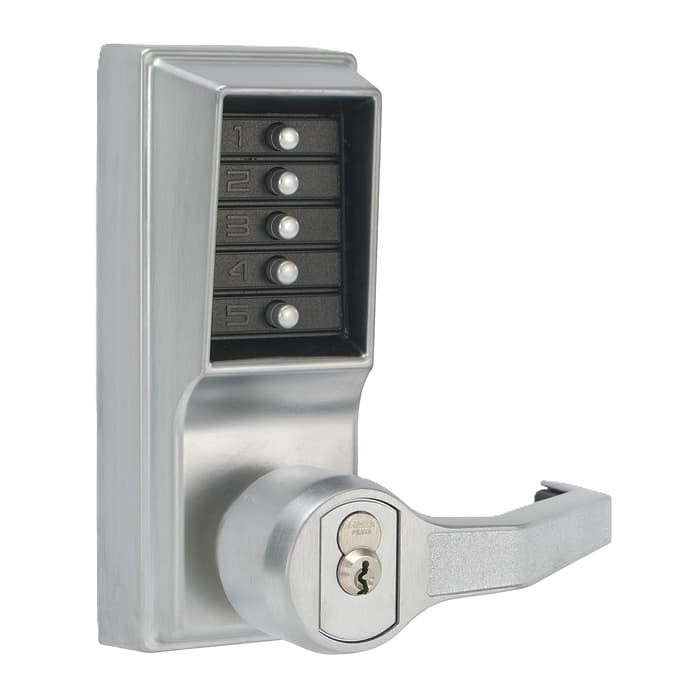

DormaKaba Mechanical Lockset LR1021R-26D
Right Hand or Right Hand Reverse
- Accepts Sargent Interchangeable Cores
- Combination Entry & Key Override
- Less Core
- 2 3/4" Backset
Product Details
Locking Device: Cylindrical latch with 3-hour UL/ULC fire rating on "A" labeled doors
Number of Codes: Single access code—one easy-to-manage code for all users
Programming: Lock is easily programmed via keypad without removing lock from the door
Handing: Factory-handed; not field reversible
Key Override (Optional):
- Interchangeable Cores: Small format—Best and equivalents (6 or 7-pin length); core not included
- Removable Cores: Large format—Medeco/ASSA/Yale/Abloy (5 or 6-pin length); Corbin Russwin (6-pin length); Schlage, and Sargent; core not included
Technical Details
Construction: Heavy-duty cylindrical lock housing with cast front housing, unified trim plate, and fixed ADA-compliant levers
Door Preparation: Easily installs on wood or metal doors. ASA 161 door preparation with additional through holes.
Door Thickness: 1⅜" (35 mm) to 2¼" (57 mm)—Pre-assembled to accommodate 1⅝" (41 mm) to 2" (51 mm) doors
Numeric Keypad: Vandal resistant, solid metal pushbuttons
Handing: Factory-handed; not field reversible
Backset: 2¾" (70 mm), 2⅜" (60 mm)
Latch: ½" (13 mm) throw latch, ¾" (19 mm) throw latch (optional)
Minimum Stile Recommended: 5" (127 mm)
Strike: Standard strike plate; ASA strike plate
Accessibility Standard: Americans with Disabilities Act (ADA); fixed ADA-compliant levers
Durability: D.O.D. Compliant 5220.22M for supplemental access control; weather resistant
Fire Rating: 3-hour UL/ULC fire rating for "A" labeled doors
Warranty: 3-year warranty
Standard Finishes:
- Satin Chrome 26D (626)
- Antique Brass 05 (609)
Optional Finishes:
- Bright Brass 03 (605)
- Bright Chrome 026 (625)
| Brand | DormaKaba |
| Lock Type | Cylindrical Lock |
| Cylinder Options | LFIC - Sargent |

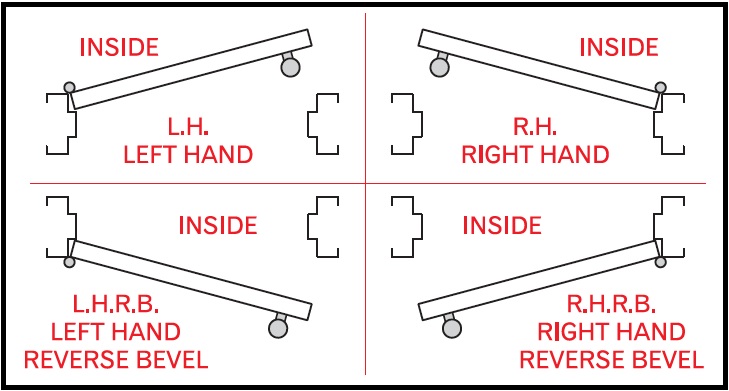

| Door Hand | RH - Right Hand, RHR - Right Hand Reverse |
| Backset | 2-3/4" Backset |
| Series | DormaKaba - L1000 Series |
| General - US Finishes | 626 - Satin Chrome |
