Markar HG305 Stainless Steel Hinge Guard Pin & Barrel Continuous Hinge

https://www.doorwaysplus.com/web/image/product.template/2230/image_1920?unique=784d6c8

Markar HG305 Stainless Steel Hinge Guard Pin & Barrel Continuous Hinge

608.72 608.72 USD 608.72

608.72

Not Available For Sale


  • Continuous Hinge Height
  • Brand
  • Continuous Hinge Grade
  • Hinge Type
  • Hinge Type
  • General - US Finishes
  • Base Material

This combination does not exist.


Share :

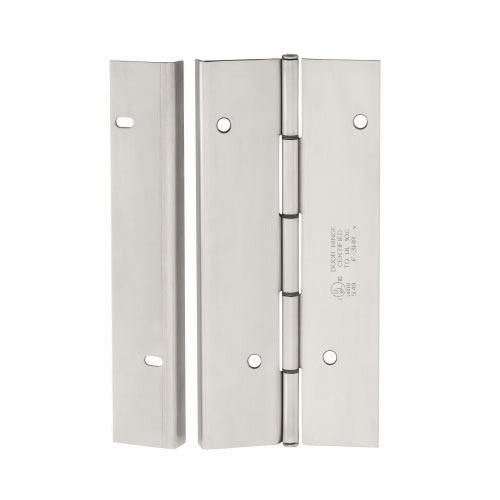

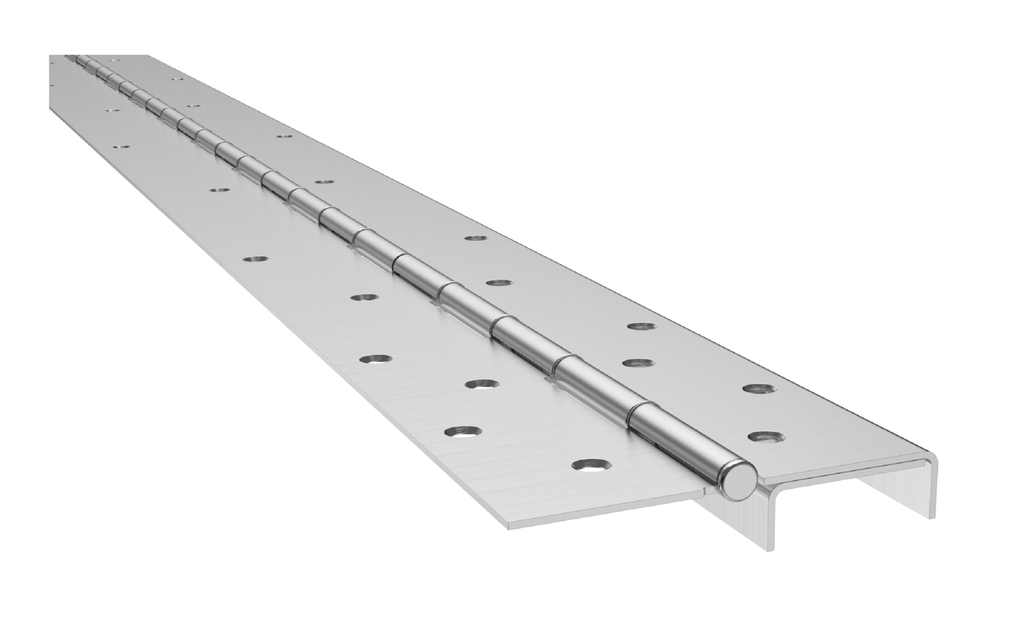

Markar HG305 Stainless Steel Hinge Guard Pin & Barrel Continuous Hinge

The integral hinge guard protects the door from dings and gouges from carts and gurneys while providing clean lines and aesthetic appearance.

3/16" diameter stainless steel barrel type hinge pin (rod). Medical bearings. Stainless steel end pins
Heavy-duty 14 gauge, Type 304 stainless steel, finished in US32D (630)
Fasteners concealed when door is closed. Fastener screw pack includes Custom 12-24 x 11/16 S.S Phillips Flat Head Undercut TEK Screws
Supports weight up to 600lbs. 4'0" maximum door width
Exterior barrel diameter .438 (7/16")
ANSI/BHMA Standard A156.26 Grade 1

7/0 Height = 83-1/8" net length
8/0 Height = 95" net length

Fire Rating:
Classified in accordance with UL10C for positive pressure
20 minutes - wood doors
90 minutes - hollow metal and composite core wood fire doors
3 hours - hollow metal doors



Continuous Hinge Height 83 Inch (7/0 Dr) or 95 Inch (8/0 Dr)
Brand Markar
Continuous Hinge Grade Heavy Duty
Hinge Type Continuous Hinge, Full Mortise
General - US Finishes 630 - Satin Stainless Steel/ US32D
Base Material Stainless Steel
