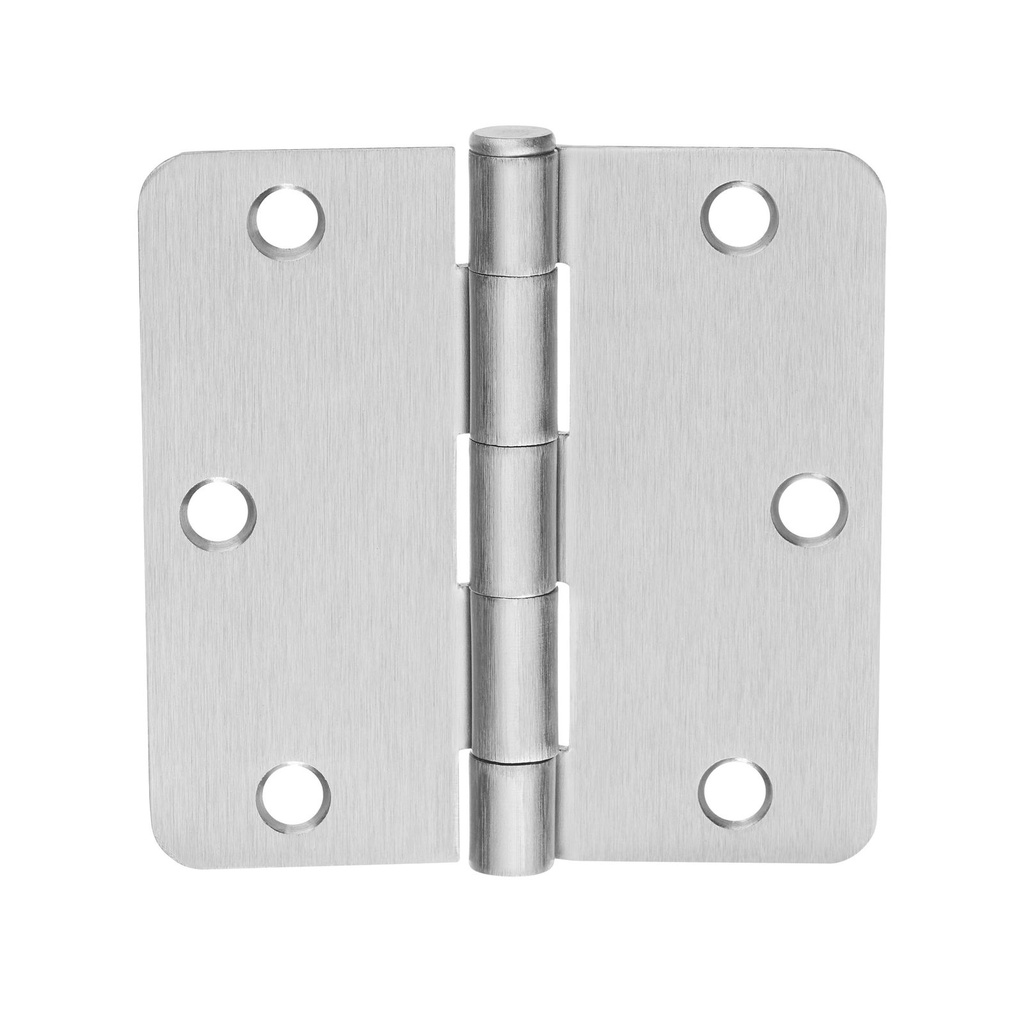

McKinney 1414 4x4 Five-Knuckle Full Mortise Plain Bearing Butt Hinge — Residential Weight
The McKinney 1414 is a full mortise, five-knuckle, plain bearing butt hinge engineered for light interior residential and light-commercial doors. Measuring 4 inches by 4 inches, this residential-weight hinge is designed to be field reversible, accommodating either hand without the need for separate hinge sets. As a plain bearing hinge, it delivers dependable, low-friction pivot performance suited to standard-frequency, lighter-duty swinging door applications. The McKinney 1414 is also commonly referenced as a McKinney plain bearing residential butt hinge and is a trusted choice among contractors, finish carpenters, and facility maintenance professionals seeking a reliable full mortise hinge solution.
Institutional Grade Features & Benefits
- Full Mortise Design: Recesses cleanly into both the door edge and frame jamb for a flush, professional finish — the industry-standard installation method for residential and light-commercial swinging doors.
- Five-Knuckle Construction: The five-knuckle barrel provides additional bearing surface and a refined, classic appearance consistent with architectural hardware standards for residential applications.
- Plain Bearing Operation: Delivers smooth, consistent pivot action for standard-frequency residential and light-commercial doors without the added complexity of ball-bearing mechanisms.
- Residential Weight Rating: Properly sized and rated for lighter interior doors typical of residential and light-commercial construction, helping ensure long service life when matched to appropriate door weights.
- Field Reversible: The hinge can be reversed on-site to suit either hand, simplifying inventory management and reducing the need to stock separate left-hand and right-hand units.
- McKinney Quality: Manufactured by McKinney, a well-established name in architectural door hardware, the 1414 reflects consistent material and dimensional standards expected by professional installers.
Technical Specifications
- Model Number: 1414
- Brand: McKinney
- Part Type: Full Mortise Plain Bearing Butt Hinge
- Hinge Size: 4 inches x 4 inches
- Knuckle Count: Five-Knuckle
- Bearing Type: Plain Bearing
- Weight Class: Residential Weight
- Mounting Style: Full Mortise
- Handing: Field Reversible (Either Hand)
- Typical Application: Light interior residential and light-commercial swinging doors
Technical Details
| Feature | Details |
|---|---|
| Brand | McKinney |
| Part Number | 1414 |
| Part Type | Full Mortise Plain Bearing Butt Hinge |
| Hinge Size | 4 in. x 4 in. |
| Knuckle Configuration | Five-Knuckle |
| Bearing Type | Plain Bearing |
| Weight Class | Residential Weight |
| Mounting Style | Full Mortise |
| Handing | Field Reversible — Either Hand |
| Application | Light interior residential and light-commercial doors |
Documentation
| General - US Finishes | US26D - Satin Chrome or US26 - Polished Chrome or US4 - Satin Brass or US10B - Oil Rubbed Bronze |
| Brand | McKinney |
| Hinge Type | Full Mortise |
| Hinge Mounting | Full Mortise |
| Door Handing | Field Reversible |
| Hinge Height | 4.0" Hi |
| Hinge Width | 4.0" Wi |
| Hinge Grade/Thickness | Residental Wt .085 to .106 |
| Hinge Corners | Square |
| Hinge Knuckle | 5 Knuckles |
| Base Material | Steel |
| Part Type | Hinge, Hinge |
