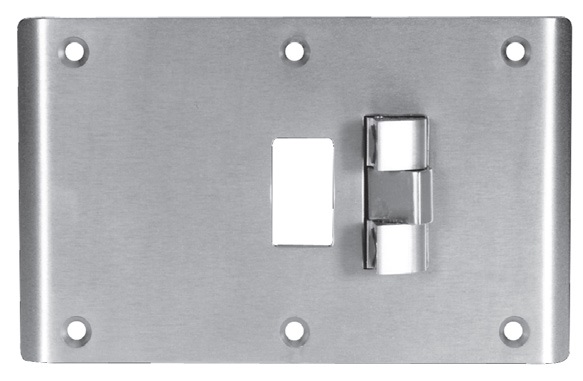

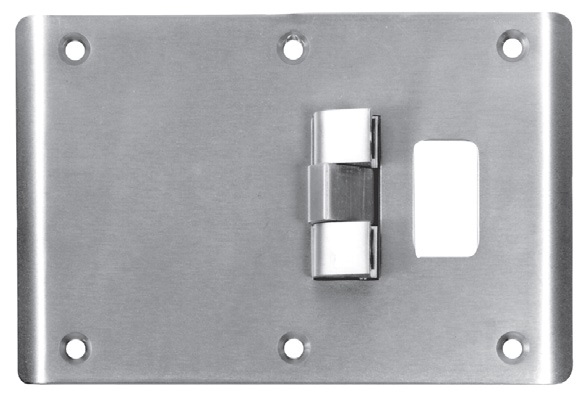

McKinney CSS-9 Combination Strike and Emergency Stop Release US26D

Recommended for installations on hospital or nursing home bathroom doors along with our EP-5J. This unit allows center hung or 1/8" inset doors to be opened in both directions without damaging the frame.

• Manufactured for use with cylindrical or bored locks
• Available in offset or center hung latch bolt location for frame sizes 5-3/4", 5-7/8" and 6-3/4"
• Custom units available for frame sizes 3-1/2" - 10" consult factory for availability
• For use on 13/4" thick doors
• Cannot be used with deadbolts. May not work with some mortise locks. Consult the factory for mortise lock application of CORBIN RUSSWIN, SARGENT and YALE compatibility
• All Combination Strike and Stops are packed with 1/2" x 8-32 machine screws
• ANSI A1882

Understanding the Role of Emergency Release Stop in Anti-Barricade Systems

The primary function of an Emergency Release Stop in an anti-barricade system is to ensure swift and safe access during emergency situations. When used alongside a double swing hinge, this stop is key to a responsive safety mechanism.

Key Features:

• Reverses Door Swing: The stop allows the door to swing in the opposite direction, which is critical when the door is obstructed or barricaded from the inside.
• Rapid Deployment: Equipped with either a flush bolt or hook mechanism, it enables immediate release of the door, providing instant access for emergency services.
• Safety Assurance: The system is designed to quickly overcome potential barriers, minimizing delays in urgent scenarios and ensuring a higher level of safety for occupants.

By incorporating components like the Emergency Release Stop, these systems effectively enhance accessibility and response times, crucial elements in maintaining safety during emergencies.
