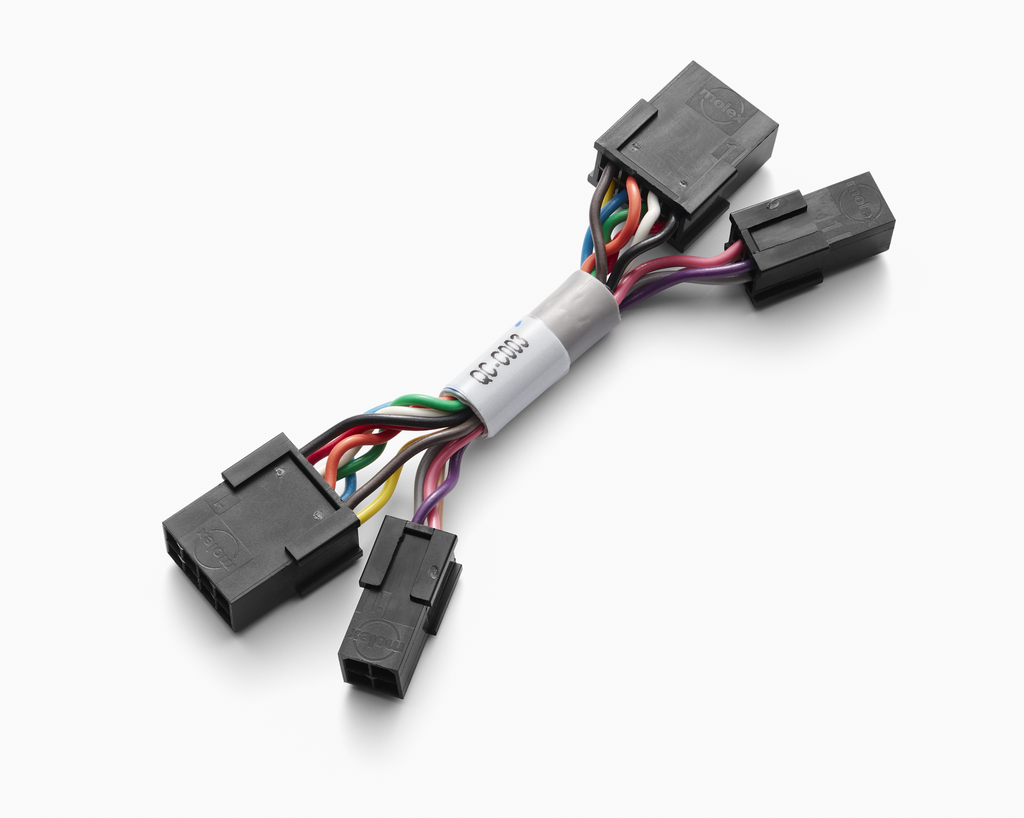

McKinney ElectroLynx Quick Connect 12-Wire Harness | 22AWG, Molex Connectors (Both Ends)

The ElectroLynx Quick Connect Wire Harness is a high-performance, plug-and-play solution designed to simplify the installation of electrified door hardware. Featuring a 12-wire configuration and precision-engineered Molex connectors on both ends, this harness eliminates the need for manual wire stripping and soldering. It is the definitive solution for door restoration and electrified hardware integration, ensuring a secure, failure-proof connection between the power supply and electrified locks, exit devices, or electric strikes.

Engineered with 22AWG stranded wire for maximum flexibility and conductivity, this harness is part of the standardized ElectroLynx system used by industry leaders like ASSA ABLOY, Sargent, and Corbin Russwin. By utilizing a "snap-together" architecture, it significantly reduces labor costs and prevents wiring errors that lead to hardware failure. This harness is an essential solution for door surface repair and security upgrades, providing a professional-grade communication link for access control systems.

Key Features & Benefits

• Universal ElectroLynx Compatibility: Designed to work seamlessly with any ElectroLynx-ready electrified hinge, lockset, or power transfer device, providing a standardized solution for commercial door security.
• Dual-End Molex Connectors: Equipped with factory-terminated 12-pin Molex connectors on both ends for a true "plug-and-play" installation that requires zero specialized tools.

• 12-Wire Configuration: High-density wiring allows for complex electrified functions, including request-to-exit (RX) switches, latch bolt monitoring, and dual-voltage power requirements.
• Durable 22AWG Wiring: Features flexible, industrial-grade 22-gauge wire that easily snakes through door cores and narrow raceways without kinking or breaking.

• Error-Proof Installation: The keyed connectors ensure that wires are never crossed, acting as a permanent solution for door edge reinforcement and system reliability.

Technical Details & Specifications

• Brand: ElectroLynx (ASSA ABLOY System)
• Wire Count: 12 Individual Conductors
• Wire Gauge: 22AWG Stranded Copper
• Connector Type: Molex 12-Pin (Male/Female Keyed)
• Termination: Connectors on both ends (Both Ends)
• Compatibility: Electric Hinges (McKinney QC), Electric Locks, Power Transfers, and Access Control Controllers.
• Application: For use in fire-rated and non-fire-rated door assemblies requiring electrification.

Why Choose the ElectroLynx System?

The ElectroLynx Quick Connect Harness is the professional’s choice for large-scale security deployments. While traditional hard-wiring is prone to human error and environmental degradation, the Molex connector system provides a sealed, vibration-resistant junction. It offers a permanent and cost-effective solution for door security, delivering the industrial-grade reliability required for hospitals, schools, and high-security government facilities.

Please Note: you need to have a 5/8" hole or raceway to use Molex at both Ends
