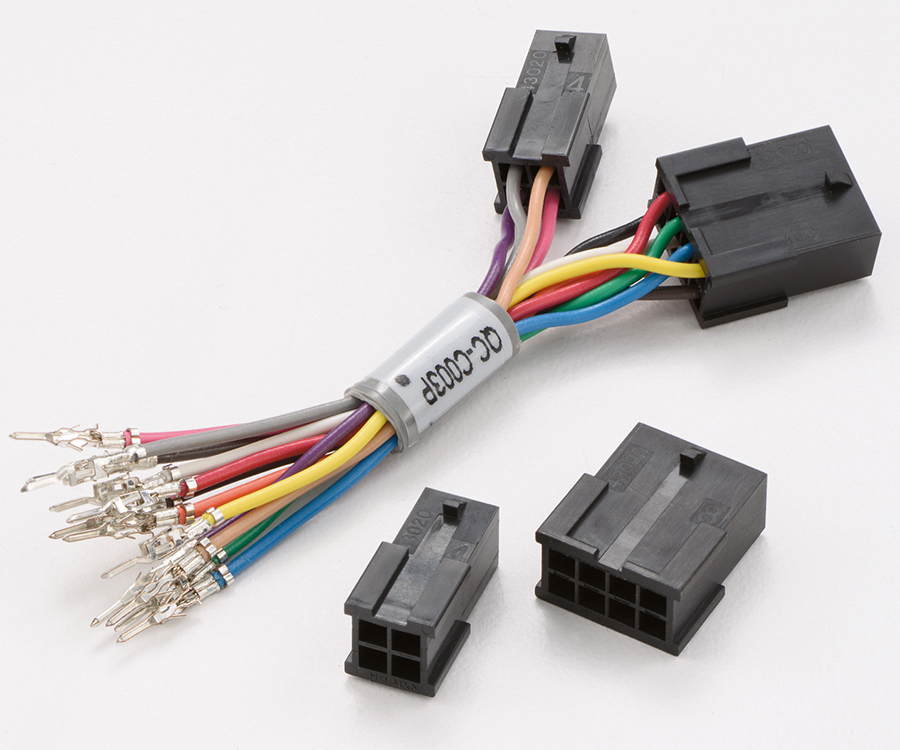

McKinney ElectroLynx Quick Connect 12-Wire Harness | 22AWG, Molex One End

The McKinney ElectroLynx Quick Connect Wire Harness is a high-performance electrical component designed to streamline the integration of electrified door hardware. Featuring a 12-wire configuration with a precision-engineered Molex connector on one end, this harness serves as the critical bridge between standardized ElectroLynx-ready hardware and a field-wired power supply or access control panel. It is the premier solution for door restoration and security upgrades, offering a professional, failure-proof connection for electrified locks, exit devices, and monitoring switches.

Constructed with high-quality 22AWG stranded wire, this harness is part of the standardized ElectroLynx "plug-and-play" system used by industry leaders like ASSA ABLOY, Sargent, and Corbin Russwin. By utilizing a factory-terminated connector on one side and bare leads on the other, it significantly reduces labor costs and prevents wiring errors while allowing for custom hard-wiring at the controller end. This harness is an essential solution for door surface repair and electrification, providing an industrial-grade communication link for complex security systems.

Key Features & Performance

• ElectroLynx "One End" Design: Equipped with a factory-installed 12-pin Molex connector that snaps directly into electrified hinges or power transfers, while the pigtail end allows for custom termination.
• 12-Wire High-Density Configuration: Supports multiple electrified functions, including power-to-lock/power-to-unlock, request-to-exit (RX) sensors, and latch bolt monitoring, serving as a comprehensive solution for commercial door security.
• Flexible 22AWG Wiring: Engineered with durable 22-gauge wire that easily navigates through door cores and narrow raceways without kinking or breaking.
• Error-Proof Connectivity: The keyed Molex connector ensures a perfect match every time, acting as a permanent solution for door edge reinforcement and electronic system reliability.
• Versatile Integration: Ideal for connecting McKinney QC Electrified Hinges to power supplies where a standardized connector is not present on the frame side.

Technical Details & Specifications

• Brand: McKinney (ASSA ABLOY)
• Model: ElectroLynx Quick Connect Harness
• Wire Count: 12 Conductors
• Wire Gauge: 22AWG (Stranded)
• Connector Type: Molex 12-Pin (One End Only / Pigtail other end)
• System Compatibility: Works with all ElectroLynx-ready hardware (Locks, Exit Devices, Hinges).
• Installation Tip: When snaking the harness through the door, ensuring the path is clear of obstructions like thru bolts or internal reinforcements is vital for preventing wire insulation damage and short circuits.

Why Choose the McKinney ElectroLynx System?

The McKinney ElectroLynx 12-Wire Harness is the professional’s choice for large-scale security deployments where field-wiring versatility is required. While full "Molex-to-Molex" systems are ideal for new construction, the Molex One End pigtail harness is the perfect solution for door security in retrofit applications where power is being pulled from a legacy controller. It delivers industrial-grade reliability and a polished, professional finish to any electrified opening.

Please Note: you need to have a 5/8" hole or raceway to use Molex at both Ends
