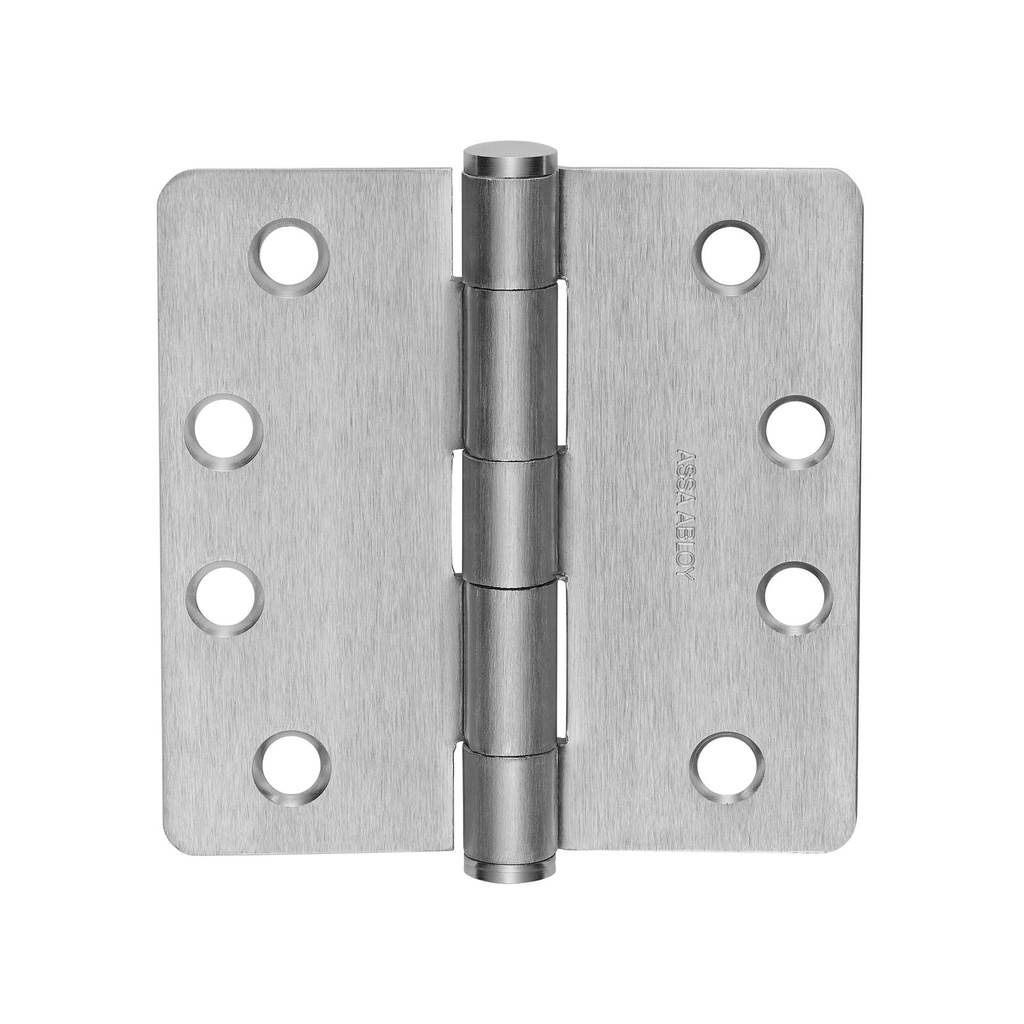

McKinney RCT2714 4x4 Five-Knuckle Standard Weight Full Mortise Round Corner Hinge
The McKinney RCT2714 is a 4 x 4 inch full mortise, five-knuckle standard weight butt hinge featuring 1/4 inch round corners. Designed for commercial and institutional door applications, this hinge installs flush within mortised recesses cut into both the door edge and the door frame, delivering a clean, professional fit that conceals the hinge leaf within the door and frame profile. As a full mortise hinge, the RCT2714 is among the most widely specified hinge types in commercial construction and renovation projects. This product is Approved for NFPA 80 fire-rated openings.
Institutional Grade Features & Benefits
- Full Mortise Installation: Both leaves seat fully within routed mortises in the door edge and frame, producing a flush, gap-free appearance and a mechanically secure connection that resists racking and stress over high-cycle use.
- Five-Knuckle Construction: The five-knuckle barrel design provides increased bearing surface area along the pin for enhanced stability and smooth, consistent swing throughout the door's service life.
- Standard Weight Classification: Engineered for standard door weight and frequency-of-use requirements common to commercial office, institutional, and light industrial door openings.
- 1/4 Inch Round Corners: The 1/4-inch radius round corner profile on each leaf is one of the most common corner specifications in commercial hinge applications, simplifying template routing and ensuring compatibility with standard mortise jigs and door prep tooling.
- 4 x 4 Inch Leaf Size: The 4 x 4 inch (height x width open) dimension is a standard commercial hinge size suitable for a broad range of door thicknesses and weights within the standard weight category.
- Fire Rating: Approved for NFPA 80 fire-rated openings.
- McKinney Quality: McKinney is a long-established, recognized name in commercial door hardware, with a reputation for consistent manufacturing tolerances and reliable field performance.
Technical Details
| Feature | Details |
|---|---|
| Brand | McKinney |
| Part Number | RCT2714 |
| Part Type | Hinge |
| Hinge Type | Full Mortise Butt Hinge |
| Knuckle Count | Five-Knuckle |
| Weight Class | Standard Weight |
| Leaf Size | 4 x 4 Inches |
| Corner Radius | 1/4 Inch Round Corner |
| Fire Rating | Approved for NFPA 80 fire-rated openings |
| Gauge (Thickness) | 0.130 in. |
Gauge (thickness): 0.130 in. -- the exact steel leaf thickness for this weight class and leaf height, per the McKinney Full-Line Catalog (AADSS1010289).
Documentation
| General - US Finishes | US26D - Satin Chrome or US10B - Oil Rubbed Bronze |
| Brand | McKinney |
| Hinge Type | Full Mortise |
| Hinge Mounting | Full Mortise |
| Hinge Height | 4.0" Hi |
| Hinge Width | 4.0" Wi |
| Hinge Grade/Thickness | Standard Wt .119 to .146 |
| Hinge Corners | 1/4" Radius |
| Hinge Knuckle | 5 Knuckles |
| Base Material | Steel |
| Part Type | Hinge |
