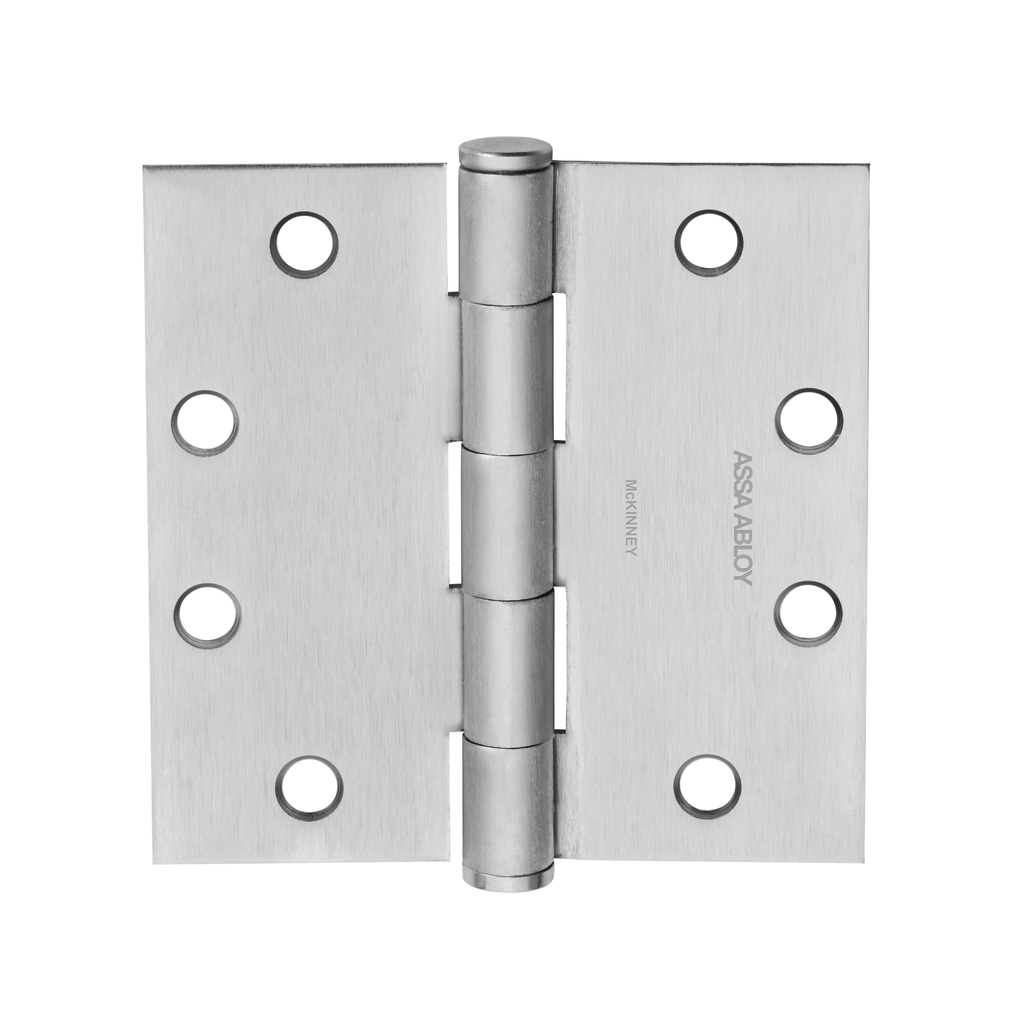

McKinney T2714 4" x 4" Plain Bearing Hinge
McKinney T2714 4" x 4" Plain Bearing Steel Hinge, 5 Knuckle, Full Mortise with plated finish. Hinges are priced as Each.
Lead Time: 1-4 Days
McKinney T2714 4" x 4" Plain Bearing Steel Hinge, 5 Knuckle, Full Mortise with plated finish
Hinges are for use on medium weight doors or doors requiring low frequency service without door closers. Hinges are furnished with All Wood Screws (1 1/4" x 12 FPHW) and All Machine Screws (1/2" x 12-24 FPHM) Non Rising Steel Pin with Button Tips. Commercial Grade Hinges are .130 thickness with template screw hole pattern.
Hinges are sold as Each
ANSI Number: A8133
**** Please Note: Commercial Grade Hinges do not have the same screw hole pattern or thickness as residential grade hinges. If you require residential hinges; please use this quick link to the residential hinges on our website****
| General - US Finishes | US26D - Satin Chrome or US15 - Satin Nickel or US10B - Oil Rubbed Bronze or USP - Prime Painted or D4 - Black Powdercoat |
| Brand | McKinney |
| Hinge Height | 4.0" Hi |
| Hinge Width | 4.0" Wi |
| Hinge Grade/Thickness | Standard Wt .119 to .146 |
| Hinge Type | Half Mortise |
| Hinge Options | Plain Bearing |
| Base Material | Steel |
| Hinge Corners | Square |
