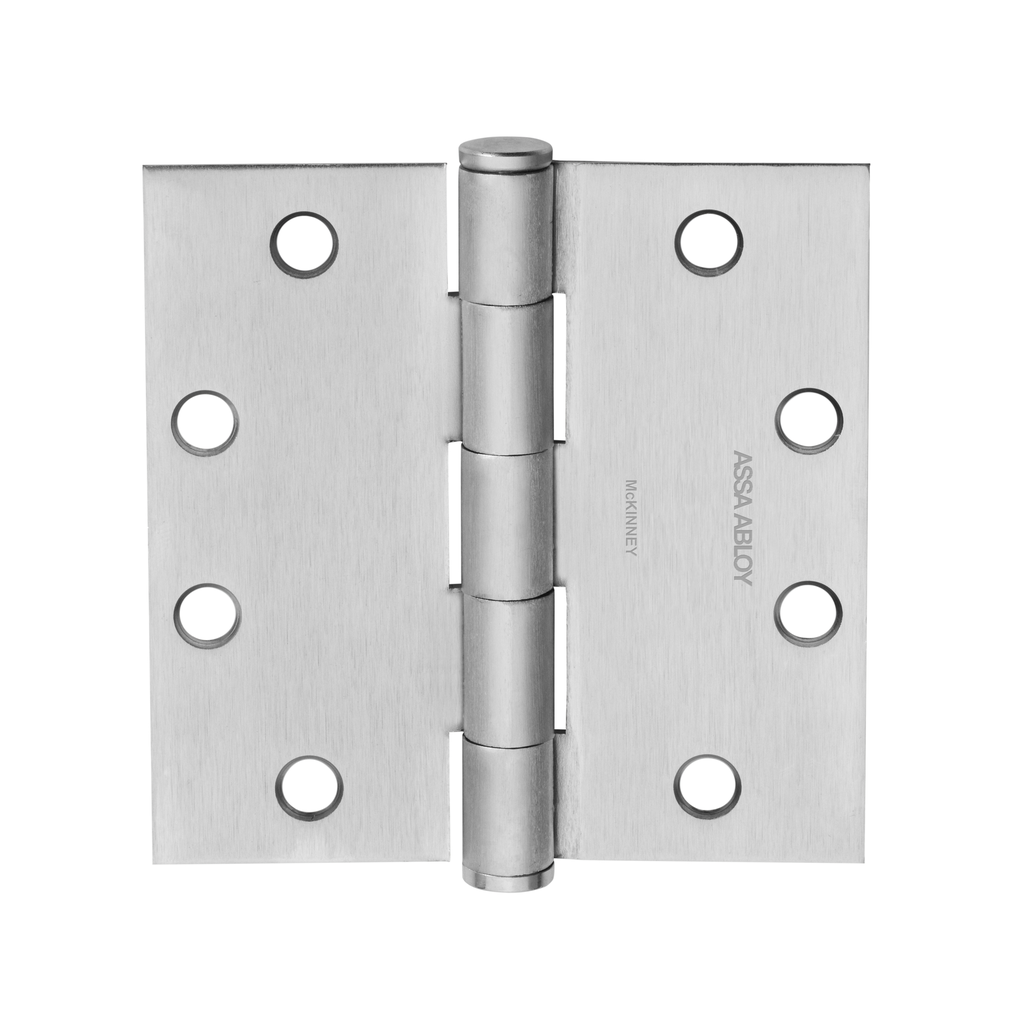

McKinney T2714 NRP 4-1/2" x 4-1/2" Plain Bearing Hinge
McKinney T2714 NRP 4-1/2" x 4-1/2" Plain Bearing Steel Hinge, 5 Knuckle, Full Mortise with plated finish. Hinges are priced as Each.
Lead Time: 1-4 Days
McKinney T2714 NRP 4-1/2" x 4-1/2" Plain Bearing Steel Hinge, 5 Knuckle, Full Mortise with plated finish
Hinges are for use on medium weight doors or doors requiring low frequency service without door closers. Hinges are furnished with All Wood Screws (1 1/4" x 12 FPHW) and All Machine Screws (1/2" x 12-24 FPHM) Non Rising Steel Pin with Button Tips. Commercial Grade Hinges are .134 thickness with template screw hole pattern. NRP (Non Removable Pin) is a set screw driven into the barrel of the hinge that is inaccessible when the door is in the closed position.
Hinges are sold as Each
ANSI Number: A8133
| General - US Finishes | US26D - Satin Chrome or US10B - Oil Rubbed Bronze |
| Brand | McKinney |
| Hinge Height | 4.5" Hi |
| Hinge Width | 4.5" Wi |
| Hinge Grade/Thickness | Standard Wt .119 to .146 |
| Hinge Type | Full Mortise |
| Hinge Options | Plain Bearing, NRP (Non Removable Pin) |
| Base Material | Steel |
| Hinge Corners | Square |
