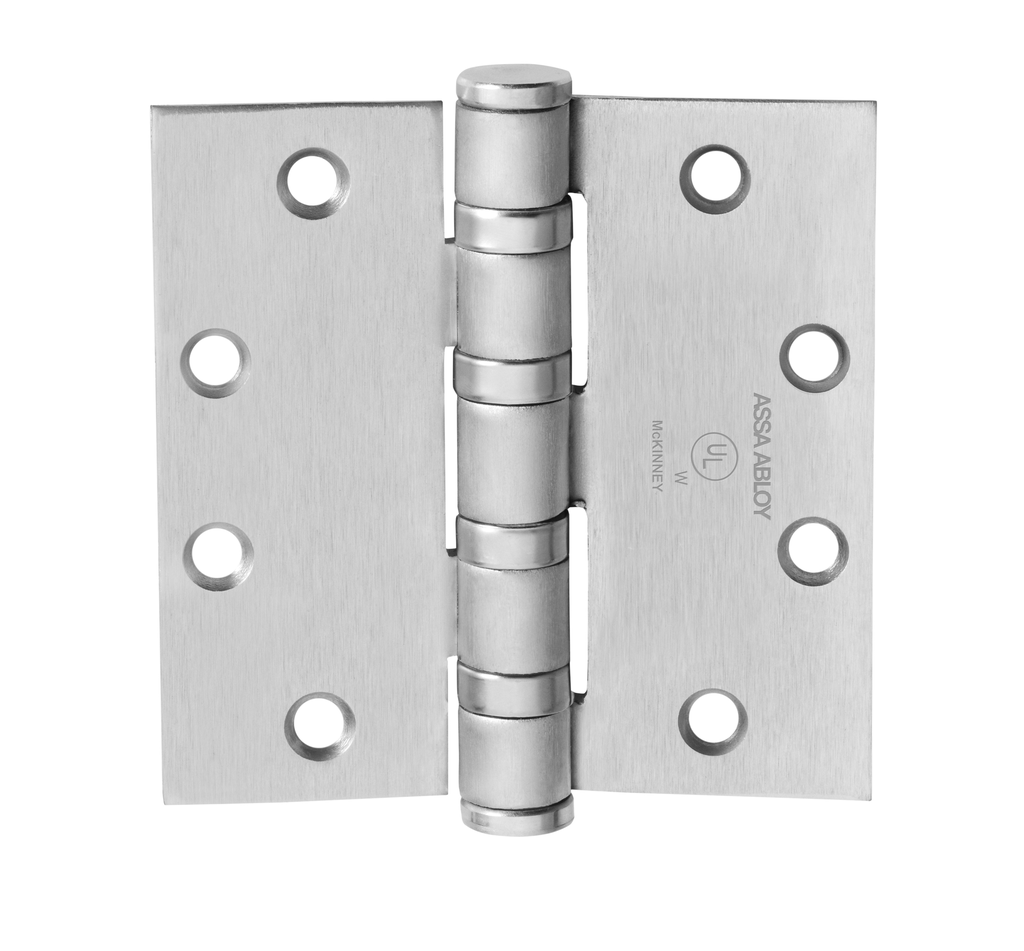

McKinney T4A3386 Heavy Weight Hinge | 4-1/2" x 4-1/2" Non-Ferrous
The McKinney T4A3386 is an industrial-strength, heavy-duty architectural hinge engineered for the most demanding high-traffic commercial environments. As a heavy weight, non-ferrous 5-knuckle hinge, it is specifically designed to support the physical stress of extra-heavy wood or metal doors in schools, hospitals, and government facilities. This hinge is a premier solution for door restoration, offering a robust .180 gauge thickness that far exceeds the durability of standard commercial hardware.
Key Features & Performance
- High-Frequency Performance: Designed for constant use, these hinges easily handle the rigorous opening and closing cycles of public institutions without performance degradation.
- Security NRP (Non-Removable Pin): Features an NRP set screw hidden within the barrel, preventing the pin from being removed when the door is closed—a vital solution for commercial door security.
- Corrosion-Resistant Non-Ferrous Base: Available in Stainless Steel (ANSI A5111) or Brass (ANSI A2111), providing a permanent solution for door edge reinforcement in environments prone to moisture or oxidation.
- Oil-Impregnated Bearings: The TA Prefix indicates self-lubricating, non-ferrous bearings that ensure maintenance-free, silent operation while resisting clogging and hinge failure.
- Fire Rating Note: The US32D Satin Stainless Steel finish is UL-listed and approved for use on fire-rated doors for up to 3 hours, whereas brass-based materials are not approved for fire-rated openings.
Technical Details & Specifications
- Brand: McKinney (ASSA ABLOY)
- Model Number: T4A3386
- Dimensions: 4-1/2" x 4-1/2" (Heavy Weight .180 Thickness)
- Base Materials: Stainless Steel or Brass
- Bearing Type: Ball Bearing (Oil Impregnated)
- Pin Type: Non-Rising Stainless Steel Pin with Button Tips
- Fasteners Included: Furnished with All Wood Screws (1-1/4" x 12) and All Machine Screws (1/2" x 12-24).
Why Choose the McKinney T4A3386?
The McKinney T4A3386 is the professional's choice when reliability is non-negotiable. Whether you are performing a solution for door surface repair or outfitting a new high-security wing, the non-ferrous construction ensures your hardware remains functional and aesthetically polished for decades. It offers a permanent and cost-effective solution for door security, delivering the industrial-grade strength required for modern architectural standards.
| General - US Finishes | US32D - Satin Stainless Steel/ 630 or BSP - Black Suede Power Coat or US3 - Polished Brass or US4 - Satin Brass or US10 - Satin Bronze or US10B - Oil Rubbed Bronze or US10B (SS) - Oil Rub Bronze on Stainless Steel or US10BE (SS) - Oil Rub Bronze Equal on Stainless Steel or US32 - Polished Stainless Steel |
| Brand | McKinney |
| Hinge Height | 4.5" Hi |
| Hinge Width | 4.5" Wi |
| Hinge Grade/Thickness | Heavy Wt .180 to .190 |
| Hinge Type | Full Mortise |
| Hinge Options | Ball Bearing |
| Base Material | Stainless Steel, Brass |
| Hinge Corners | Square |
