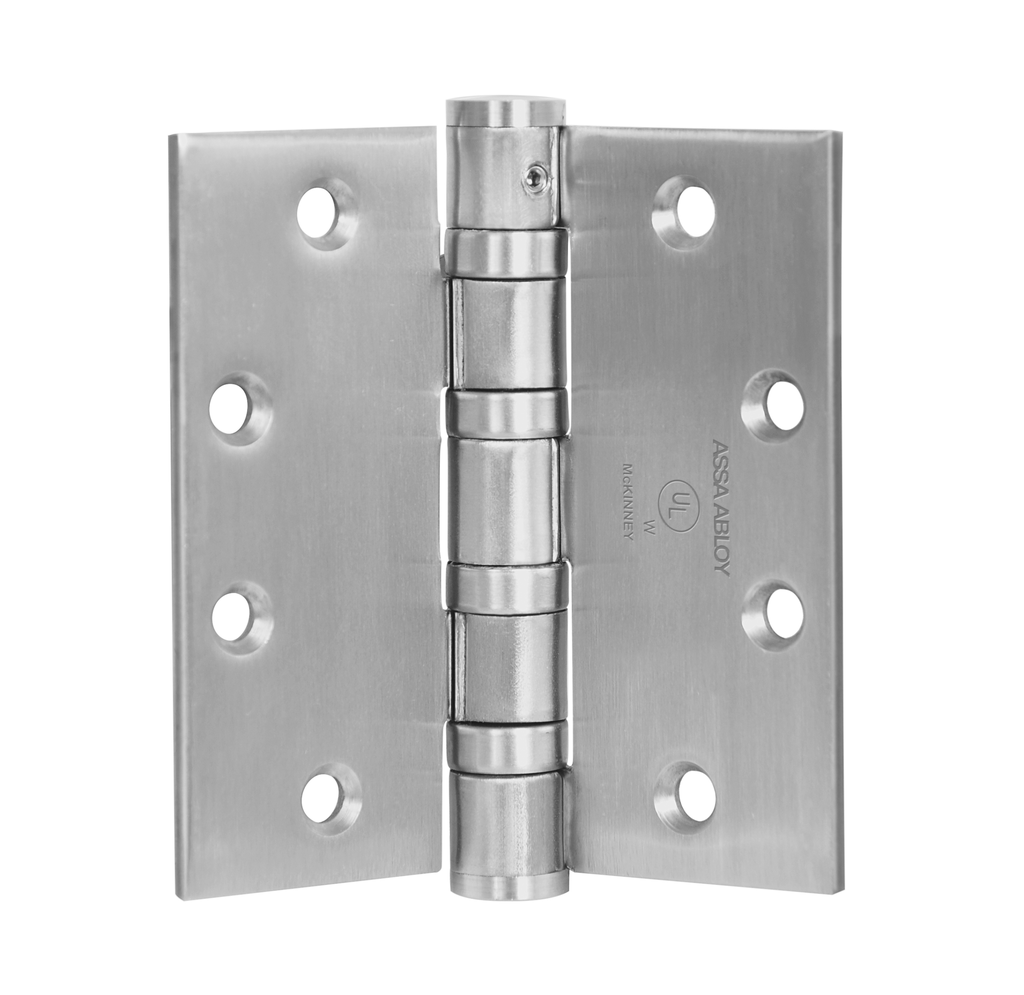

McKinney T4A3386 NRP 4-1/2" x 4-1/2" Bearing Hinge
McKinney T4A3386 NRP 4-1/2" x 4-1/2" Bearing Non Ferrous Hinge, 5 Knuckle, Full Mortise with plated finish. Hinges are priced as Each.
Lead Time: 1-4 Days
McKinney T4A3386 NRP 4-1/2" x 4-1/2" Bearing Non Ferrous Hinge, 5 Knuckle, Full Mortise with plated finish
Oil Impregnated Bearing (TA Prefix)
One piece, non-ferrous, and self-lubricating bearings ensure even longer-lasting wear and resistance to clogging, corrosion, and hinge failure.
Hinges are for use on high traffic in commercial construction. Hinges are furnished with All Wood Screws (1 1/4" x 12 FPHW) and All Machine Screws (1/2" x 12-24 FPHM) Non Rising Stainless Steel Pin with Button Tips. Commercial Grade Hinges are .180 thickness with template screw hole pattern.
NRP (Non Removable Pin) is a set screw driven into the barrel of the hinge that is inaccessible when the door is in the closed position.
Hinges are sold as Each
ANSI Number: A2111 (Brass) or A5111 (Stainless Steel)
**** Please Note - Brass based material is not approved for fire rated doors, only the US32D Stainless Steel finish is approved for Fire Rated Doors. ****
| General - US Finishes | US26D - Satin Chrome or 630 - Satin Stainless Steel/ US32D or US10 - Satin Bronze or US10B - Oil Rubbed Bronze |
| Brand | McKinney |
| Hinge Height | 4.5" Hi |
| Hinge Width | 4.5" Wi |
| Hinge Grade/Thickness | Heavy Wt .180 to .190 |
| Hinge Type | Full Mortise |
| Hinge Options | Ball Bearing, NRP (Non Removable Pin) |
| Base Material | Stainless Steel, Brass |
| Hinge Corners | Square |
