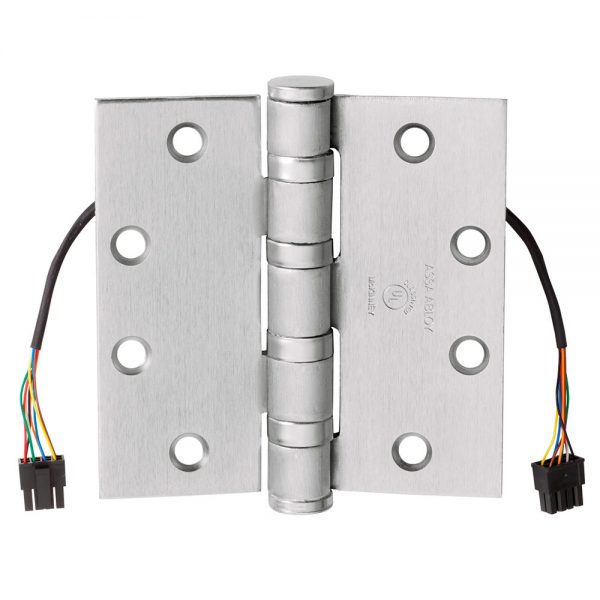

McKinney T4A3786 QC12 5" x 4-1/2" ElectroLynx Electric Hinge
McKinney T4A3786 QC12 5" x 4-1/2" ElectroLynx Electric Hinge, 5 Knuckle, Full Mortise with plated finish. Hinges are priced as Each.
Lead Time: 1-4 Days
McKinney T4A3786 QC12 5" x 4-1/2" ElectroLynx Electric Hinge, 5 Knuckle, Full Mortise with plated finish
**** Note: This is intended to be used when transferring power to an ASSA brand Exit Device ****
McKinney’s ElectroLynx Quick Connect electrified hinge offers the perfect solution for door openings that use electrified hardware. Installer-friendly “plug and play” ElectroLynx® connectors take the guesswork out of wiring and offers an quick method for connecting power from the source through the hinge to the electrified hardware.
Each hinge features concealed plug connectors that eliminate the need for separate or exposed wiring. Standard connectors make installation quick and simple. Brass eyelets add protection and durability.
McKinney electric hinges are UL listed, and may be used on fire rated doors up to 3 hours.
For 4 amp continuous @ 24 volts AC or DC per circuit, 28 gauge multi-strand wires are used. A pigtail is provided for connection to the source wiring
An 8 position connector is used for QC2, QC4, QC6 and QC8 wire hinges. An 8 position and a 4 position connector is used for QC12 wire hinges.
QC12 is 12 Wires, 6 Circuits
Oil Impregnated Bearing (TA Prefix)
One piece, non-ferrous, and self-lubricating bearings ensure even longer-lasting wear and resistance to clogging, corrosion, and hinge failure.
Hinges are for use on high traffic in commercial construction. Hinges are furnished with All Wood Screws (1 1/4" x 12 FPHW) and All Machine Screws (1/2" x 12-24 FPHM) Non Rising Steel Pin with Button Tips. Commercial Grade Hinges are .190 thickness with template screw hole pattern.
Hinges are sold as Each
ANSI Number: A8111
| General - US Finishes | US26D - Satin Chrome or BSP - Black Suede Power Coat |
| Brand | McKinney |
| Hinge Height | 5.0" Hi |
| Hinge Width | 4.5" Wi |
| Hinge Grade/Thickness | Heavy Wt .180 to .190 |
| Hinge Type | Electric Hinge, Full Mortise |
| Hinge Options | Ball Bearing |
| Electric Hinge Options | 12 Wire, QC12 - Electrolynx |
| Base Material | Steel |
| Hinge Corners | Square |
