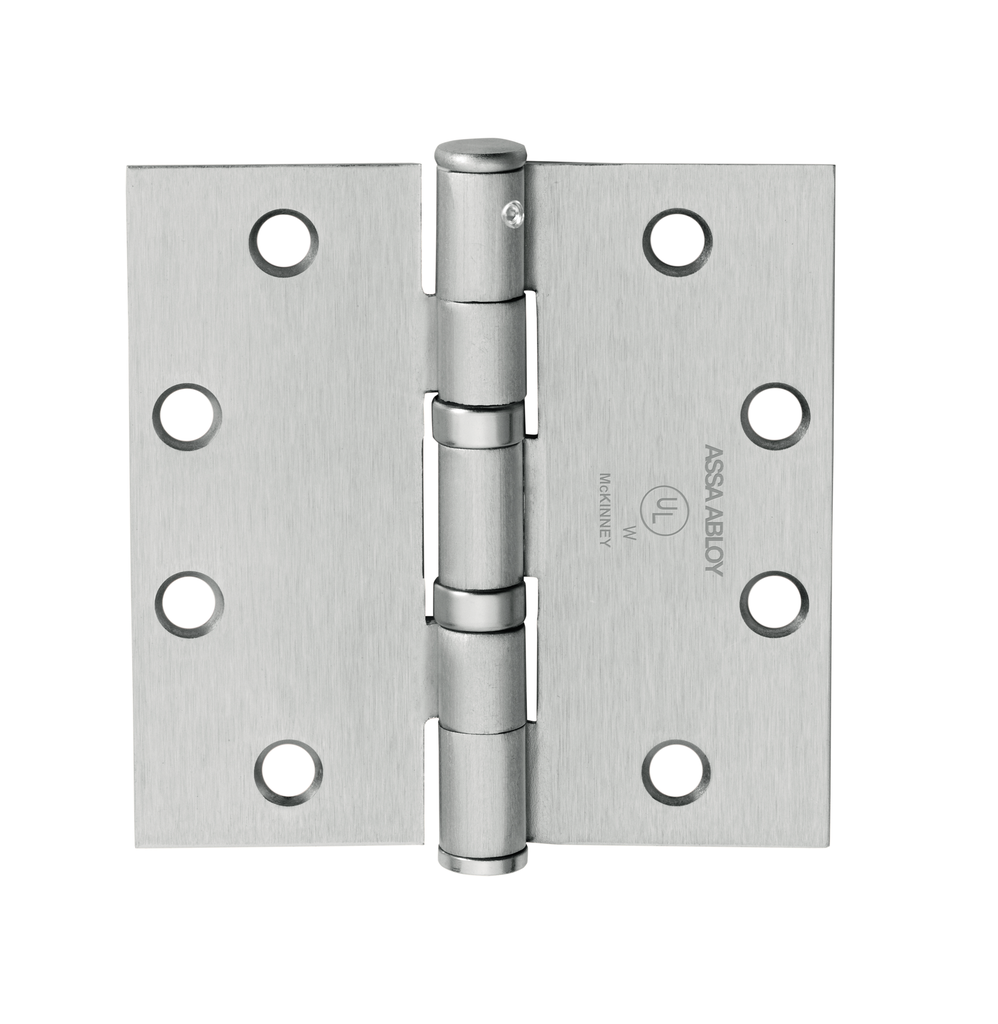

McKinney TA2714 NRP 4.5" x 4.5" Ball Bearing Hinge
McKinney TA2714 NRP 4-1/2" x 4-1/2" Bearing Steel Hinge, 5 Knuckle, Full Mortise with plated finish. Hinges are priced as Each. Lead Time: 1-4 Days
McKinney TA2714 NRP 4-1/2" x 4-1/2" Bearing Steel Hinge, 5 Knuckle, Full Mortise with plated finish
Oil Impregnated Bearing (TA Prefix)
One piece, non-ferrous, and self-lubricating bearings ensure even longer-lasting wear and resistance to clogging, corrosion, and hinge failure.
Hinges are for use on average traffic in commercial construction. Hinges are furnished with All Wood Screws (1 1/4" x 12 FPHW) and All Machine Screws (1/2" x 12-24 FPHM) Non Rising Steel Pin with Button Tips. Commercial Grade Hinges are .134 thickness with template screw hole pattern. NRP (Non Removable Pin) is a set screw driven into the barrel of the hinge that is inaccessible when the door is in the closed position.
Hinges are sold as Each
ANSI Number: A8112
Understanding NRP Hinges
The NRP (Non-Removable Pin) feature is a crucial innovation in the world of door hardware. Here's why it's an essential aspect of secure door installations:
-
Enhanced Security:
The primary purpose of the NRP is to prevent unauthorized removal of door hinges from the outside. This is vital for exterior doors or any doors where security is a concern. The non-removable pin ensures that even if someone tries to tamper with the hinges, they can't simply remove the pin and detach the door. -
Optimal for Outward Swinging Doors:
Many commercial and residential doors swing outward, which means the hinge pins are accessible from outside. This makes them vulnerable to intruders. The NRP feature effectively mitigates this risk by securing the hinge pin. -
Durability and Peace of Mind:
With the NRP option, door users can enjoy greater peace of mind. The pin is designed to withstand tampering, offering long-term durability and reliability without compromising on the aesthetics or functionality of the door.
By opting for hinges with an NRP feature, you ensure a higher level of security that safeguards against forced entries through hinge manipulation.
When exploring these options, consider the specific requirements of your project, whether it's for residential or commercial use. Each of these types
| General - US Finishes | US26D - Satin Chrome or US15 - Satin Nickel or US3 - Polished Brass or US4 - Satin Brass or US10 - Satin Bronze or US10A - Oil Rubbed Bronze or US10B - Oil Rubbed Bronze or US10BE - Oil Rub Bronze Equal or USP - Prime Painted |
| Brand | McKinney |
| Hinge Height | 4.5" Hi |
| Hinge Width | 4.5" Wi |
| Hinge Grade/Thickness | Standard Wt .119 to .146 |
| Hinge Type | Full Mortise |
| Hinge Options | NRP (Non Removable Pin) |
| Base Material | Steel |
