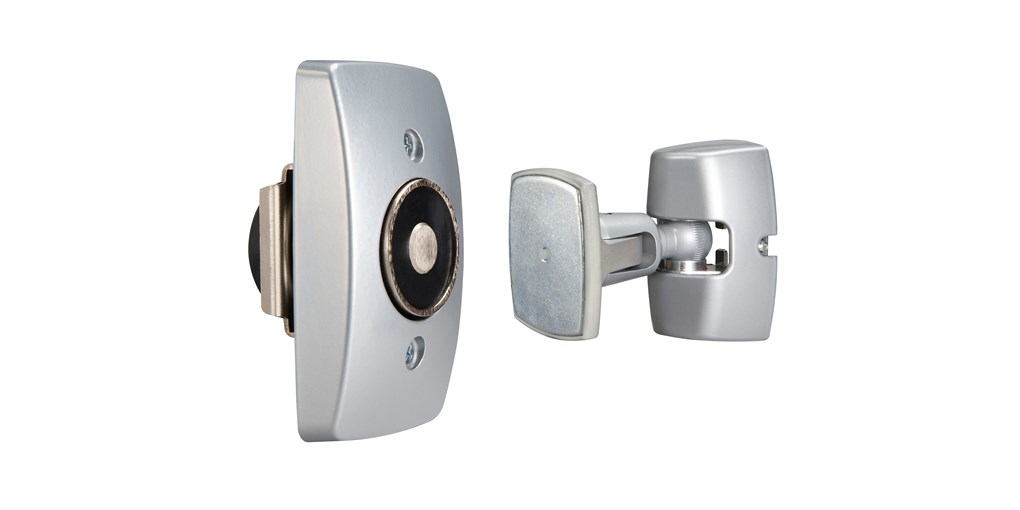

Rixson Wall Mounted Adjustable Magnetic Release 994M

Rixson Wall Mounted Adjustable Magnetic Release 994 x 689 (Spray Aluminum)

Product Description & Features:

Total Projection: 3-3/4" (95mm) Adjustable armature rotation up and down, back and forth for better alignment.

Cannot be used with 900 base or spacers. Can be used without adjustment piece making it a model 997

Mounting Requirements: 2" x 4" x 2-1/2" (51 x 102 x 64mm) outlet box

Wall must be properly reinforced and outlet box adequately fastened

Technical Information:

Voltage and Current:
120VAC, 60Hz., .020 amp
24VAC/DC, 60Hz., .020 amp
12VDC, .040 amp

Features:

25 to 40 pounds holding power
Fail-safe operation; power failure releases door to close
Positive release button initiates closing motion
Tri-volt coils on most models see
Spotting template included

Certifications:

All Rixson® electromagnetic door holder/releases are in compliance with ANSI/BHMA 156.15 Standards. See individual products for sub sections.
All units UL/ULC listed
All units listed by California State Fire Marshal

ANSI/C00011

Limited Warranty: Rixson® electromagnetic door holder/releases are warranted for 2 years for defect.

Please request a quote for stronger Holding Forces (50-55 lbs) or optional finishes: 690 Spray Dark Bronze, 691 Spray Light Bronze, 693 Spray Black, or 696 Spray Brass
