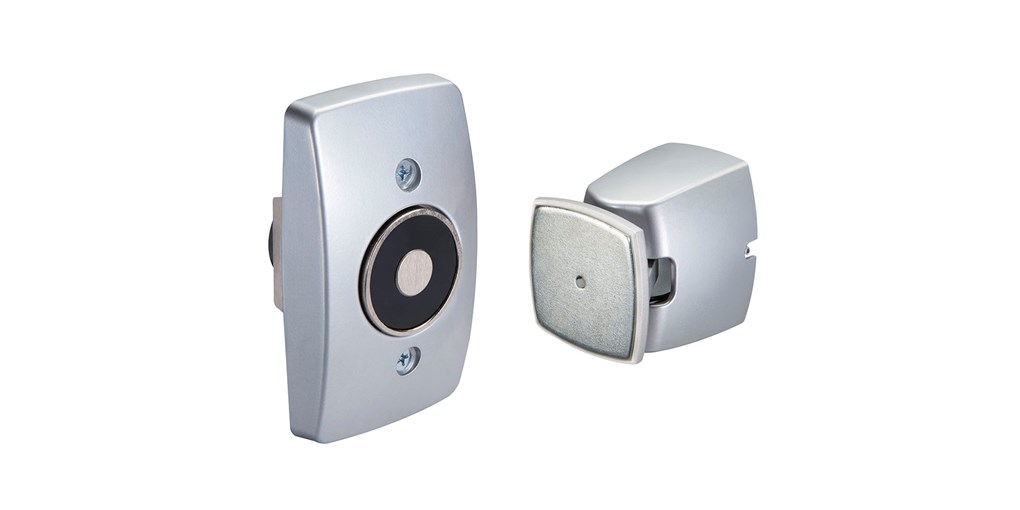

Rixson Wall Concealed Mounted Magnetic Release 998 x 689 (Spray Aluminum Finish)
Product Description & Features:
Total Projection: 3-5/8" (92mm)
Mounting Requirements:2" x 4" x 1-3/4" (51 x 102 x 45mm) outlet box
Wall must be properly reinforced and outlet box adequately fastened Technical Information:
Voltage and Current:
120VAC, 60Hz., .020 amp
24VAC/DC, 60Hz., .020 amp
12VDC, .040 amp
Features:
25 to 40 pounds holding power
Fail-safe operation; power failure releases door to close
Positive release button initiates closing motion
Tri-volt coils on most models see
Spotting template included
Certifications:
All Rixson® electromagnetic door holder/releases are in compliance with ANSI/BHMA 156.15 Standards. See individual products for sub sections.
All units UL/ULC listed
All units listed by California State Fire Marshal
ANSI/C00011
Limited Warranty: Rixson® electromagnetic door holder/releases are warranted for 2 years for defect.
Please request a quote for stronger Holding Forces (50-55 lbs) or optional finishes: 690 Spray Dark Bronze, 691 Spray Light Bronze, 693 Spray Black, or 696 Spray Brass
| Brand | Rixson |
| Voltage | Tri Volt |
